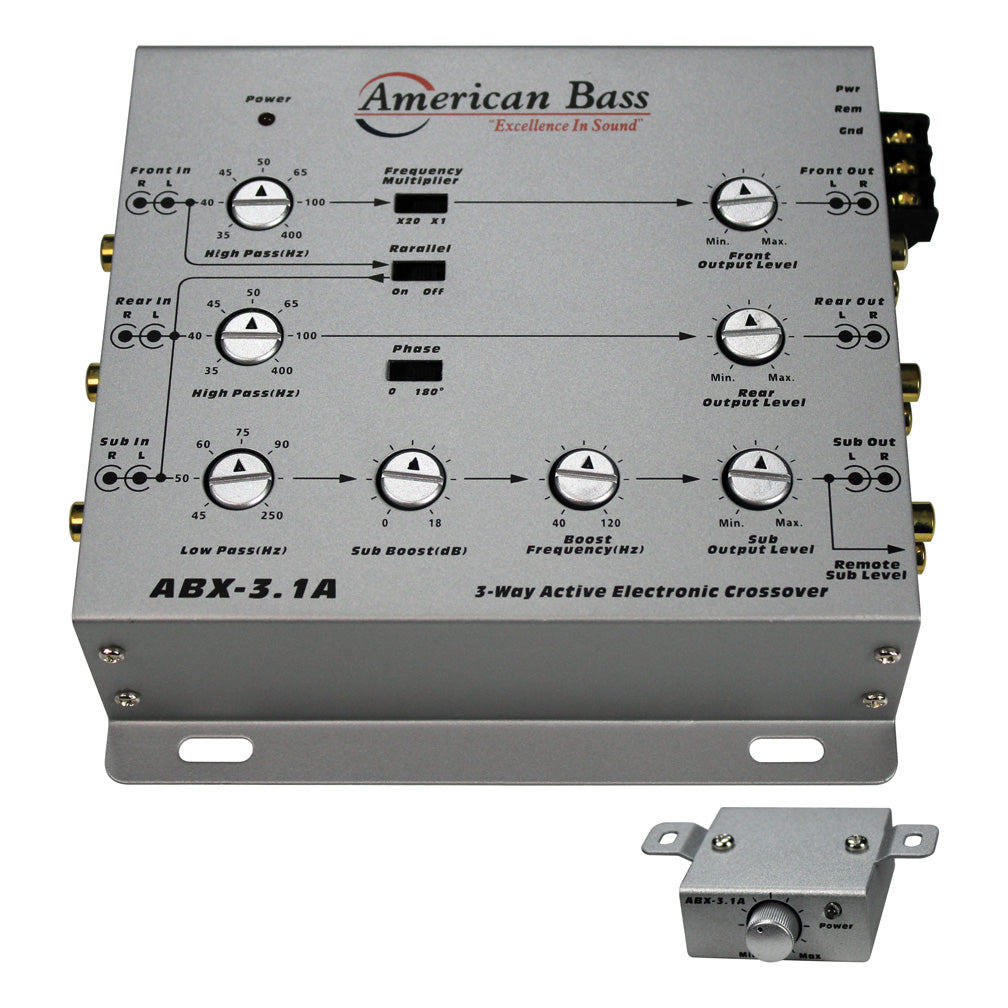

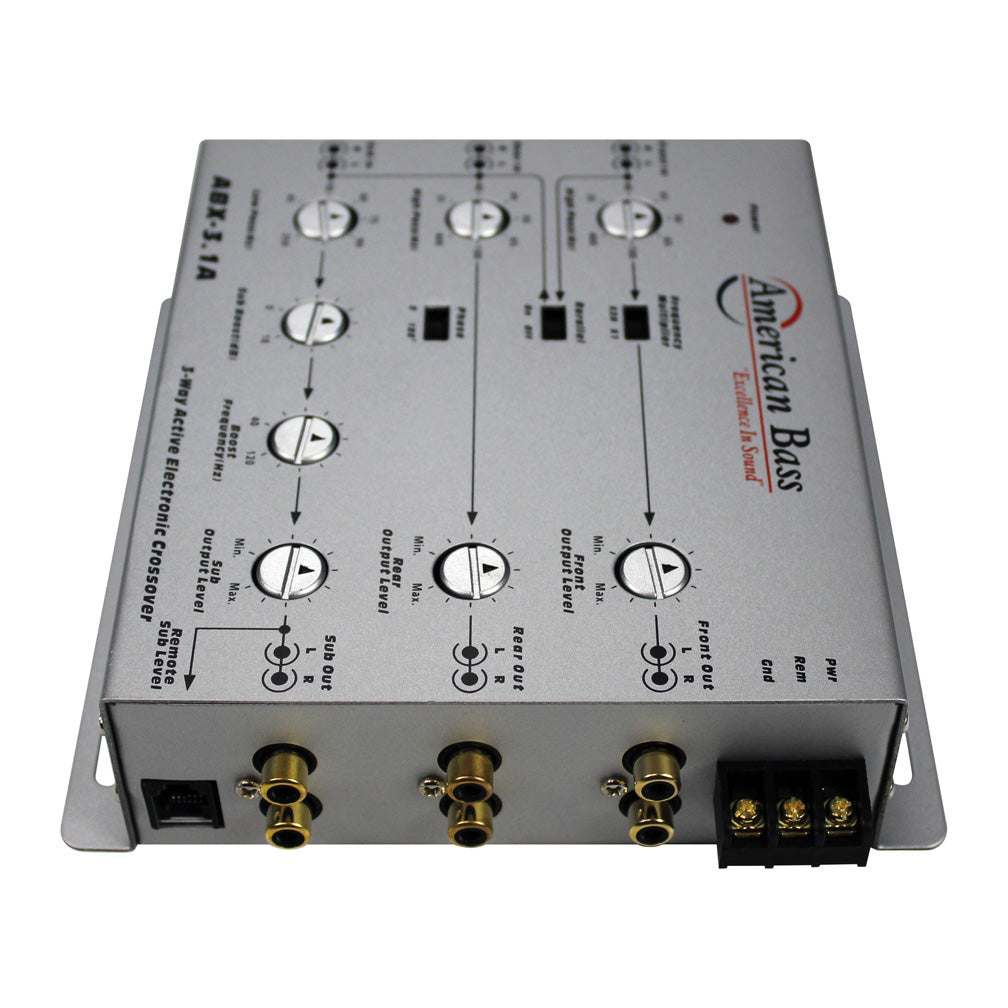

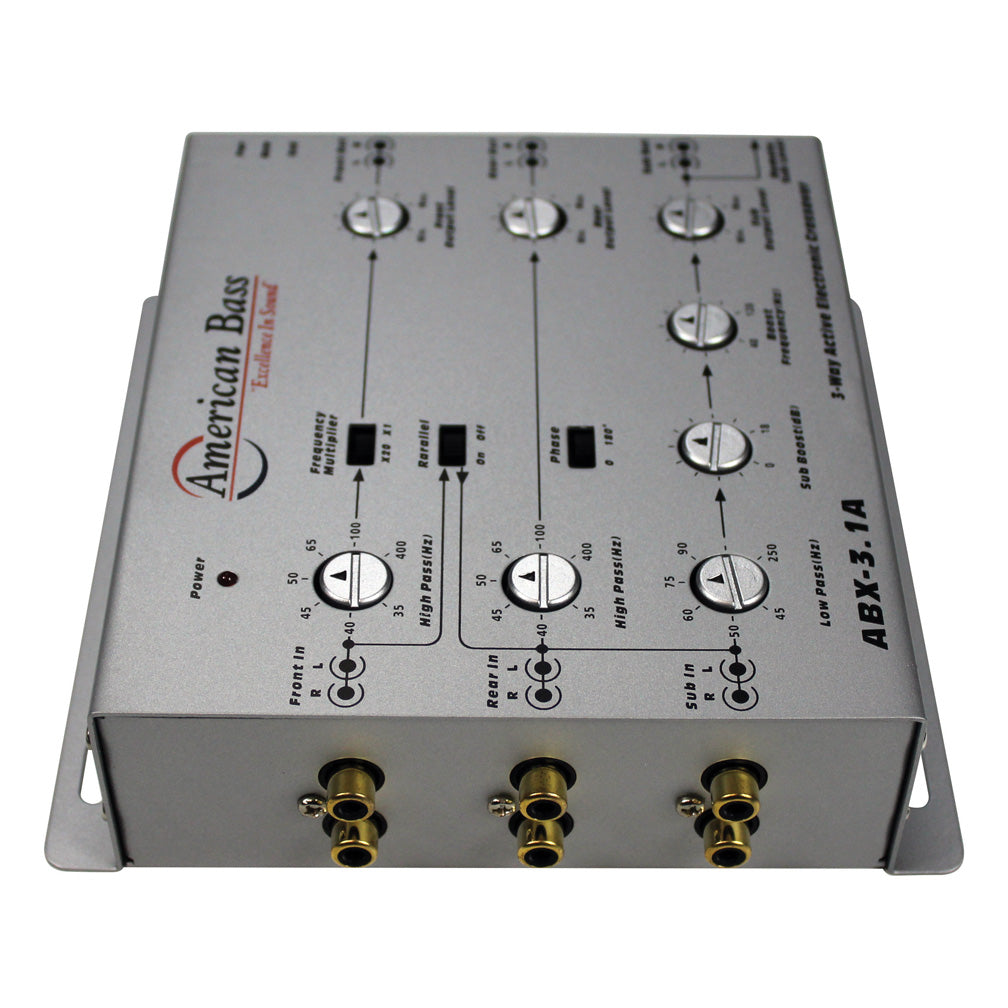

American Bass ABX31A 3 Way Active Digital Crossover

American Bass

  • $48.42
FREE Shipping (to the 48 us states)

Only 0 left!
Will be in stock after


FRONT HIGH PASS (x1): 35Hz-400Hz (-18dB/OCT)

(x20): 700Hz-8KHz (-18dB/OCT)

REAR HIGH PASS 35Hz-400Hz (-18dB/OCT)

SUBWOOFER LOW PASS 45Hz-250Hz (-18dB/OCT)

OUTPUTS LEVEL 8V PEAK

FREQUESNCY RESPONSE 10-50KHz(-3dB)

S/N RATIO 110dB

THD 0.01%

INPUT IMPEDANCE 20K OHMS

OUTPUT IMPEDANCE LESS THAN 150 OHMS

CHANNEL SEPARATION MORE THAN 70dB

SUBSONIC FILTER ON/OFF WITH -24dB/OCT. AT 25 Hz

X-OVER SLOPE LOW PASS/HIGH PASS: -18BD/OCT

POWER SOURCE 11-15 VOLTS DC NEGATIVE GROUND

Brand NEW
