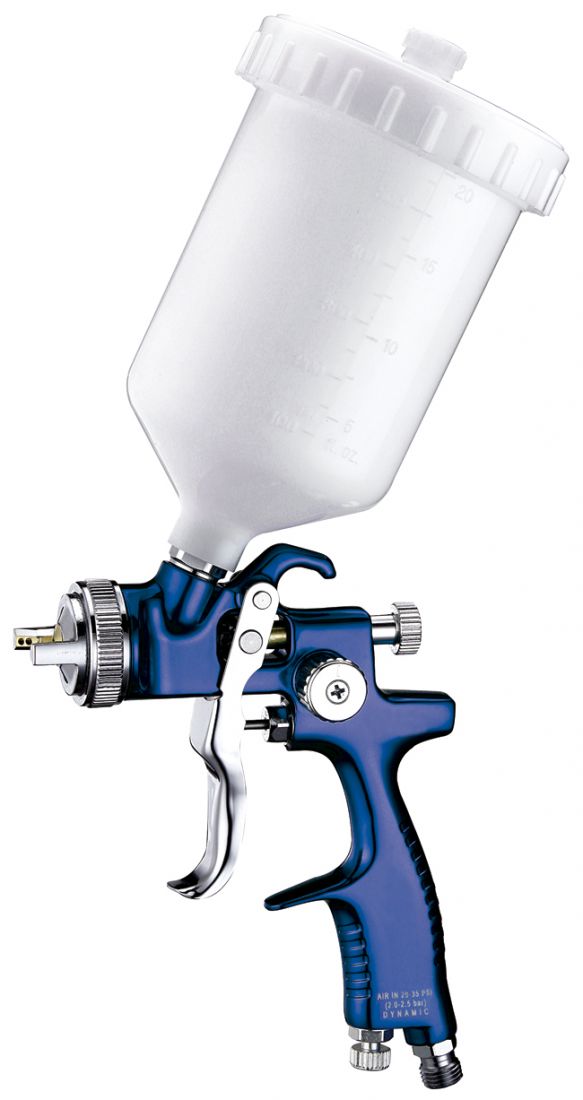

Astro EUROHE103 EuroPro High Efficiency Spray Gun 1.3mm Nozzle Plastic Cup
Astro EUROHE103 EuroPro High Efficiency Spray Gun 1.3mm Nozzle Plastic Cup
Regular price
$96.81
Regular price
Sale price
$96.81
Unit price
/
per
FREE Shipping
Out of stock
Couldn't load pickup availability
EuroPro High Efficiency/High Transfer Spray Gun with 1.3mm Nozzle & Plastic Cup
Nozzle Size: 1.3mm
Cup Capacity: 600ml
Operation Pressure: 29psi
Weight: 0.7lbs. (325g)
Gun Dimensions W x H: 7" x 5-34" (175mm x 145mm)
Avg. Air Consumption: 10.5 - 12.5cfm
Air Inlet Thread NPT: ¼"
Required Compressor: 3 - 5hp
Max. Pattern at 6" to 8" Distance: 11" - 13" (280-330mm)
Air Hose I.D. Size: 6 - 8mm
Compatible Adapters:
3M Adapter: 9, 16016
Norton Paint System Adapter: 21664 9A
DeVilBiss DeKups: DPC-10
SATA's Adapter #13 Part #150136
DURABLE & LIGHTWEIGHT
Forged body provides longer tool life
Anodized body for corrosion protection
Slick finish for faster & easier cleaning
Internal coated passages
Stainless steel needle and fluid tip
Lightweight: 325 grams (0.7 Lbs)
HIGH EFFICIENCY
Unique pattern designed for great coverage, optimal overlapping
Low overspray (bounce back)
Great transfer efficiency
Superior atomization
Innovative High Efficiency (HE) advanced technology
QUICK THREAD TECHNOLOGY
1 Turn to lock/unlock the air cap
3 Turns to lock/unlock the fluid tip
Wide threads for easy cleaning
M16*P1.5 female thread fluid joint
Compatible with most traditional and disposable cup systems
SMOOTH OPERATION
Soft trigger pull to reduce fatigue
Precise lubricated adjustment knobs for better control
Innovative CNC machining to avoid the need for gaskets behind the fluid tip
Nozzle Size: 1.3mm
Cup Capacity: 600ml
Operation Pressure: 29psi
Weight: 0.7lbs. (325g)
Gun Dimensions W x H: 7" x 5-34" (175mm x 145mm)
Avg. Air Consumption: 10.5 - 12.5cfm
Air Inlet Thread NPT: ¼"
Required Compressor: 3 - 5hp
Max. Pattern at 6" to 8" Distance: 11" - 13" (280-330mm)
Air Hose I.D. Size: 6 - 8mm
Compatible Adapters:
3M Adapter: 9, 16016
Norton Paint System Adapter: 21664 9A
DeVilBiss DeKups: DPC-10
SATA's Adapter #13 Part #150136
DURABLE & LIGHTWEIGHT
Forged body provides longer tool life
Anodized body for corrosion protection
Slick finish for faster & easier cleaning
Internal coated passages
Stainless steel needle and fluid tip
Lightweight: 325 grams (0.7 Lbs)
HIGH EFFICIENCY
Unique pattern designed for great coverage, optimal overlapping
Low overspray (bounce back)
Great transfer efficiency
Superior atomization
Innovative High Efficiency (HE) advanced technology
QUICK THREAD TECHNOLOGY
1 Turn to lock/unlock the air cap
3 Turns to lock/unlock the fluid tip
Wide threads for easy cleaning
M16*P1.5 female thread fluid joint
Compatible with most traditional and disposable cup systems
SMOOTH OPERATION
Soft trigger pull to reduce fatigue
Precise lubricated adjustment knobs for better control
Innovative CNC machining to avoid the need for gaskets behind the fluid tip
