Astro Tool ADR14 XL Blind Rivet Adapter Kit 1/4In Capacity
Astro Tool ADR14 XL Blind Rivet Adapter Kit 1/4In Capacity
Regular price
$73.46
Regular price
Sale price
$73.46
Unit price
/
per
FREE Shipping
Out of stock
Couldn't load pickup availability

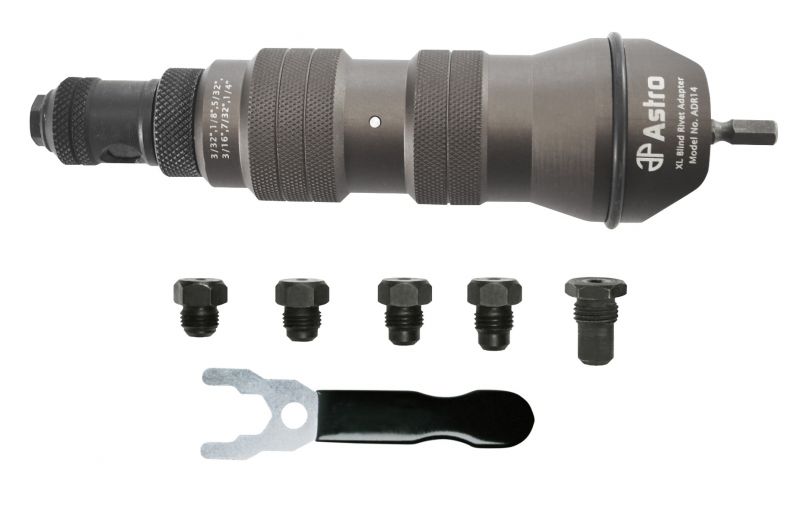

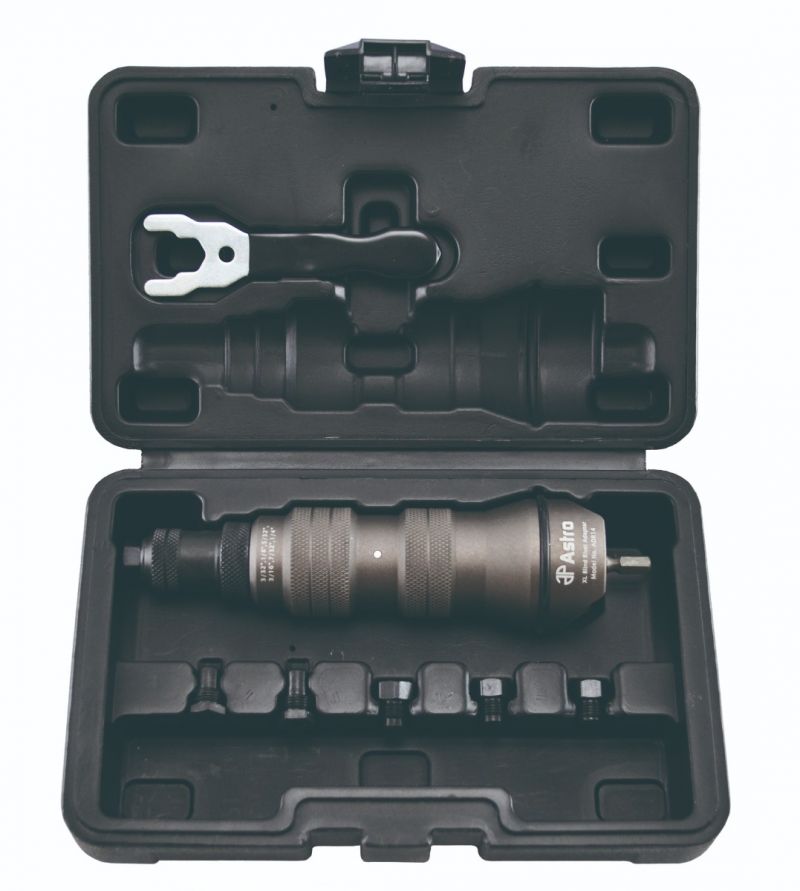

XL Blind Rivet Adapter Kit - 1/4" Capacity
Easily convert your cordless, pneumatic or corded drill into a power pop riveter
Includes nose pieces for 3/32", 1/8", 5/32", 3/16", 7/32" and 1/4" for steel, aluminum, copper or up to 7/32" in stainless
CNC machined from solid billet aluminum and features Japanese bearings
Works on up to 0.65" rivet bodies (#8-8 rivets), maximum stroke of 0.7"
Requirements of cordless driving tool:
Adjustable torque setting.
Chuck capacity of hex 6.35 mm (1/4") shank.
Min. 12V for aluminum and steel rivets up to 3/16".
Min. 14.4V for stainless steel rivets up to 3/16" and thru 1/4" in aluminum.
Min. 16V+ for 7/32" in steel and stainless and 1/4" in steel. (1/4" stainless mandrel and body is not recommended and may overheat the tool)
Requirements of electric or pneumatic driving tool:
Chuck capacity of hex 6.35 mm (1/4") shank.
With maximum torque > 190 in/lbs for aluminum and steel rivets up to 3/16" and 7/32" + 1/4" in aluminum.
With maximum torque > 330 in/lbs for stainless steel rivets up to 3/16" and 7/32" + 1/4" in steel.
Easily convert your cordless, pneumatic or corded drill into a power pop riveter
Includes nose pieces for 3/32", 1/8", 5/32", 3/16", 7/32" and 1/4" for steel, aluminum, copper or up to 7/32" in stainless
CNC machined from solid billet aluminum and features Japanese bearings
Works on up to 0.65" rivet bodies (#8-8 rivets), maximum stroke of 0.7"
Requirements of cordless driving tool:
Adjustable torque setting.
Chuck capacity of hex 6.35 mm (1/4") shank.
Min. 12V for aluminum and steel rivets up to 3/16".
Min. 14.4V for stainless steel rivets up to 3/16" and thru 1/4" in aluminum.
Min. 16V+ for 7/32" in steel and stainless and 1/4" in steel. (1/4" stainless mandrel and body is not recommended and may overheat the tool)
Requirements of electric or pneumatic driving tool:
Chuck capacity of hex 6.35 mm (1/4") shank.
With maximum torque > 190 in/lbs for aluminum and steel rivets up to 3/16" and 7/32" + 1/4" in aluminum.
With maximum torque > 330 in/lbs for stainless steel rivets up to 3/16" and 7/32" + 1/4" in steel.
