Audiopipe

Audiopipe 4 Way Crossover 6 ch. Input 8 ch. Output

Audiopipe 4 Way Crossover 6 ch. Input 8 ch. Output

Regular price $93.80
Regular price Sale price $93.80
Sale Sold out
FREE Shipping

37 in stock

4-Way Active Crossover. 15 V Audio Signal Line Driver
6 channels input/8 channels output
Master gain control
Independent gain control per pair of channels
HP/ALL/BP switchable
Mono/Stereo switch
Phase: 0 or 180 out
2/4/6 channel input selector
15 volts RMS line-driver
High/Tweeter: 1KHz - 12KHz @ 12dB/octave
Bandpass channels: Fllor: 40Hz-1KHz, Ceiling: 1KHz-12KHz @ 12dB/octave
Midbass: 40Hz - 90Hz @ 12dB/octave
Subwoofer: 40Hz - 90Hz @ 12dB/octave
Subsonic filter: 10Hz - 30Hz @ 18dB/octave
On/Off switch per pair of outputs for easy fine tuning
Signal to noise ratio: -105dB A-weighted
Total harmonic distortion: <0.04%
Stereo separation: >70dB
Continuously variable crossover frequency with multiplier switch
Separate inputs for front, rear and subwoofer
Front and rear high pass outputs
Non-fade low pass output
Adjustable low pass gain
Subwoofer bass boost

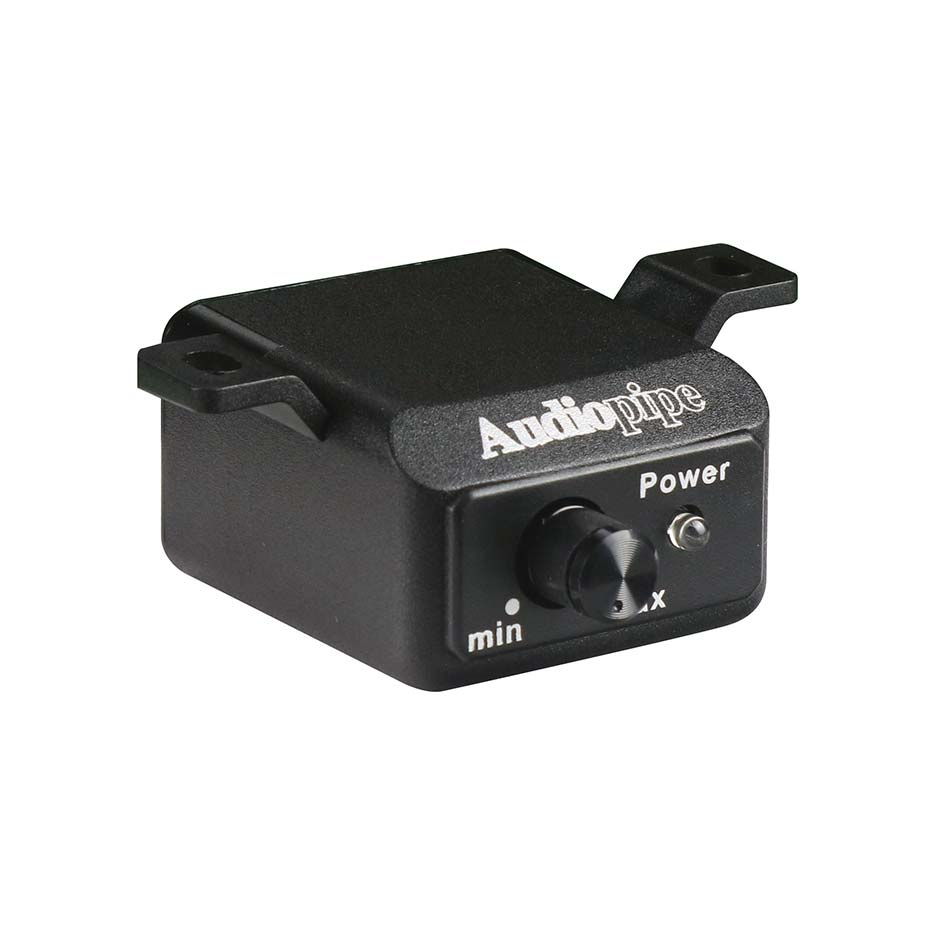

Remote subwoofer level control
Ground loop isolation input circuit
Remote turn-on circuit
Power-on LED
