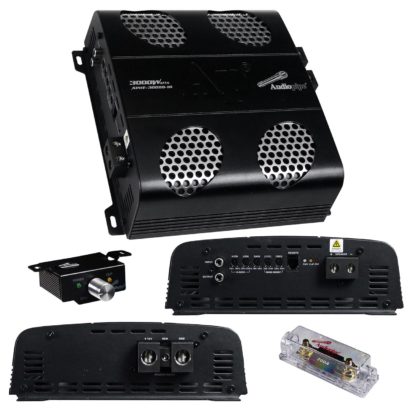

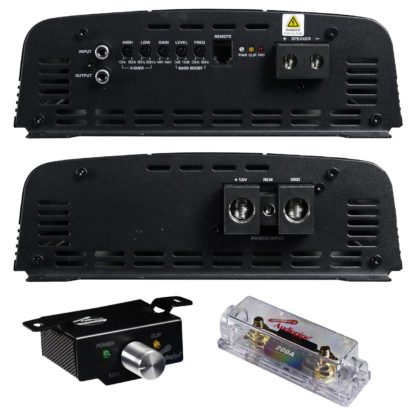

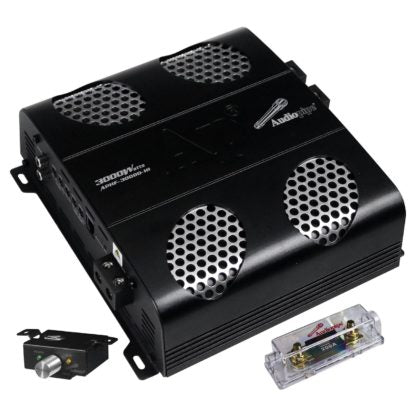

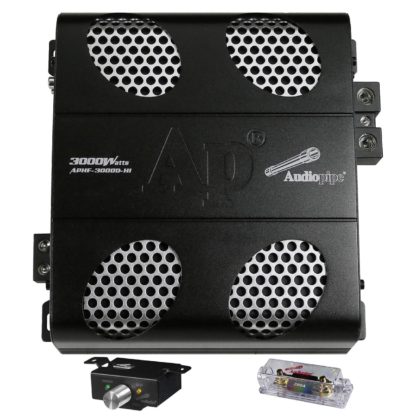

Audiopipe APHF3000DH1 Full Range Class D Monoblock Amplifier, 3000 Watts

audiopipe Full Range Class D Monoblock Amplifier, 3000 Watts

3000 X 1 @ 1 Ohm (14.4v)

1750 X 1 @ 2 Ohms (14.4v)

890 X 1 @ 4 Ohms (14.4v)

Dim (w X H X L) 9″ X 2.9″ X 7.4″

fuse: Inline 200 Amp Fuse

1 Ohm Stable – Class D

Mosfet Power Supply

Frequency Response: 10 Hz – 20 Khz

Input Sensitivity: 0.25v – 4.0v

Subsonic Filter: 10hz – 80hz @ 12 Db

Hi Pass Crossover: 10hz – 80hz (12db/oct)

Low Pass Crossover: 80hz – 20khz (12db/oct)

Bass Boost: 35hz – 90hz (0 – 12db)

Low Level Input

Under/over Voltage Protection

Led Clipping Indicator

Led Protection Indicator

Rca In/output

includes Remote Bass Knob
