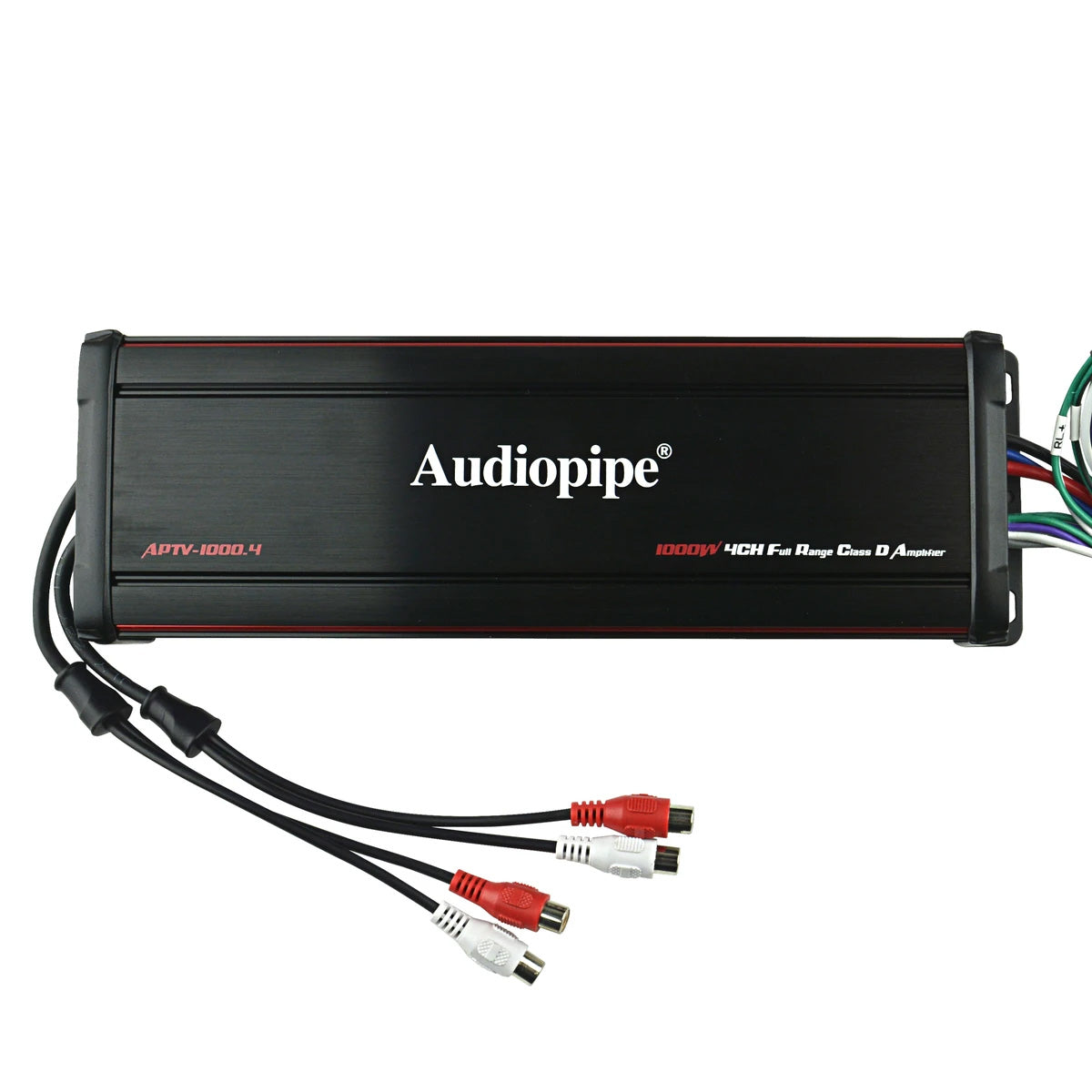

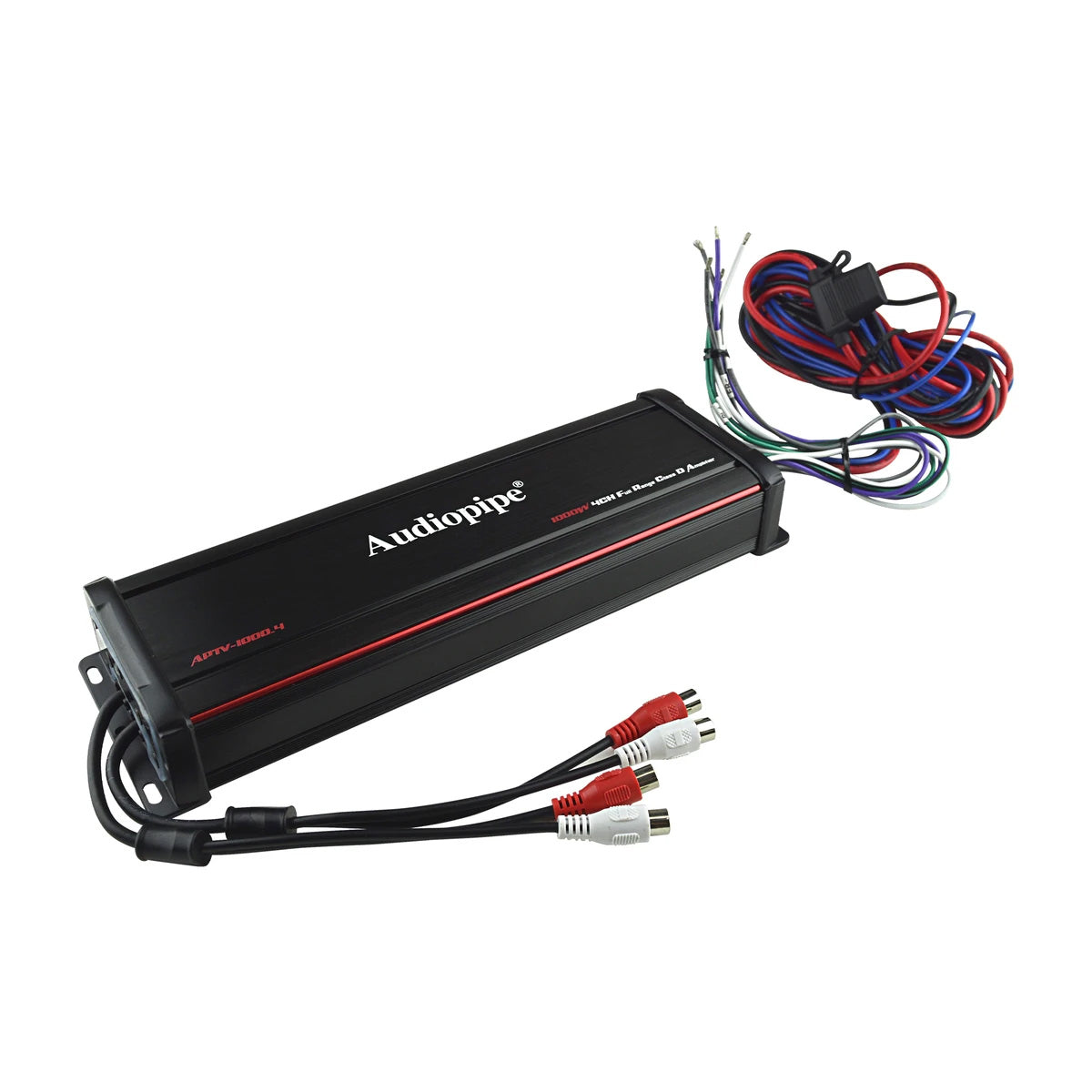

Audiopipe APTV10004 Micro 4 Channel Marine Amplifier, 1000 Watts

150 X 4 @ 2 OHMS
100 X 4 @ 4 OHMS
280 X 2 @ 4 OHMS (BRIDGED)
DIM (WXHXL) 3.5″ X 1.6″ X 11″

IN-LINE FUSE

CLASS D2 OHM STABLE
HIGH PASS CROSSOVER: 40 – 400HZ @ 12DB
LOW PASS CROSSOVER: 40 – 400HZ @ 12DB
WATER RESISTANCE: IPX67
S/N RATIO:> 90DB
THS: <0.08%
FREQUENCY RANGE: 20HZ-20KHZ

ADVANCED FULL RANGE CLASS D AMPLIFIER
FULL RANGE CLASS D USING IR (INTERNATIONAL RECTIFIER) CONTROL CHIPS
SMALL FOOT PRINT
WATERPROOF IP67 RATING
SMD WITH 4 LAYER FIBERGLASS PCB DESIGN
PROTECTION: THERMAL, OVER CURRENT & SHORT
