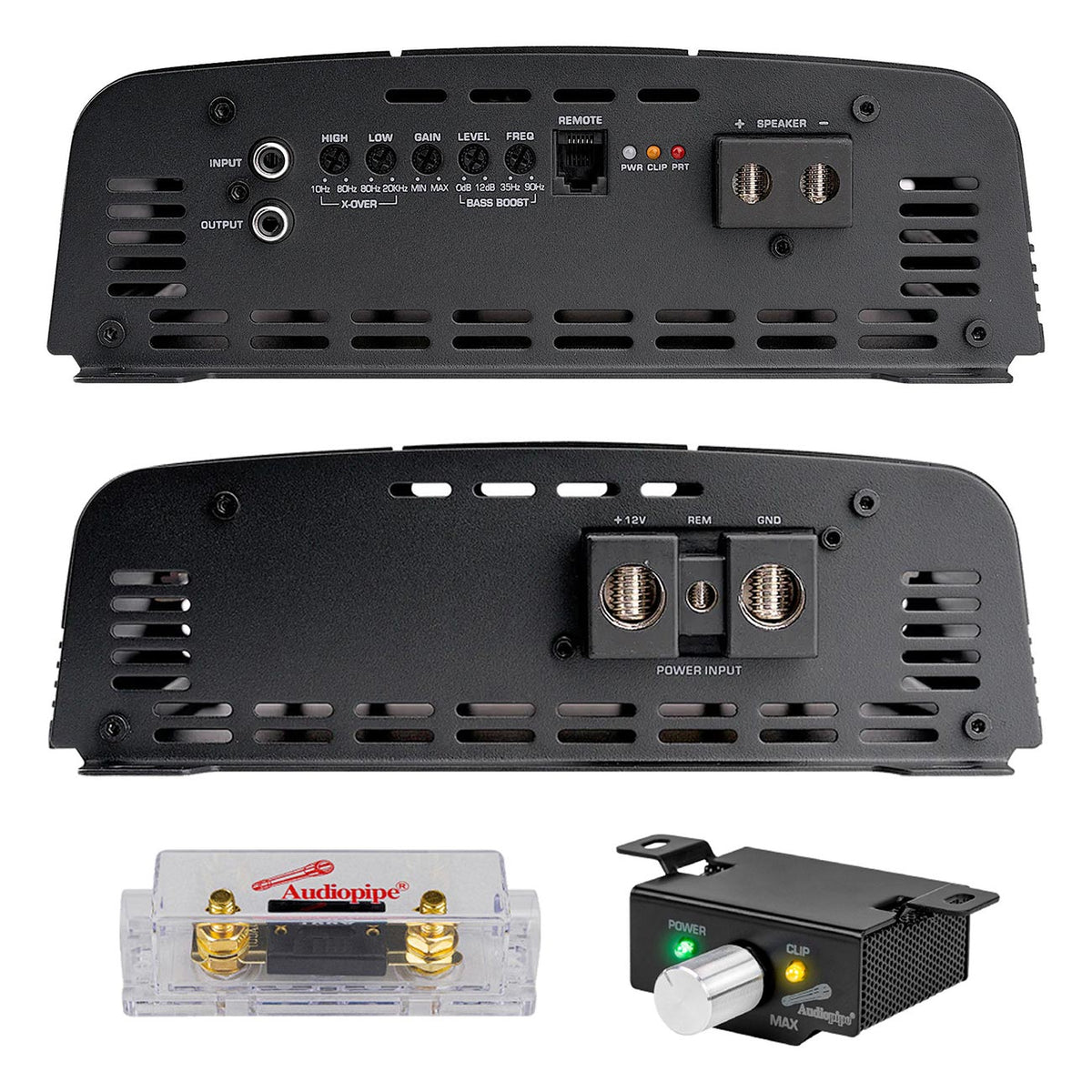

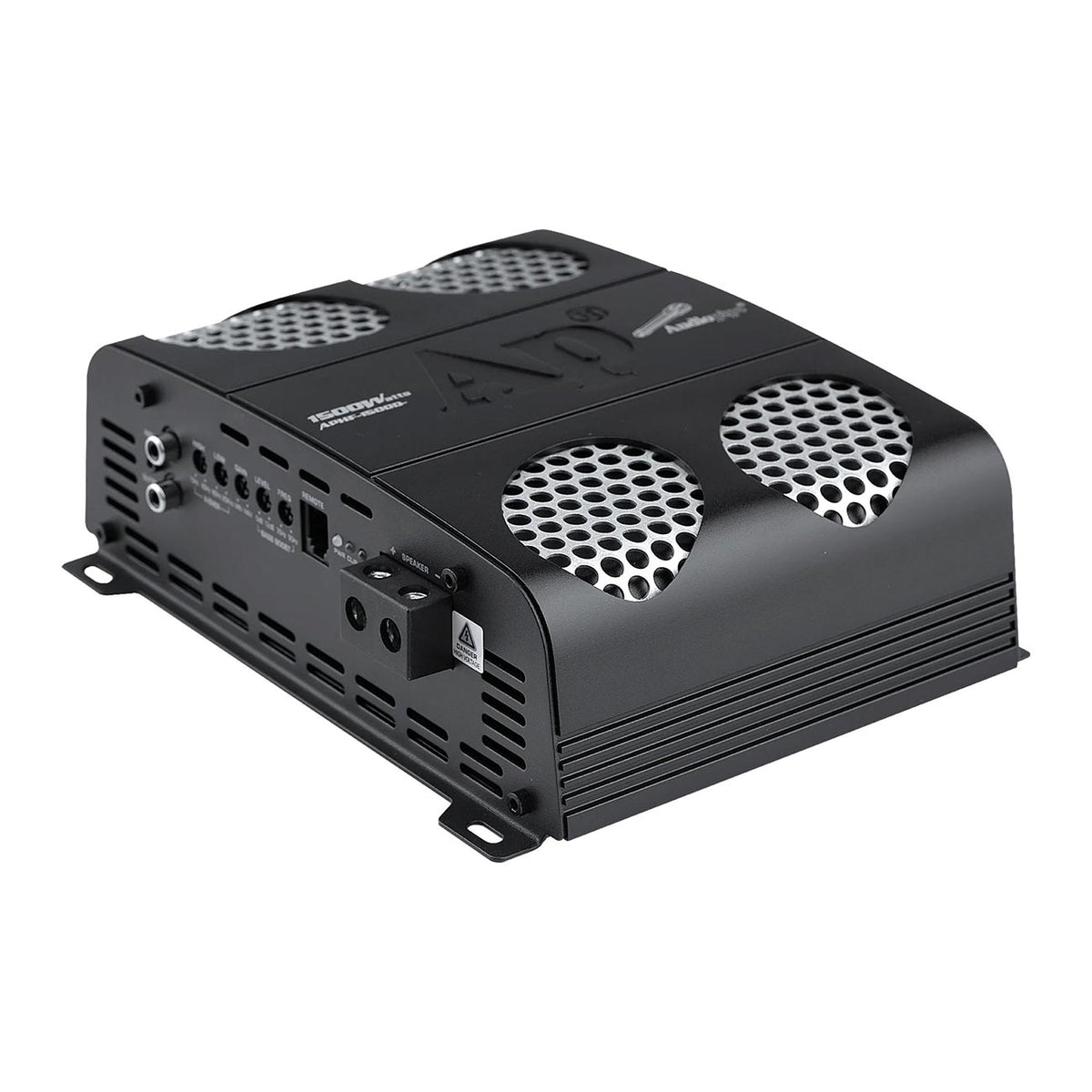

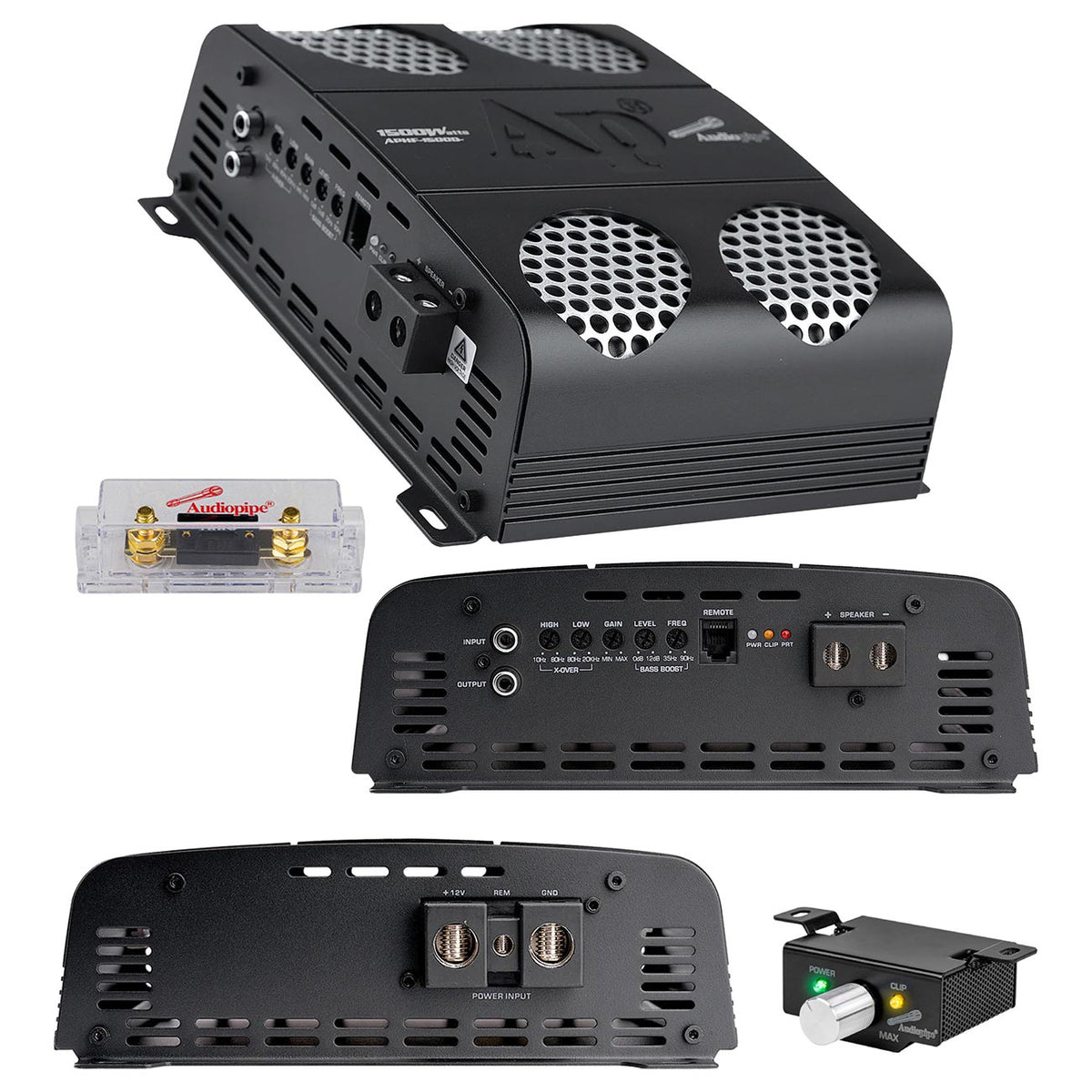

Audiopipe Full Range Class-D Monoblock Amplifier, 1600W RMS
1600 x 1 @ 2 Ohms RMS (14.4v) @ 134A
970 x 1 @ 4 Ohms RMS (14.4v) @ 76A
Dim (W x H x L) 7.4″ x 2.9″ x 5.9″
Fuse: 100A with Fuse Holder Included
Class D
2 Ohm Stable
MOSFET Power Supply
Frequency Response: 10 Hz – 20 kHz
Input Sensitivity: 0.25v – 4.0v
Hi Pass Crossover: 10Hz – 80Hz (12dB/Oct)
Low Pass Crossover: 80Hz – 20kHz (12dB/Oct)
Bass Boost: 35Hz – 90Hz (0 – 12dB)
Under/Over Voltage Protection
LED Clipping Indicator
LED Protection Indicator
RCA In/Output
Includes Remote Bass Knob
