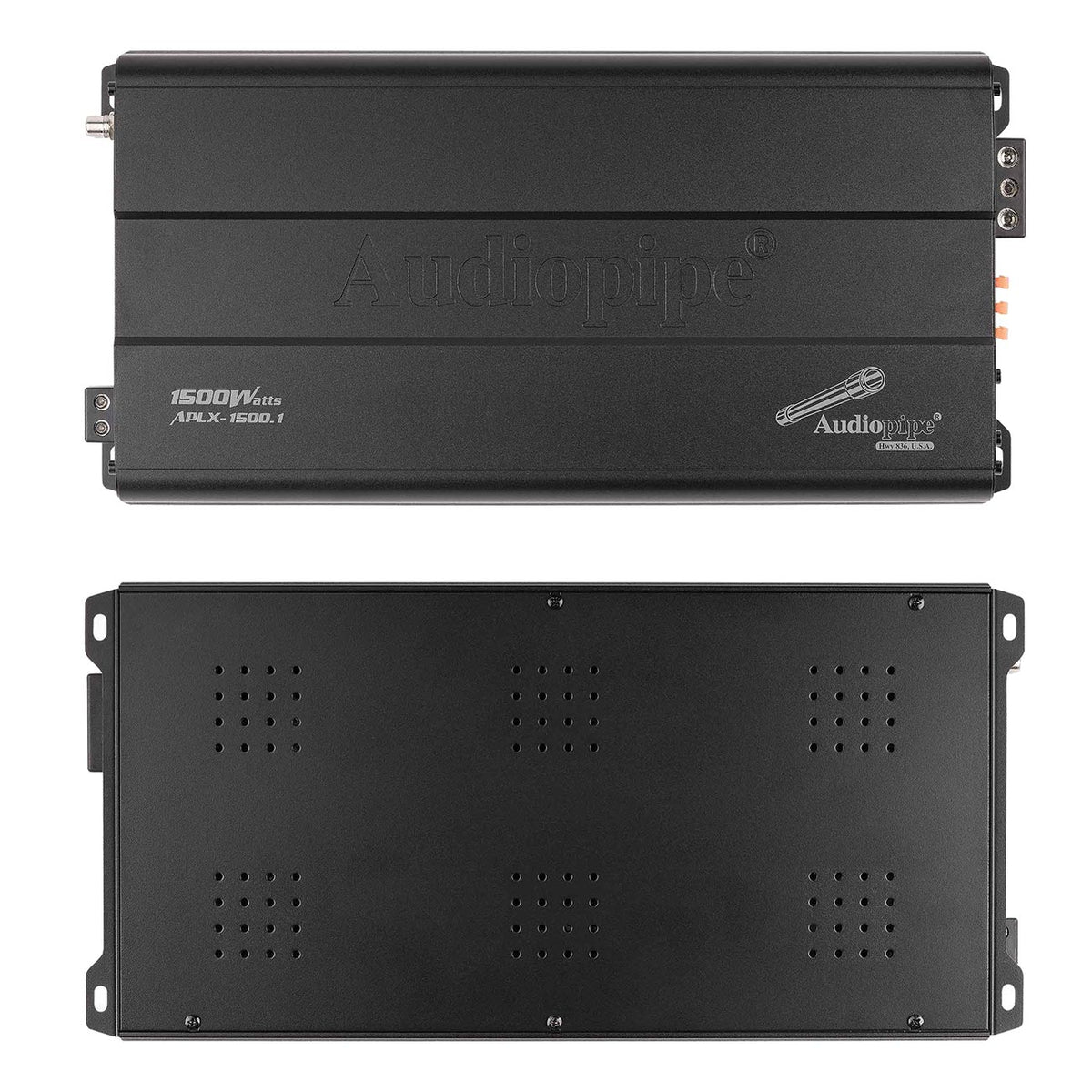

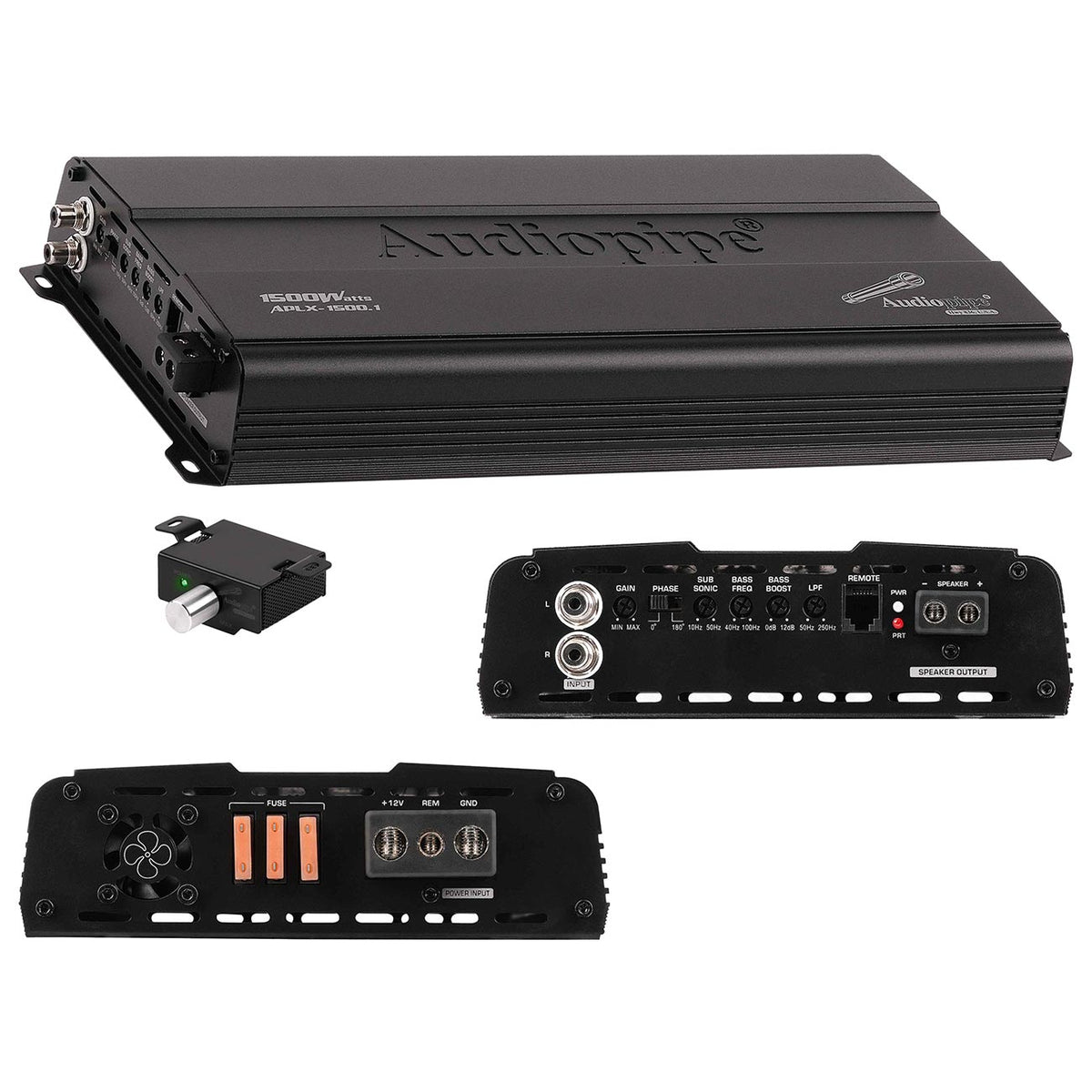

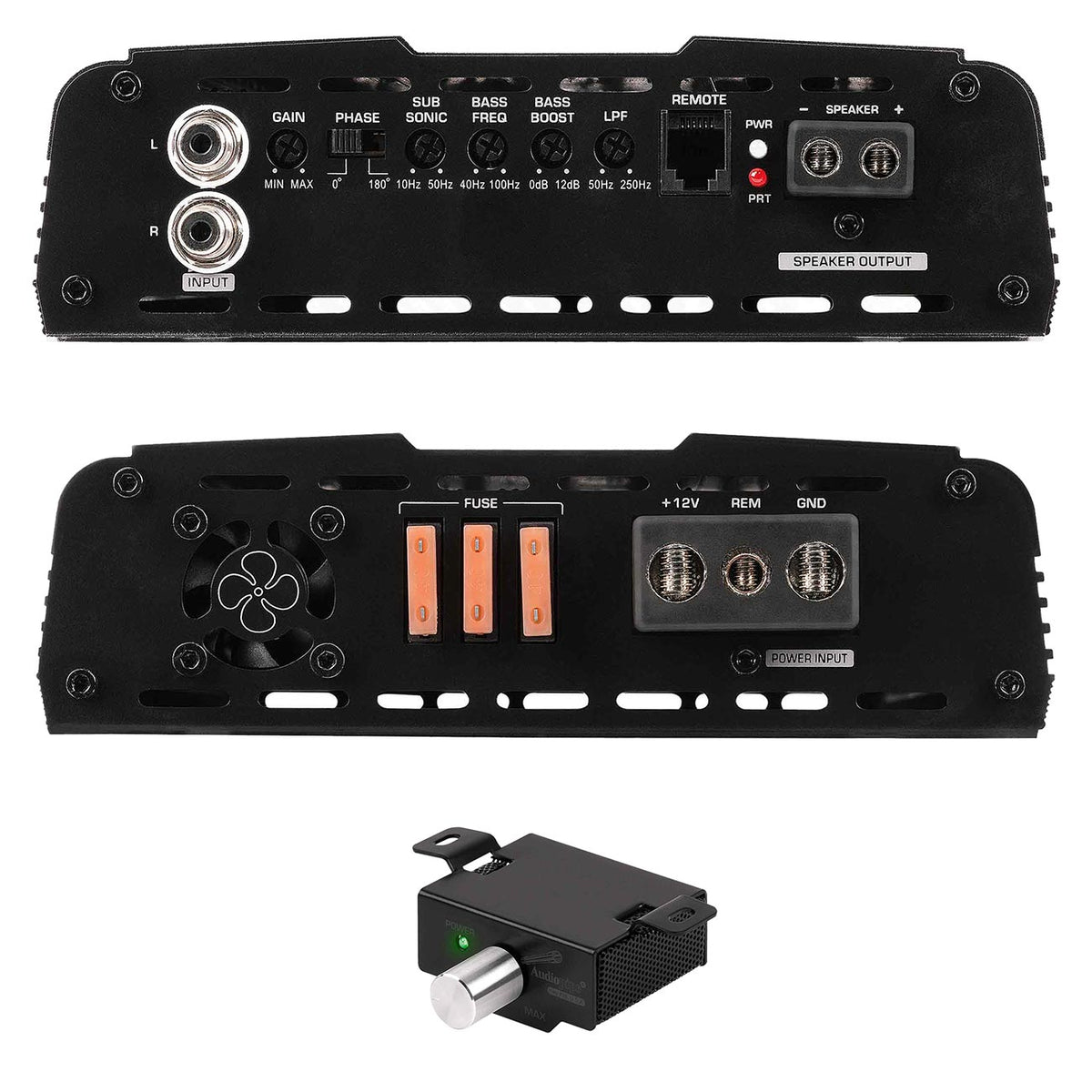

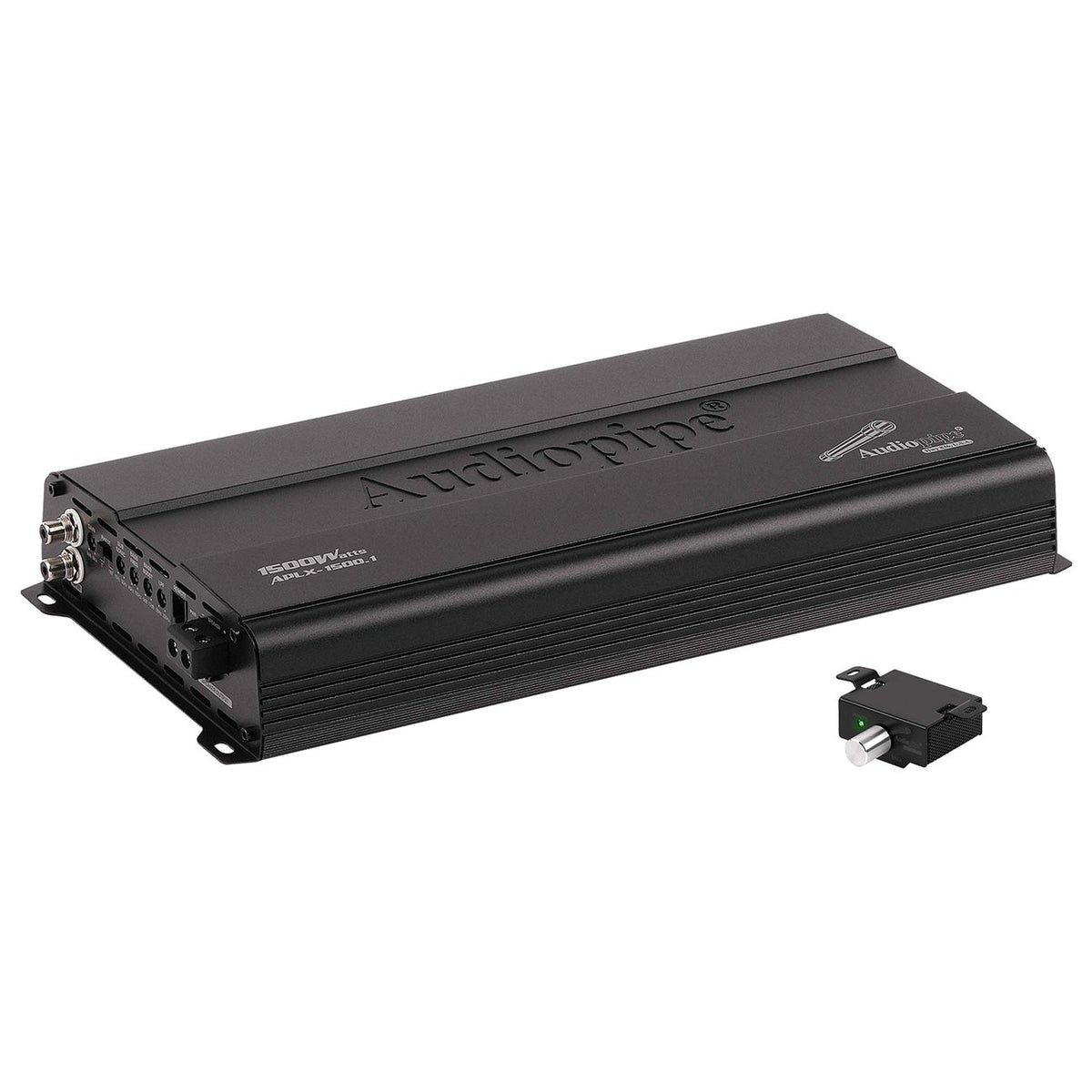

Audiopipe Mini Monoblock Amplifier, 1500W MAX
1 x 1500 RMS @ 1 Ohm
1 x 950 RMS @ 2 Ohm
1 x 560 RMS @ 4 Ohm
Working Voltage: 9 – 16V
(W x H x L) 7.09″ x 2.11″ x 17.6″
Fuse: (3) 40A
Class D
1 Ohm Stable
MOSFET Power Supply
Frequency Response: 10 Hz – 250 Hz
Low Pass Crossover: 50 – 250 Hz
Subsonic Filter: 10 – 50 Hz
Bass Frequency: 40 – 100 Hz
Bass Boost: 0 – 12dB
Phase Control
Gain Control: 0.15 – 6V
THD: ≤0.5%
S/N Ratio: >89 dB
RCA Inputs
Power & Protect LEDs
Remote Bass Control
Fan Cooled
