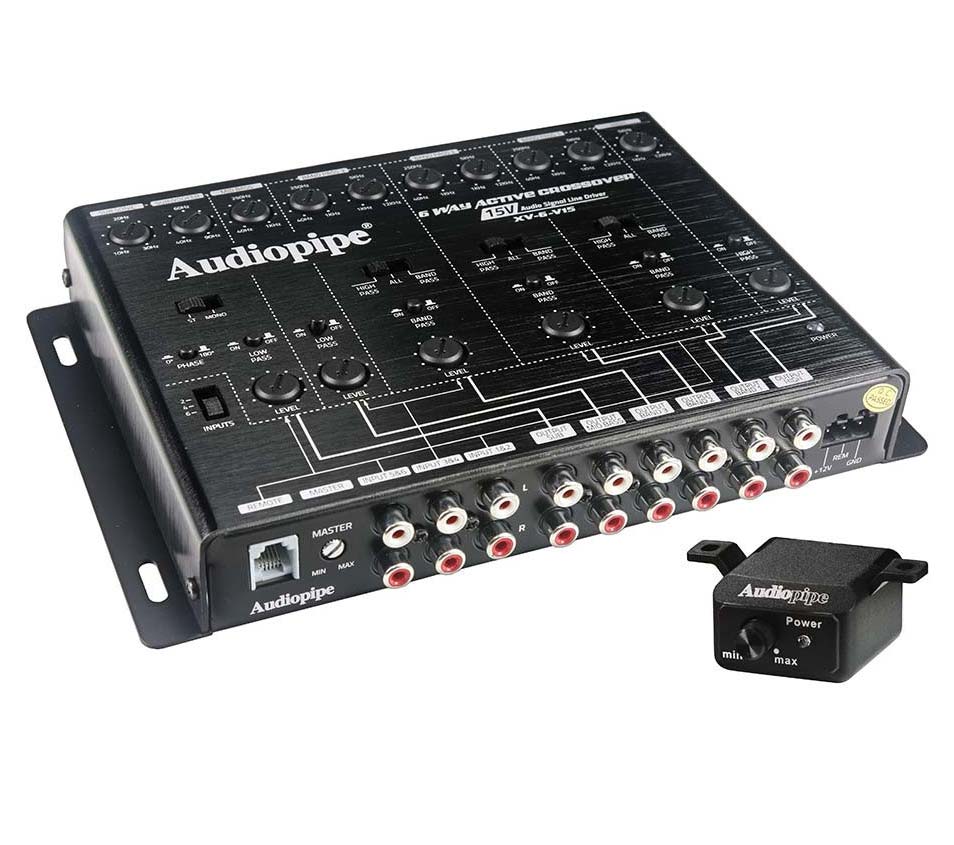

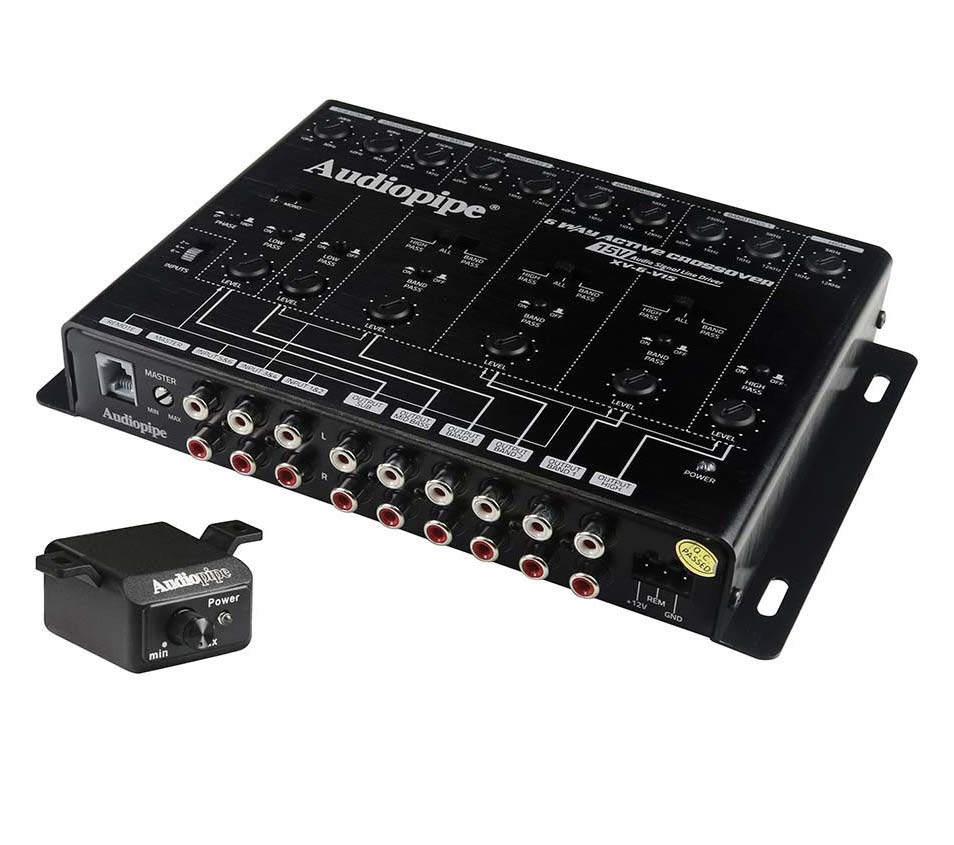

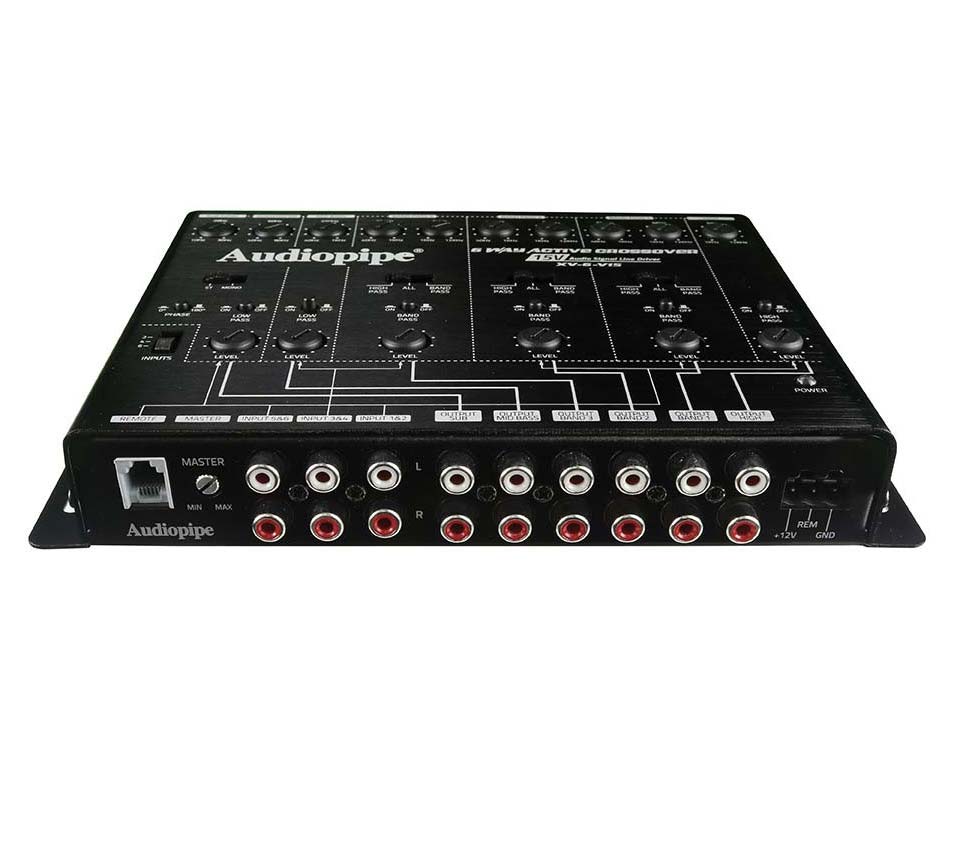

Audiopipe XV6V15 6 Way Crossover 8 ch. Input 12 ch. Output
Audiopipe XV6V15 6 Way Crossover 8 ch. Input 12 ch. Output
Regular price
$102.99
Regular price
Sale price
$102.99
Unit price
/
per
FREE Shipping
15 in stock
Couldn't load pickup availability
6-Way Active Crossover. 15 V Audio Signal Line Driver
6 channels input/12 channels output

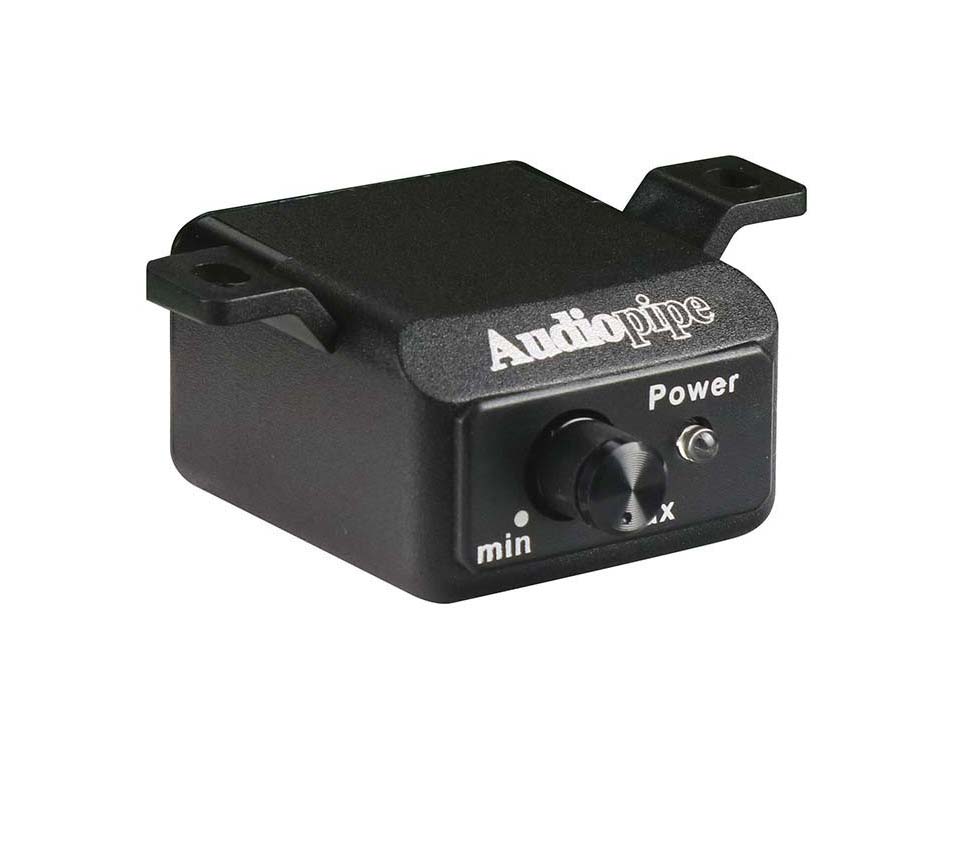

Remote subwoofer level control
Master gain control
Independent gain control per pair of channels
HP/ALL/BP switchable
Mono/Stereo switch
Phase: 0 or 180 out
2/4/6 channel input selector
15 volts RMS line-driver
High/Tweeter: 1KHz - 12KHz @ 12dB/octave
3 sets of Bandpass channels: Floor: 40Hz-1KHz, Ceiling: 1KHz-12KHz @ 12dB/octave
Midbass: 40Hz - 1KHz @ 12dB/octave
Subwoofer: 40Hz - 90Hz @ 12dB/octave
Subsonic filter: 10Hz - 30Hz @ 18dB/octave
On/Off switch per pair of outputs for easy fine tuning
Signal to noise ratio: -105dB A-weighted
Total harmonic distortion: <0.04%
Stereo separation: >70dB
Continuously variable crossover frequency with multiplier switch
Separate inputs for front, rear and subwoofer
Front and rear high pass outputs
Non-fade low pass output
Adjustable low pass gain
Subwoofer bass boost
Ground loop isolation input circuit
Remote turn-on circuit
Power-on LED
6 channels input/12 channels output
Remote subwoofer level control
Master gain control
Independent gain control per pair of channels
HP/ALL/BP switchable
Mono/Stereo switch
Phase: 0 or 180 out
2/4/6 channel input selector
15 volts RMS line-driver
High/Tweeter: 1KHz - 12KHz @ 12dB/octave
3 sets of Bandpass channels: Floor: 40Hz-1KHz, Ceiling: 1KHz-12KHz @ 12dB/octave
Midbass: 40Hz - 1KHz @ 12dB/octave
Subwoofer: 40Hz - 90Hz @ 12dB/octave
Subsonic filter: 10Hz - 30Hz @ 18dB/octave
On/Off switch per pair of outputs for easy fine tuning
Signal to noise ratio: -105dB A-weighted
Total harmonic distortion: <0.04%
Stereo separation: >70dB
Continuously variable crossover frequency with multiplier switch
Separate inputs for front, rear and subwoofer
Front and rear high pass outputs
Non-fade low pass output
Adjustable low pass gain
Subwoofer bass boost
Ground loop isolation input circuit
Remote turn-on circuit
Power-on LED
