Autotek

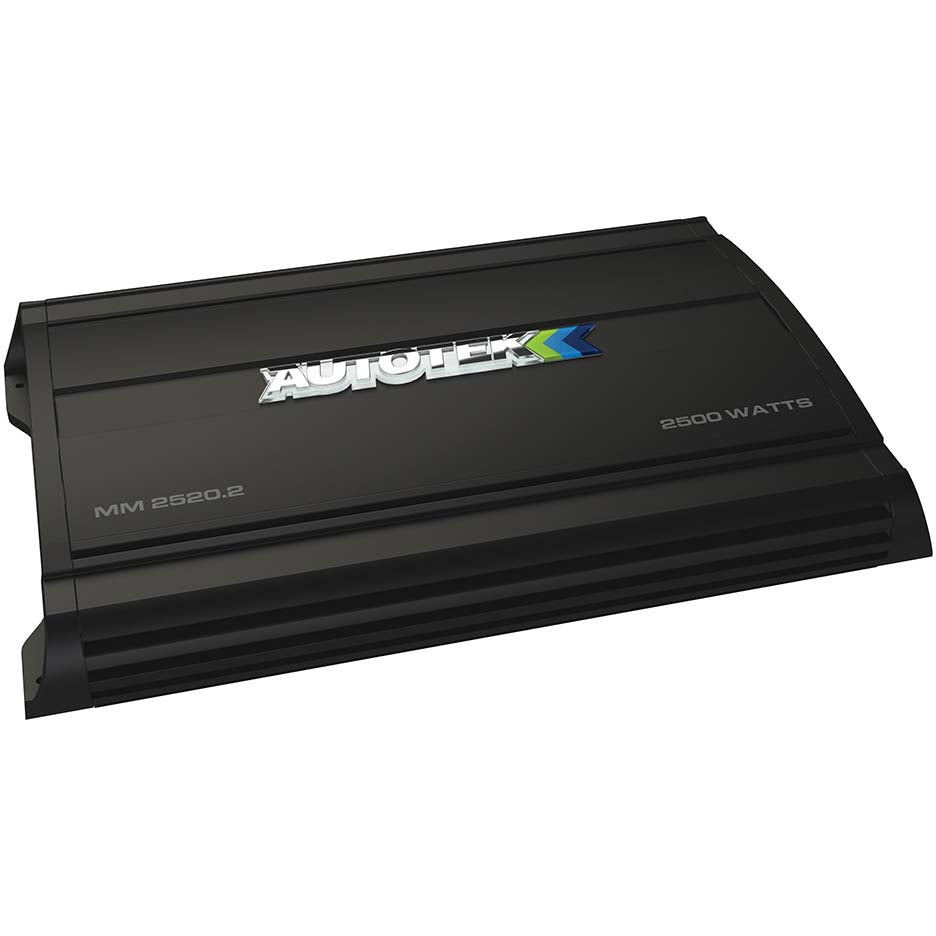

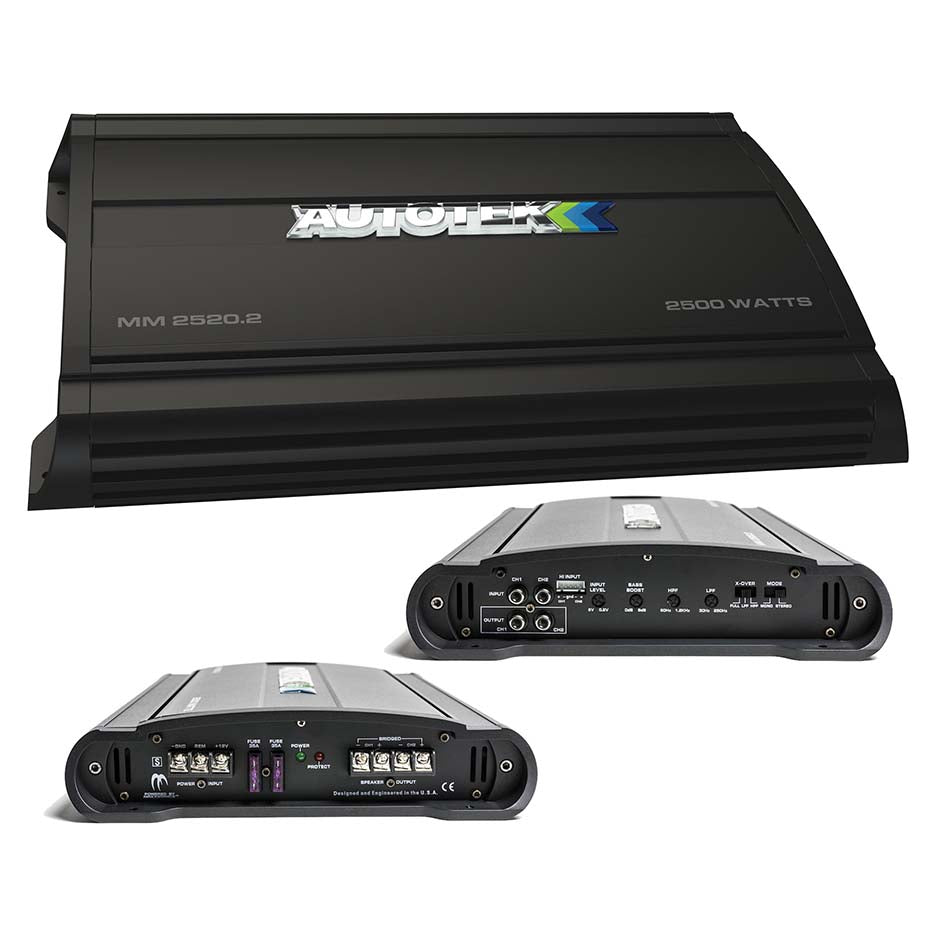

Autotek MM25202 Mean Machine 2 X 1250 @ 2 Ohms 1 X 2500 WATTS @ 4 Ohms Bridged

Autotek MM25202 Mean Machine 2 X 1250 @ 2 Ohms 1 X 2500 WATTS @ 4 Ohms Bridged

Regular price $81.45
Regular price Sale price $81.45
Sale Sold out
FREE Shipping

Out of stock

Power @ 2 ohms: 2 x 1250 watts
Power @ 4 ohms: 2 x 625 watts
Mono bridged @ 4 ohms: 1 x 2500 watts
Fusing: 35ax2
Dimensions: 9-5/8"W x 2-1/4"H x 13-3/8"L

Class a/b
Variable voltage
6v - 0.2v
Signal to noise
>90db
Frequency response
30hz - 12khz
Crossover
Switchable
Full/hpf/lpf
Variable high pass crossover 12db per octave
60hz - 1.2khz
Variable low pass crossover 12db per octave
30hz - 250hz
Tone control/parametric eq
Built-in bass control
Bass boost
0 - 9db
Total channels
2

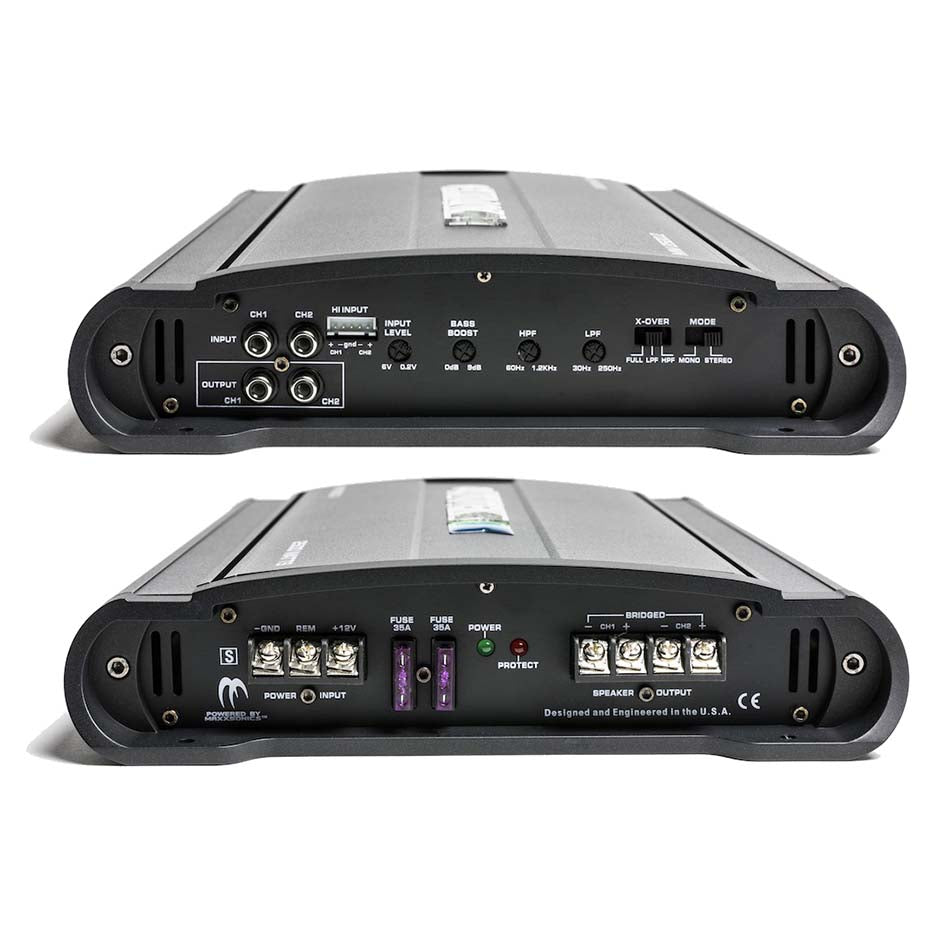

Audio inputs
Rca
Audio outputs
Rca
Power terminal 12v/gnd
4 awg
Speaker terminal wire gauge
8 awg
Fusing
35ax2
Total harmonic distortion (thd)
<0.05%


Features & benefits
Low noise pre-amplifier circuitry
Rca inputs
Hi level inputs
2 channel operation mode allows either stereo or mono bridged operation
Crossover type
Switched
Full / lpf / hpf for complete control of amplifier signal which is essential when using two or more amplifiers
Electronic equalizer
Class a/b amplifiers have larger heatsinks with very musical bass
Mean machine's road worthyt tcid (twin coil isolation design) and pro-fit high speed mosfets bring extreme power with high sound quality and minimum distortion levels
Heavy-duty aluminum alloy heatsink with illuminated connectors provide a blue wash of light from the heatsink underside
High energy pwm (pulse width modulated) power supply provides maxximum power with minimal electrical impact
Nickel-plated brass connectionwith hex set screw terminals allow for secure connection and resist erosion
Angled, allen key connectors provide easy access for hand tools allowing a quick and secure connection
Full-range signal pass through output allows additional amplifiers to be run from the "Output" rca connections which minimize the need for additional cables running the length of the vehicle. This can dramatically minimize noise.
Led system protection circuitry diagnostics
