Blue Sea Systems

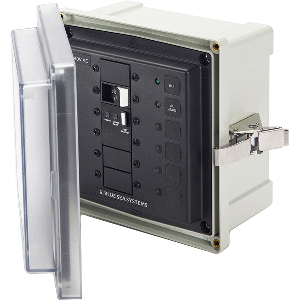

Blue Sea 3120 - SMS Panel Enclosure w/ELCI Main (50A) and 2 Blanks - 240V

Blue Sea 3120 - SMS Panel Enclosure w/ELCI Main (50A) and 2 Blanks - 240V

Regular price $733.72
Regular price Sale price $733.72
Sale Sold out
FREE Shipping

Low stock: 4 left

3120 - SMS Panel Enclosure with ELCI Main (50A) and 2 Blanks - 240V

The 3120 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices.  Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.

Features:

  • Blank apertures for custom breaker loading
  • Glass filled polycarbonate base
  • Clear cover allows easy view of circuit breaker status
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
  • Includes waterproof glands
  • LEDs for backlighting and ON indication

Technical Specifications:

  • Circuit Breaker Type - 1 x ELCI (50A) Main 240V and 2 x Blank
  • Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
  • Dimensions  (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
  • LEDs Installed - 2 x Green ON (240V AC)

In the Box:

  • 3120 Enclosure
  • Glands x 5
  • Labels
  • Mounting hardware
  • Instruction manual

*Sold as an Individual
