Blue Sea Systems

Blue Sea 4321 Circuit Breaker Switch Panel 4 Position - w/12V

Blue Sea 4321 Circuit Breaker Switch Panel 4 Position - w/12V

Regular price $70.70
Regular price Sale price $70.70
Sale Sold out
FREE Shipping

25 in stock

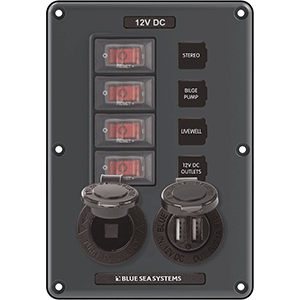

4321 Circuit Breaker Switch Panel 4 Position - Gray with 12V Socket & Dual USB

Designed for exposed mounting applications.

Features:

  • Illuminated 15A circuit breakers provide switching, “ON” indication and overcurrent protection
  • Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application
  • Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
  • Silicon breaker boots and gasket protects against water ingress
  • Low profle makes it easy to install in tight spaces
  • Fast-on circuit breaker connectors make it quick to wire
  • Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
  • Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems

Specifications:

  • Color: Gray
  • Positions: 4
  • Nominal Voltage: 12 VDC
  • Maximum Amperage: 45A
  • Terminal Type: 1/4" Male Quick Connect
  • Hardware: Stainless Steel #6 x 5/8" mounting screws
  • Ring Terminal Size: M5 (#10)
