Blue Sea Systems

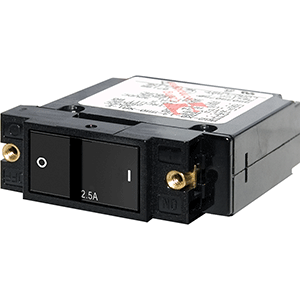

Blue Sea 7399 A-Series Flat Rocker Circuit Breaker - Single Pole - 2.5A

Blue Sea 7399 A-Series Flat Rocker Circuit Breaker - Single Pole - 2.5A

Regular price $25.65
Regular price Sale price $25.65
Sale Sold out
FREE Shipping

Out of stock

A-Series Flat Rocker Circuit Breaker - Single Pole - 2.5A

  • Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching
  • Color actuator indicates "OFF" position
  • "Trip Free" design cannot be held "ON" during fault current condition
  • 2 different actuator styles available
  • Prevents accidental switching of 24 hour circuits
  • International ON/OFF symbols support vertical or horizontal mounting


Specifications:
  • Amperage: 2.5A DC / 2.5A AC
  • Actuator Style: Flat Rocker
  • Poles: 1
  • Max Voltage:250V AC / 32V DC
  • Circuit Breaker Type: Magnetic Hydraulic - Trip Free
  • Interrupt Capacity: 3000A @ 125V AC / 1500A @ 250V AC / 5000A @ 32V DC
  • Minimum Operating Temperature: -40° C
  • Maximum Operating Temperature: 85° C
  • Mounting Screw: #6-32 Stainless Steel
  • Mounting Screw Torque: 6 in-lb (0.68 Nm)
  • Screw Terminal Torque 14 in-lb (1.58 Nm)
  • Switching Cycles: 10000
  • Terminal Screw: #10-32 Stainless Steel
  • Weight: 0.21lb (0.1 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
