Blue Sea Systems

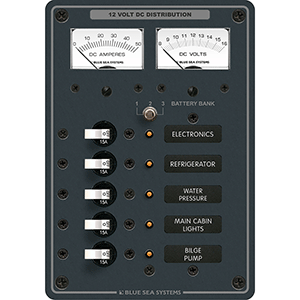

Blue Sea 8081 DC 5 Position Toggle Branch Circuit Breaker Panel - White Switches

Blue Sea 8081 DC 5 Position Toggle Branch Circuit Breaker Panel - White Switches

Regular price $395.67
Regular price Sale price $395.67
Sale Sold out
FREE Shipping

Out of stock

8081 DC 5 Position Toggle Branch Circuit Breaker Panel - White Switches

Features:

  • All positive, negative and grounding buses installed, fully pre-wired
  • Panels with meters include toggle switch for mounting up to 3 battery banks
  • All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
  • All circuit label positions are backlit on standard panels - No kit required
  • "ON" indicating LEDs installed in all circuit positions

Specifications:

  • Positions: 5
  • Nominal Voltage: 12v DC
  • Maximum Amperage: 50A
  • Height: 7.5"
  • Width: 5.25"
  • Depth: 2.5"
  • Weight: 2.25 lbs

Included:

  • (5) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
  • (1) 8030 Basic DC Panel Label Set - 30 Labels
  • (1) 8041 DC Micro Ammeter - 0 to 50A w/ Shunt (Meter)
