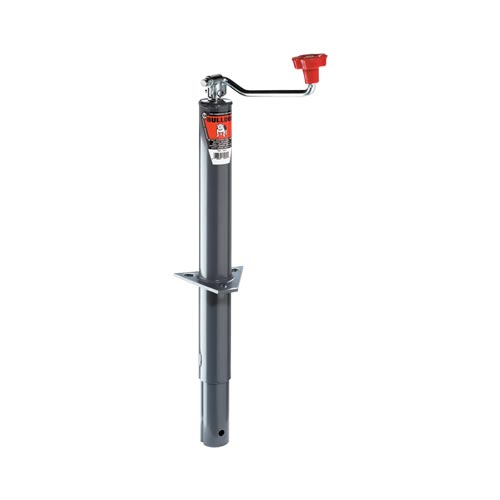

Bulldog 155022 Aframe Jack Topwind 15" Travel 84" Bracket Retracted 2000Lbs

A-Frame Jack Topwind 15 Lift 2,000 Lbs

Dependable Jack Is Recognized As Industry Standard For Agricultural And Commercial Applications
Asabe Compliant
Precision-Fitted Parts Provide Exceptional Stability And Reliability
Weld-On/Bolt-On Bracket Mounts To Any Standard A-Frame Coupler
Outer And Inner Tubes Are Gray-Paint Finished
Topwind Handle Has Smooth, Ergonomic Design For Easy Cranking
Footplate Or Caster Assembly Sold Separately

Specs:
Bracket Height:
8-13/16 Retracted
23-13/16 Extended
Lift: 15
Clearance: 12-13/16 From Mounting Bracket To Top Of Jack
Inner Tubing Diameter: 2
Outer Tubing Diameter: 2-1/4
Handle Radius: 6-5/8
Lift Capacity: 2,000 Lbs
