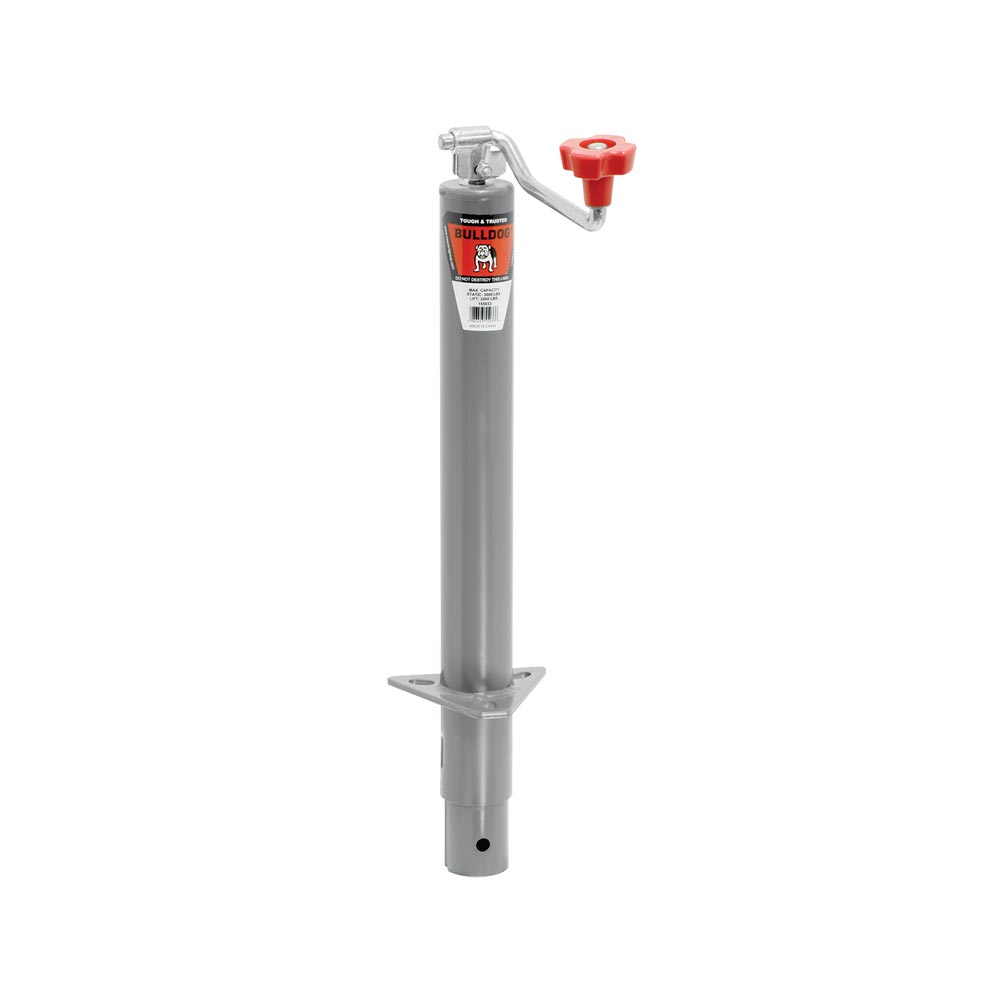

Bulldog 155033 Aframe Jack Topwind 15" Travel Weldon/Bolton 2000Lbs Capacity

Round, A-Frame Jack Topwind 15 Lift 2,000 Lbs

Dependable Jack Is Recognized As Industry Standard For Agricultural And Commercial Applications
Asabe Compliant
Precision-Fitted Parts Provide Exceptional Stability And Reliability
Weld-On/Bolt-On Bracket Mounts To Any Standard A-Frame Coupler
Topwind Handle Has Smooth, Ergonomic Design For Easy Cranking
Outer And Inner Tubes Are Gray-Paint Finished
Footplate Or Caster Assembly Sold Separately

Specs:
Bracket Height:
5-3/8 Retracted
20-3/8 Extended
Lift: 15
Clearance: 16 From Mounting Bracket To Top Of Jack
Inner Tubing Diameter: 2
Outer Tubing Diameter: 2-1/4
Handle Radius: 6-5/8
Lift Capacity: 2,000 Lbs
