Cadence
Cadence CEQ777 4 Band parmetric EQ 7V line driver & USB Input
Cadence CEQ777 4 Band parmetric EQ 7V line driver & USB Input
Regular price
$35.52
Regular price
Sale price
$35.52
Unit price
per
FREE Shipping
Out of stock
Couldn't load pickup availability

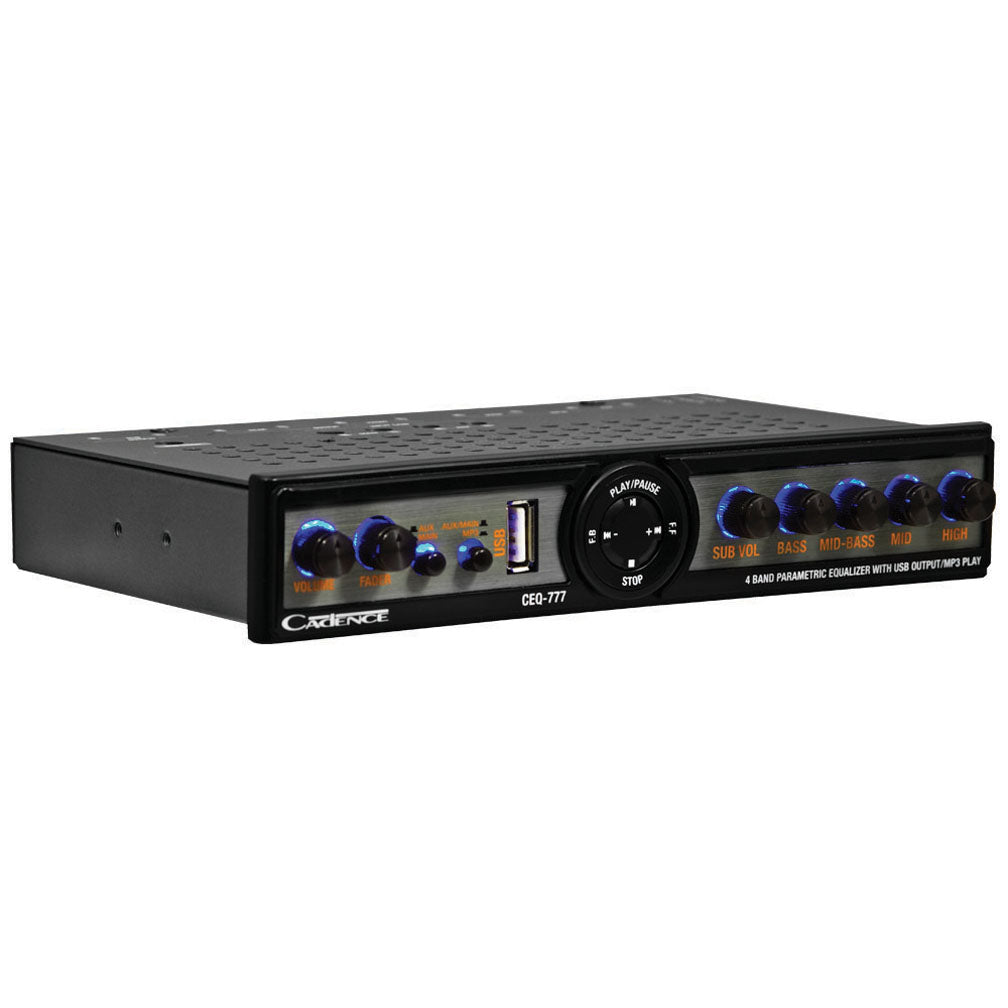

4 Band Parametric Equalizer with 7 Volt Line Driver
Specifications
High Control 20 kHz
Mid Control 2 kHz
Mid-Bass Control 200Hz
Bass Control 40Hz
Equalization Control Boost/Cut 9dB
Frequency Response 40Hz - 250Hz
THD < 0.05%
S/N Ratio > 95dB
Max Output Level 7 Volts RMS
Dimensions (L x W x H) 6.984" x 4.25" x 1.125"
Features
Active gain equalizer with adjustable input sensitivity
Master volume control with up to 7 volts RMS of output
Individual left and right sensitivity controls
Four band parametric equalizer with 9dB boost/cut
USB 2.0 full speed host function
On-board 30V bipolar switching power supply
Subwoofer level control
Adjustable subwoofer frequency
Gold-plated RCA input / output connectors
Input MAIN / AUX select switch
Night illumination
Specific bandwidth for each band plus high frequency shelving
Equalizer line driver
Front / rear outputs with fader control
Adjustable subwoofer frequency (40Hz - 250Hz)
Separate subwoofer frequency and level controls
Center-dented boost/cut controls for each band
Independent left and right input gain adjustments
Specifications
High Control 20 kHz
Mid Control 2 kHz
Mid-Bass Control 200Hz
Bass Control 40Hz
Equalization Control Boost/Cut 9dB
Frequency Response 40Hz - 250Hz
THD < 0.05%
S/N Ratio > 95dB
Max Output Level 7 Volts RMS
Dimensions (L x W x H) 6.984" x 4.25" x 1.125"
Features
Active gain equalizer with adjustable input sensitivity
Master volume control with up to 7 volts RMS of output
Individual left and right sensitivity controls
Four band parametric equalizer with 9dB boost/cut
USB 2.0 full speed host function
On-board 30V bipolar switching power supply
Subwoofer level control
Adjustable subwoofer frequency
Gold-plated RCA input / output connectors
Input MAIN / AUX select switch
Night illumination
Specific bandwidth for each band plus high frequency shelving
Equalizer line driver
Front / rear outputs with fader control
Adjustable subwoofer frequency (40Hz - 250Hz)
Separate subwoofer frequency and level controls
Center-dented boost/cut controls for each band
Independent left and right input gain adjustments
