Cadence
Cadence CXR7 3 way electronic xover 7Volt line driver
Cadence CXR7 3 way electronic xover 7Volt line driver
Regular price
$48.17
Regular price
Sale price
$48.17
Unit price
per
FREE Shipping
Out of stock
Couldn't load pickup availability

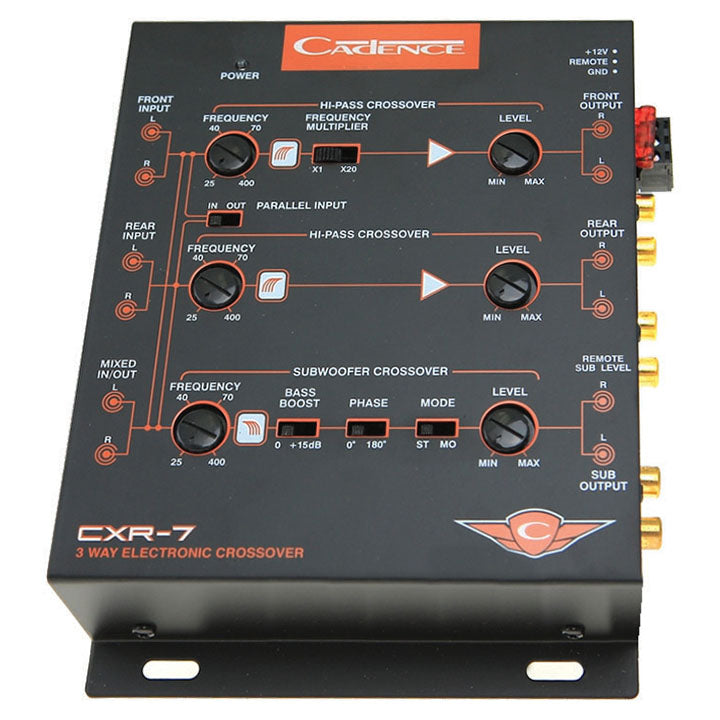

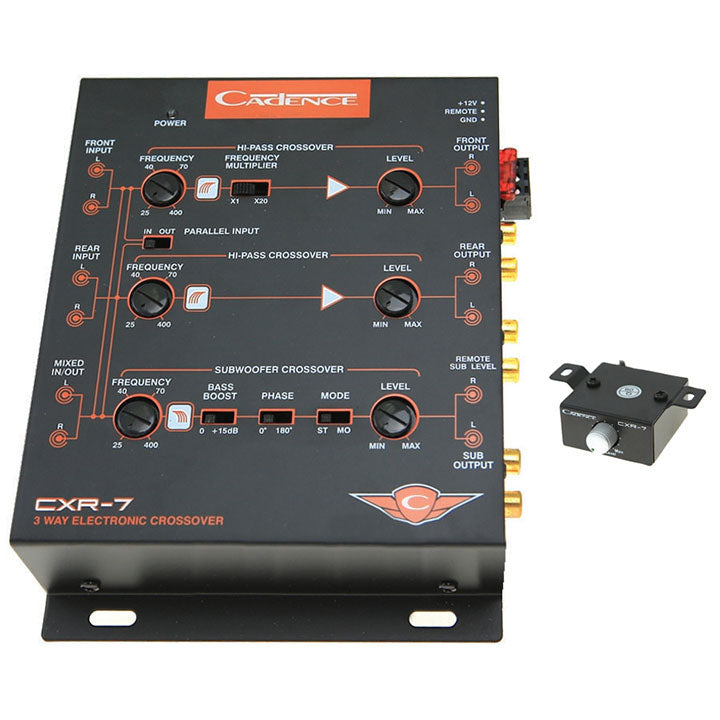

3-Way Electronic Crossover with 7 Volt Line Driver
Specifications
Rear Low Pass 25Hz - 400Hz Subwoofer
Rear High Pass 25Hz - 400Hz Midrange
Front High Pass 25Hz - 400Hz Midrange
Front High Pass 500Hz - 8 kHz Mid / High
Characteristics Low Pass 18dB per Octave Slope, 3rd Order
Characteristics High Pass 12dB per Octave Slope, 3rd Order
Equalization 0 - 15dB Boost
Frequency Response 10Hz - 30 kHz (-3dB)
THD < 0.01%
S/N Ratio 95dB
Max Output Level 7 Volts RMS
Dimensions (W x D x H) 7.5" x 5.5" x 1.75"
Features
Crossover Slopes: 18dB or 12dB
Fully adjustable frequencies
Multi-Link Capability
Selectable Parametric 15dB Bass Boost
Phase Shift-Control
Audio Stereo / Mono Selector
Self Powered Featuring Fully Isolated DC-to-DC Power Supply

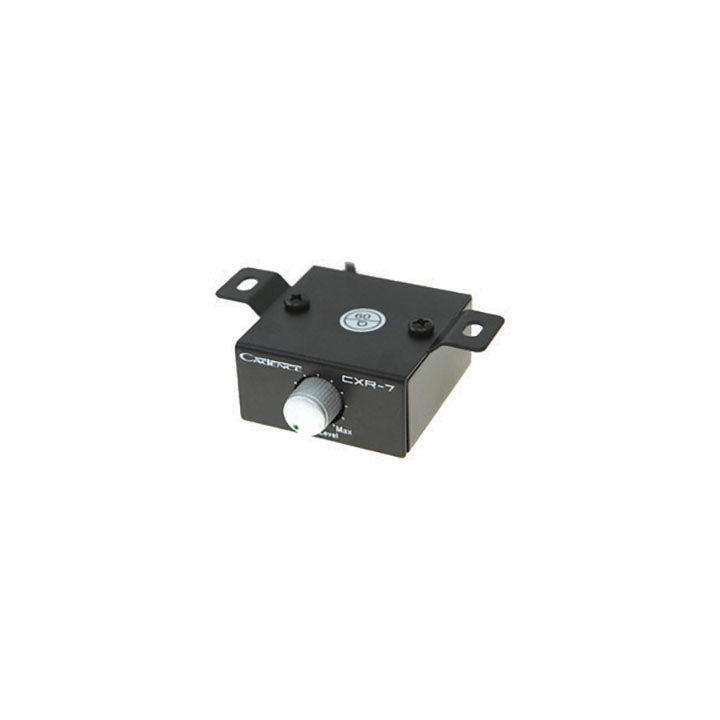

Dashboard Bass Remote Control Included
Specifications
Rear Low Pass 25Hz - 400Hz Subwoofer
Rear High Pass 25Hz - 400Hz Midrange
Front High Pass 25Hz - 400Hz Midrange
Front High Pass 500Hz - 8 kHz Mid / High
Characteristics Low Pass 18dB per Octave Slope, 3rd Order
Characteristics High Pass 12dB per Octave Slope, 3rd Order
Equalization 0 - 15dB Boost
Frequency Response 10Hz - 30 kHz (-3dB)
THD < 0.01%
S/N Ratio 95dB
Max Output Level 7 Volts RMS
Dimensions (W x D x H) 7.5" x 5.5" x 1.75"
Features
Crossover Slopes: 18dB or 12dB
Fully adjustable frequencies
Multi-Link Capability
Selectable Parametric 15dB Bass Boost
Phase Shift-Control
Audio Stereo / Mono Selector
Self Powered Featuring Fully Isolated DC-to-DC Power Supply
Dashboard Bass Remote Control Included
