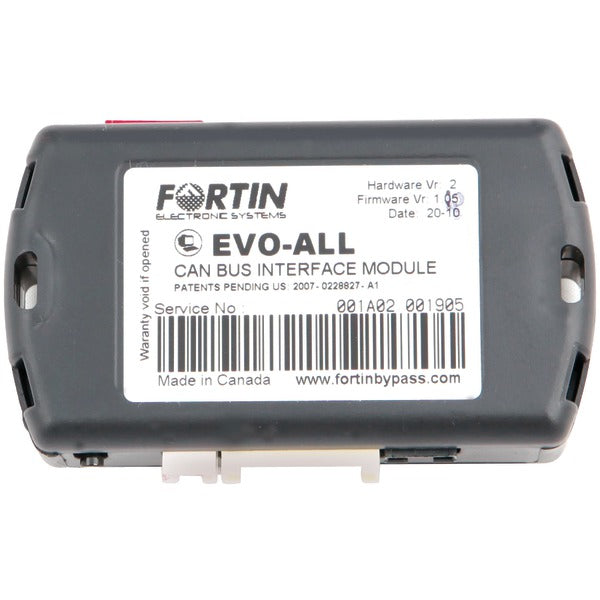

CrimeStopper EVO-ALL All-in-One Data Data Bypass & Interface Module

Universal all-in-one data bypass & interface module
Compatible with up to 2,300 different 1998–2011 vehicles including push-to-start vehicles
3 onboard LEDs for simple programming & diagnostic
Preloaded, updateable firmware
2-way data port for data-to-data communication to remote start, combination & security systems
3 CANbus controllers
3 general-purpose controllers—J1850, Class-2, encrypted key, etc.
2 onboard relays for easier installation on vehicle
1 analog controller 0V–12V DC @ 20mV steps—Passlock®, MUX
20-wire general purpose plug for wire-to-wire connection to nondatalink-equipped remote-start & security systems
Self-learning algorithm automatically detects the vehicle during programming & adjusts accordingly
