Exide DepthCharger D3E PDF Manual

Manual for the D3E series of Excide Depth Charger Forklift chargers.

 Once purchased a pdf of the Manual will be emailed to you. No physical manual will be sent only PDF electronic copy.

What does C= and E= Codes on display mean?

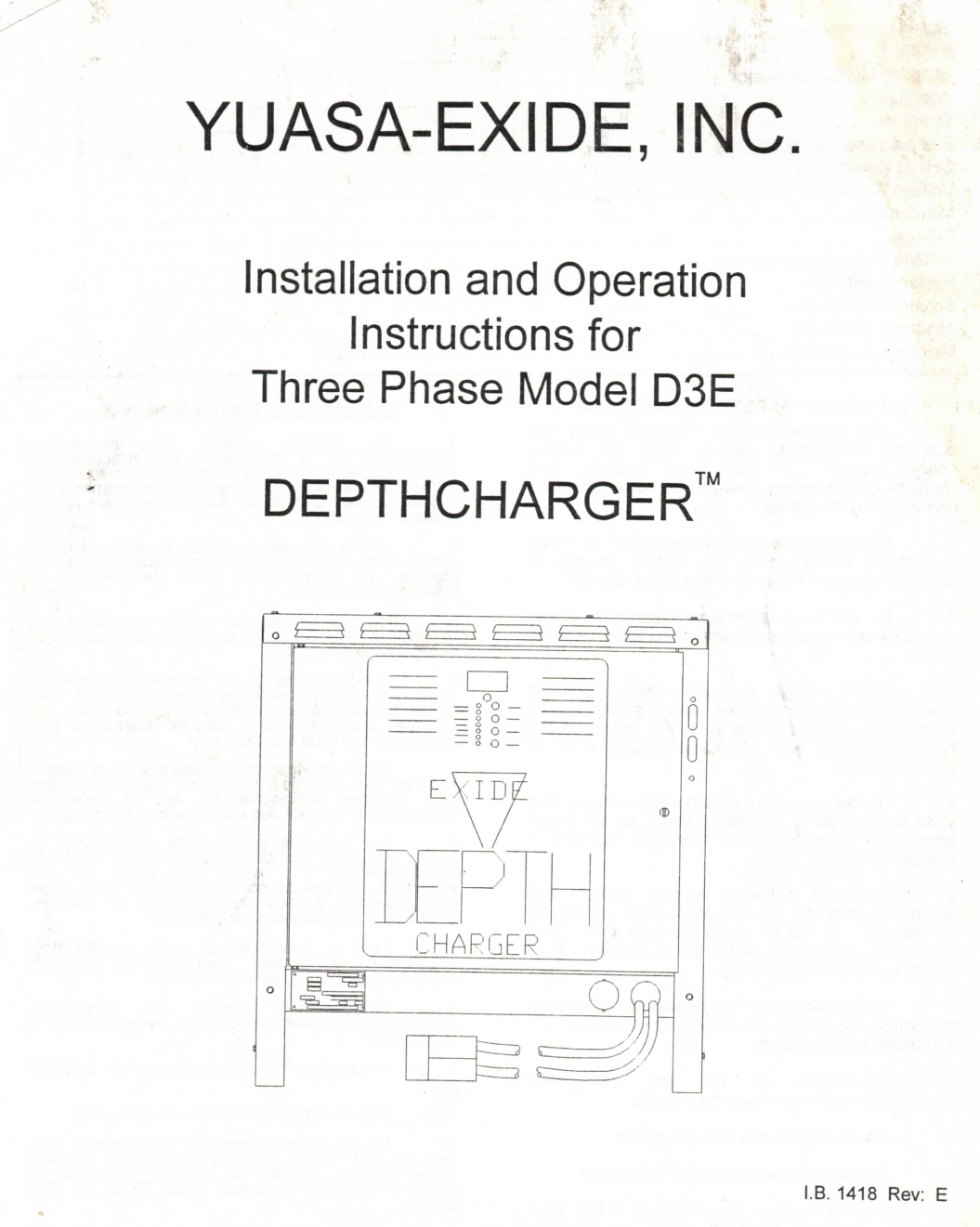

IB 1418 Rev E

How to wire D3E for 480 Volts
How to wire D3E for 208 Volts
How to wire D3E for 240 Volts
How to wire D3E for 416 Volts
How to wire D3E for 448 Volts
How to wire D3E for 550 Volts
How to wire D3E for 600 Volts

Works for all D3E including below models

D3E-18-1200
D3E-24-950
D3E-12-680
D3E-12-1050
