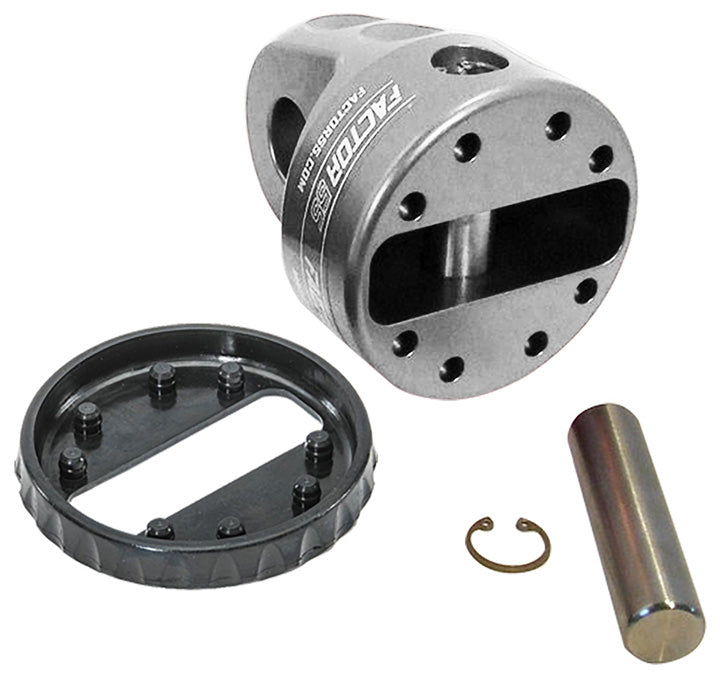

Factor55 0001505 Prolink Winch Shackle Mount Assembly (Silver)
Factor55 0001505 Prolink Winch Shackle Mount Assembly (Silver)
Regular price
$157.00
Regular price
Sale price
$157.00
Unit price
/
per
Out of stock
The advantages of winching with a screw pin shackle over a conventional winch hook are many:
D-ring shackles are up to 5X stronger than conventional winch hooks
Conventional hooks are too small to safely fit both ends of a recovery strap
Recovery straps cannot slip out of a shackle like they can with hooks
Hook safety latches are not rated for loads and can tear recovery straps
Conventional hook surfaces add higher stresses to recovery strap fibers, resulting in decreased strap ratings
Shackles can be quickly removed and stowed away until needed for winching.
Hooks do not cinch neatly against fairleads and are prone to rattling and loosening
Conventional winch hooks are designed for chains - not commonly used recovery straps
Engineered, Tested, and Made in USA
Stress analyzed using COSMOS FEA and destructively tested for confirmation
Billet construction - precision machined from 6061-T6 Kaiser Aluminum round bar
16,000 pound max load rating
Fits all steel cables and synthetic ropes up to 3/8" in diameter
Fits eyes equipped with standard or tube thimbles to 3/8 inch diameters
1.2 inch shackle tab thickness virtually eliminates "shackle rattle"
Massive 5/8 inch diameter carbon steel double shear pin
Optional EPDM "Rubber Guard" protects alloy Hawse fairleads - rubber barb attachment
Can be installed and removed in minutes - simple snap ring removal
Cinches neatly against all types of fairleads - Hawse or Roller
Red and Black colors are powder coated to resist fading while all other colors are beautifully anodized and zinc plated in the USA
D-ring shackles are up to 5X stronger than conventional winch hooks
Conventional hooks are too small to safely fit both ends of a recovery strap
Recovery straps cannot slip out of a shackle like they can with hooks
Hook safety latches are not rated for loads and can tear recovery straps
Conventional hook surfaces add higher stresses to recovery strap fibers, resulting in decreased strap ratings
Shackles can be quickly removed and stowed away until needed for winching.
Hooks do not cinch neatly against fairleads and are prone to rattling and loosening
Conventional winch hooks are designed for chains - not commonly used recovery straps
Engineered, Tested, and Made in USA
Stress analyzed using COSMOS FEA and destructively tested for confirmation
Billet construction - precision machined from 6061-T6 Kaiser Aluminum round bar
16,000 pound max load rating
Fits all steel cables and synthetic ropes up to 3/8" in diameter
Fits eyes equipped with standard or tube thimbles to 3/8 inch diameters
1.2 inch shackle tab thickness virtually eliminates "shackle rattle"
Massive 5/8 inch diameter carbon steel double shear pin
Optional EPDM "Rubber Guard" protects alloy Hawse fairleads - rubber barb attachment
Can be installed and removed in minutes - simple snap ring removal
Cinches neatly against all types of fairleads - Hawse or Roller
Red and Black colors are powder coated to resist fading while all other colors are beautifully anodized and zinc plated in the USA
