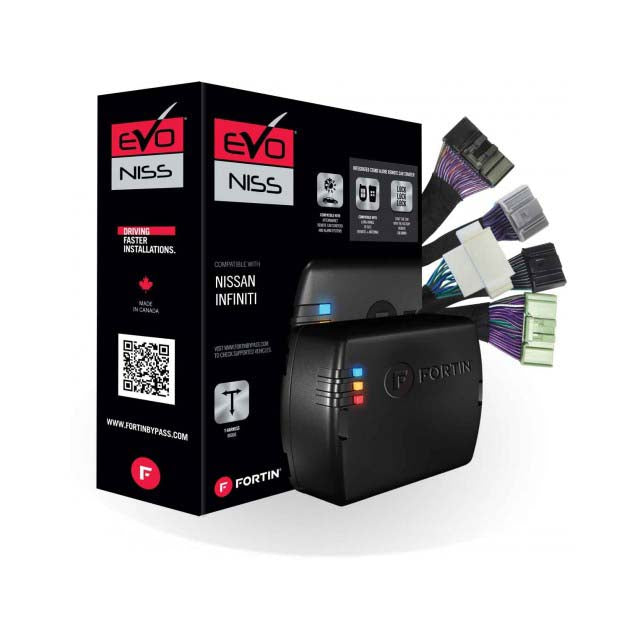

Fortin EVONIST4 Remote Start Module & T-Harness for Select Nissan and Infiniti

Preloaded Module And T-Harness For 13-20 Nissan & Infiniti Pts

Product Features
3 X On-Board Leds For Simplified Programming And Diagnostics.
1 X Preloaded Firmware For Maximum Compatibility.
1 X Factory Fit T-Harness For Easy Install.
1 X 2-Way Datalink Port For Data-To-Data (Rs-232) Communication With Compatible Remote-Starters And Security-Systems.
1 X 20 Pin General Purpose Plug For Wire-To-Wire Connections With Non-Datalink Equipped Remote-Starters And Security-Systems.
Self-Learning Algorithm Automatically Detects The Vehicle During Programming And Adjusts Accordingly.

Full Immobilizer Bypass
Convenience Functions Control
Largest Remote Start From The Oem Remote Function Coverage (3X Lock Or Lock-Unlock-Lock)

Product Specifications
3 X Can-Bus Controllers.
3 X General Purpose Controllers (J1850, Class 2, Encrypted Key Etc.).
1 X On-Board Relay (Spdt).
1 X On-Board Relay (Dpdt).
1 X Analog Controller 0-12Vdc

Manual

https://fortin.ca/download/75941/evo-all_ig_thr_bi_nis4_altima-murano-maxima_2013_pts_b_75941.pdf
