Power @ 2-ohms: 4 X 80w + 1 X 200w Power @ 4-ohms: 4 X 40w + 1 X 100w 600 Watts Total Fusing: 1 X 40 Amps Full Range Class D 5 Channel

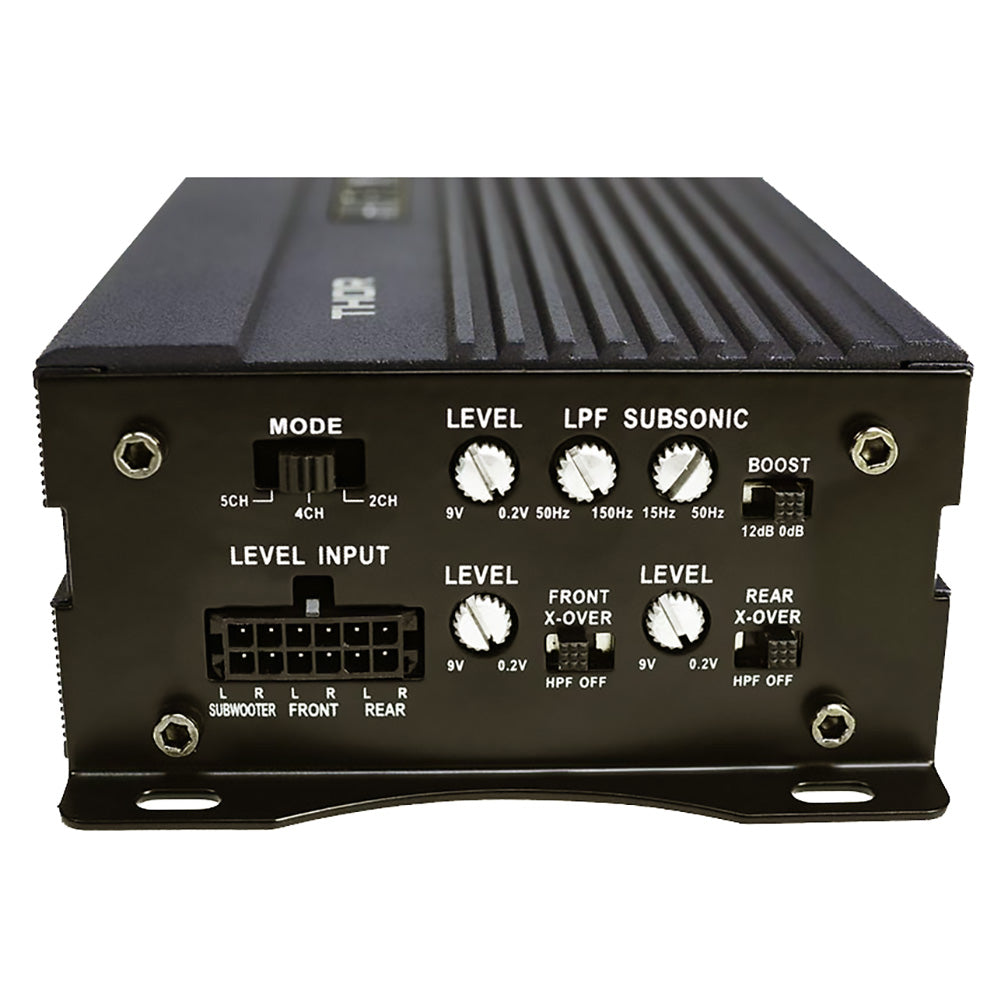

Variable Voltage: 0.2v~9v Signal to Noise Ratio: >90db Frequency Response: 20hz-20khz Crossover Type: Electronic 12db Per Octave Crossover Frequency Range Ch1 & Ch2: Switched Hp/ Full Crossover Frequency Range Ch3 & Ch4 : Switched Hp/ Full Crossover Frequency Range Ch5 : Lpf 50hz-150hz Bass Boost: 0-12db@45hz Subsonic Filter: 60hz Audio Inputs: Rca Power Terminal 12v/gnd: Molex 10 Ga Speaker Terminal Wire Gauge: Molex Plug Connector Dimensions: 3.7" W 1.77" H X 8.46" L
