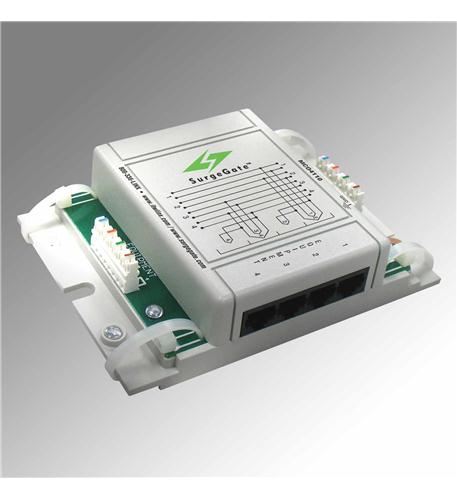

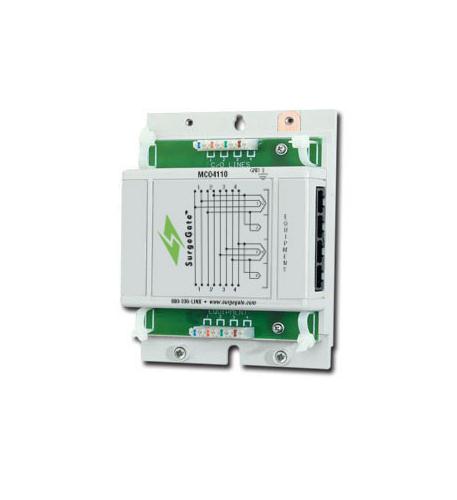

Analog Station Set and Central Office Line Protector
Protects up to 8-wires (4-pairs) using 110 punchdown block on the input and 110 punchdown block or 4 RJ11 or 2 RJ45 on output.
Auto-Resetting Technology: PTC resistors open when a surge occurs, protecting your equipment, but unlike other fuses, the PTCs close again once the surge passes.
Expandable modular system
Applications: Analog and Central Office lines for PBX or KSU
Agency Approval: UL 497A (Secondary)
Grounding Requirements: Uses Electrical AC Ground
Recommended Grounding Impedance: <0.5Ohm
Signal Perfect Circuitry
Auto-Resetting PTCs: 160 mA (8-10 Ohms)
Clamping Level: 260V
Response Time: 1-5 Nanoseconds
Capacitance: <50pF
Suppression Modes: Metallic and Longitudinal
Wires Protected: 50-wires (25-pairs)
Termination Type: 110 punchdown input, RJ11/RJ45 or 110 punchdown output
