ITW Linx

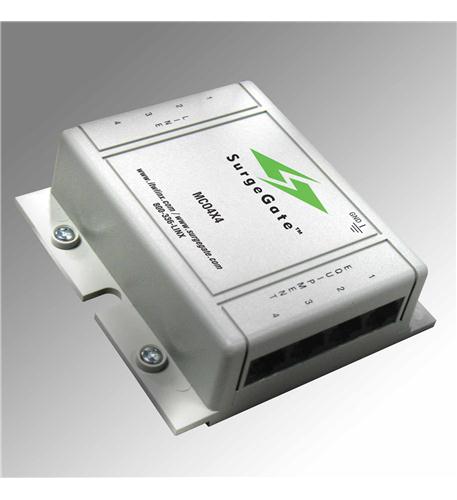

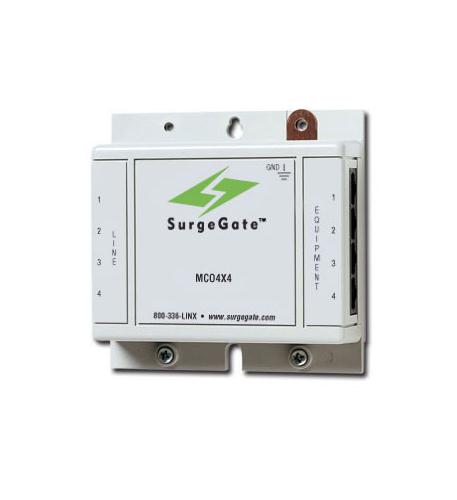

Itw linx MCO4X4-60 Protects Four Lines Rj-11 45 Connectors

Itw linx MCO4X4-60 Protects Four Lines Rj-11 45 Connectors

$93.83
$93.83
Sale Sold out
FREE Shipping

Low stock: 10 left
  • Analog Station Set and Central Office Line Protector
  • Protects up to 2-wires (1-pair) per jack. Using RJ11/45 connectors (pins 4, 5)
  • Auto-Resetting Technology: PTC resistors open when a surge occurs, protecting your equipment, but unlike other fuses, the PTCs close again once the surge passes.
  • Expandable modular system
  • Applications: Analog and Central Office lines for PBX or KSU
  • Agency Approval: UL 497A (Secondary)
  • Grounding Requirements: Uses Electrical AC Ground
  • Recommended Grounding Impedance: <0.5 Ohm
  • Signal Perfect Circuitry
  • Auto-Resetting PTCs: 160 mA (8-10 Ohms)
  • Clamping Level: 260V
  • Response Time: 1-5 Nanoseconds
  • Capacitance: <50pF
  • Suppression Modes: Metallic and Longitudinal
  • Wires Protected: 2-wires (1-pair) per jack (pins 4, 5)
  • Termination Type: RJ11/45
