ITW Linx

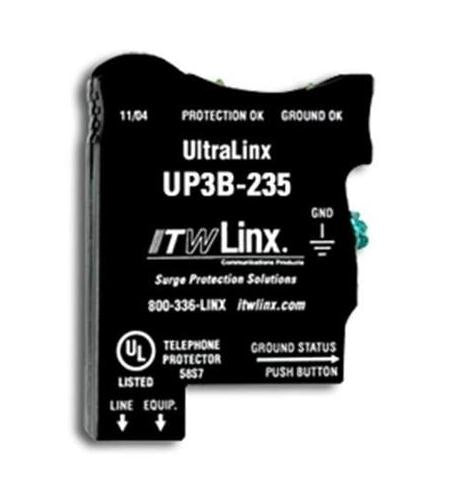

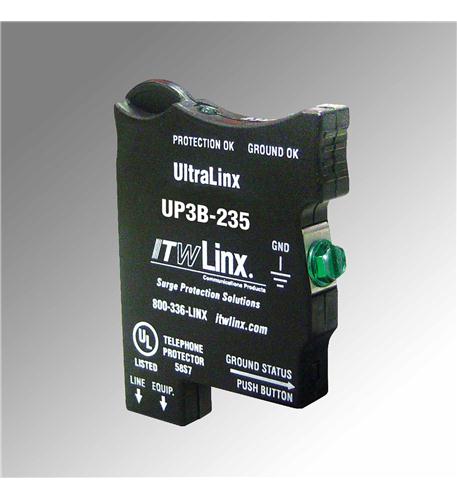

Itw linx UP3B-235 Ultralinx 66 Block 235v Clamp

Itw linx UP3B-235 Ultralinx 66 Block 235v Clamp

Regular price $42.40
Regular price Sale price $42.40
Sale Sold out
FREE Shipping

17 in stock

  • 66 Block Primary or Secondary 235V Surge Protector
  • UL Primary and Secondary listed with 350mA fuse for voice/fax/modem line (235V)
  • Dual Indicator Lights: Protection OK and Ground Connection OK
  • Solid-State Protection
  • Single Pair Protection: Protect only the lines requiring protection
  • Ideal for Retrofit Applications: Just remove the bridging clips from the block and replace them with the Protector, add the ground connection, and the pair is connected
  • Grounding Requirements: Field-installed solid copper wire
  • Recommended Grounding Impedance: <0.5 Ohm
  • Fuse Rating: 350mA (1.6 Ohms)
  • Signal Perfect Circuitry
  • Clamping Level: 235V
  • Response Time: 1-5 Nanoseconds
  • Capacitance: <50pF
  • Suppression Modes: Metallic and Longitudinal
  • Wires Protected: 2-wires, 1 pair
  • Termination Type: 66 M Blocks
