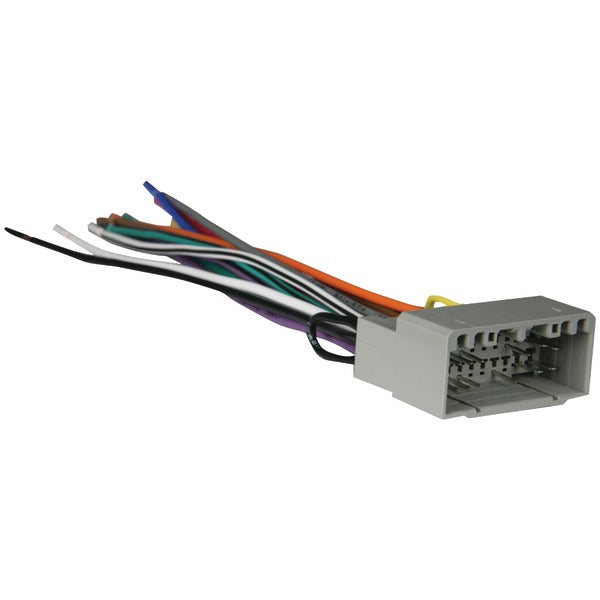

Metra 706502 2002 Up Chrysler Dodge Jeep Wire Harness

Plugs into car harness at radio
Power/4-Speaker
22-pin connector
Color coded to make installation easier
Excellent flexibility, power handling, and higher heat resistance
7" in length
Terminals lock securely
Allows for the installation of an aftermarket receiver using the existing factory and connectors
No cutting of factory wiring is needed
Compatible with select 2002-2007 Chrysler, Dodge and Jeep vehicles

Compatibility List:
Chrysler:
2002 - 2004 300
2002 - 2004 Concorde
2004 - 2008 Pacifica
2002 - 2005 PT Cruiser
2002 - 2006 Sebring Convertible
2002 - 2005 Sebring Sedan
2002 - 2007 Town & Country
2002 - 2003 Voyager
Dodge:
2002 - 2007 Caravan
2002 - 2004 Dakota
2002 - 2003 Durango
2002 - 2004 Intrepid
2002 - 2006 Neon
2002 - 2005 Ram Pickup 1500
2003 - 2005 Ram Pickup 2500/ 3500
2002 - 2006 Stratus Sedan
2003 - 2009 Viper
Jeep:
2002 - 2004 Grand Cherokee
2002 - 2007 Liberty
2003 - 2006 Wrangler
Connections:
Yellow – 12V Constant
Red – 12V Accessory
Black - Ground
Orange – Dash Light Dimmer/Illumination
Green – Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
White – Left Front Speaker (+)
White with Black Stripe – Left Front Speaker (-)
Purple – Right Rear Speaker (+)
Purple with Black Stripe – Right Rear Speaker (-)
Gray – Right Front Speaker (+)
Gray with Black Stripe – Right Front Speaker (-)
