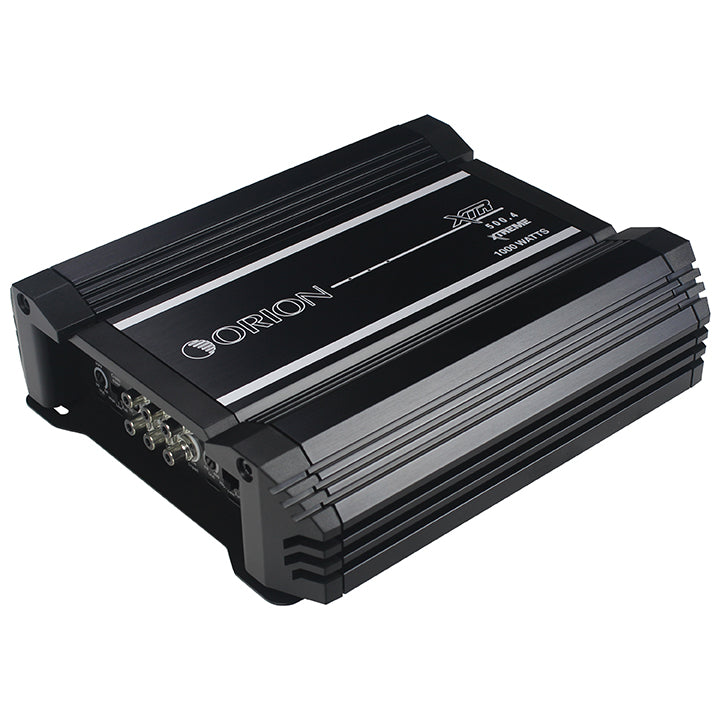

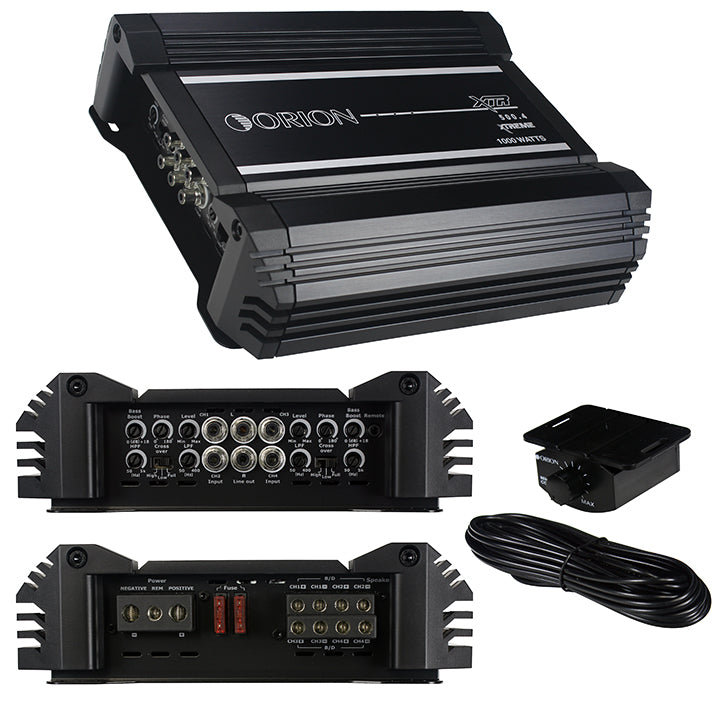

Orion XTR5004 4 Channel Amplifier, 500W RMS/1000W MAX

Orion XTR5004 4 Channel Amplifier, 500W RMS/1000W MAX

Regular price $169.00
Regular price Sale price $169.00
Sale Sold out
FREE Shipping

Out of stock

Orion Xtr Series Class A/B 4 Channel Amplifier, 500W Rms/1000W Max

500 Watts Rms/1000 Watts Max

125 X 4 Rms @ 2 Ohms
80 X 4 Rms @ 4 Ohms
Dim (Wxhxl) 9.375 X 2.5 X 10.375

Fuses: 2 X 40A

Wire Specifications:
Power/Ground: 4Ga.; Speaker: 10Ga.; Remote: 10Ga.

2 Ohm Stable
Mosfet Power Supply And Output Stage
Power And Protection Led Indicators
Intelliq Bass Optimization Circuit

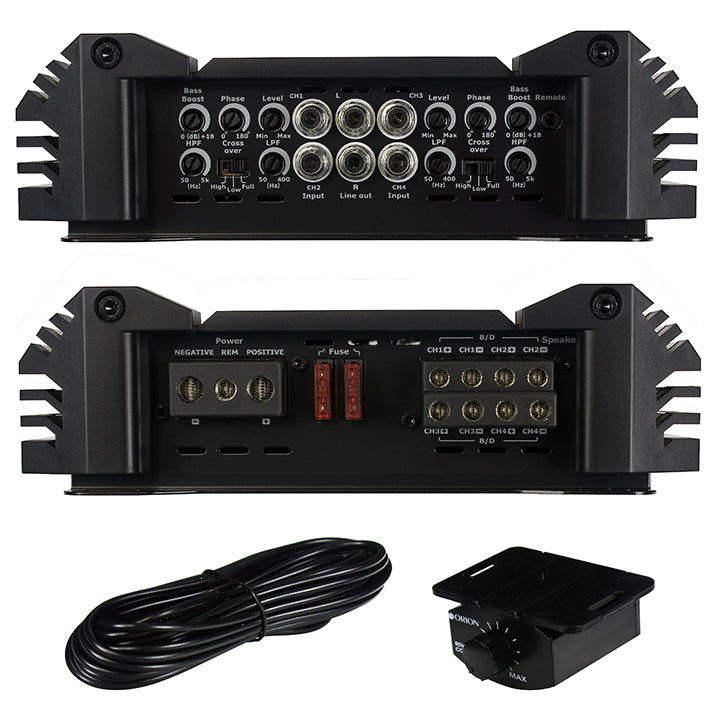

Low-Level Rca Inputs
Accepts High-Level Speaker Inputs From An Oem Stereo
Thermal, Dc Offset, Short Protection And Under-Voltage Protection
X-Over (Crossover) Activates The Low-Pass, Flat And High-Pass Crossovers
X-Over Frequency Control Adjusts The Frequency For The High- And Low-Pass Filters
Silver-Plated Rca Level Inputs And Screw Terminals
Variable High/Low Pass Filter (50-2,000 Hz, 12 Db/Octave)
Subsonic Filter (12 Db At 24 Hz)
Frequency Response: 20-20,000 Hz
Cea-2006 Compliant Amplifier
Remote Gain Control
