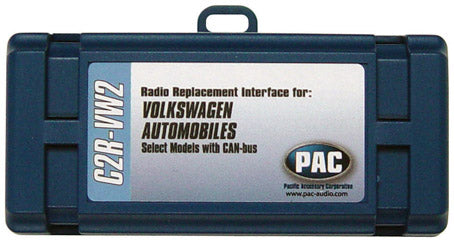

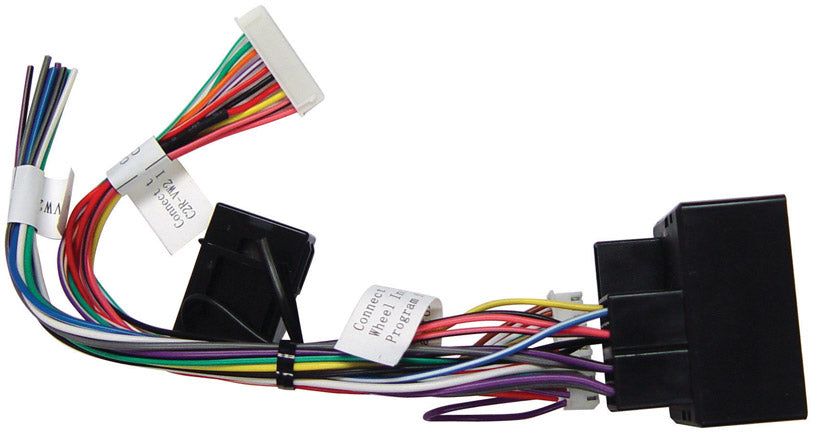

PAC C2RVW2 Replacement Interface for select Volkswagon Vehicles

PAC C2RVW2 Replacement Interface for select Volkswagon Vehicles

Regular price $105.71
Regular price Sale price $105.71
Sale Sold out
FREE Shipping

Low stock: 5 left

Provides navigation trigger wires and timed accessory output for replacing the factory radio and retains the factory installed amplified audio system.
Use with a steering wheel interface module to retain function of select factory controls (sold seperately)- no extra swi-can required.
Allows you to replace the factory radio in select 2002-2010 VW vehicles.
Provides Accessory, Parking Brake, Reverse, Illumination and VSS outputs on select vehicles.

Important Notes:

2010 Vehicles: The C2R-VW2 does not retain the digital amplifier in Dynaudio systems
2002-2005 Vehicles: You must be replacing a factory Double-DIN radio. If the vehicle came equipped with a Single-DIN radio, the C2R-VW2 is not compatible. The C2R-VW does not provide a Reverse output trigger. This signal is unavailable on the data bus.
2004-2007 Touareg: Does not retain digital audio amplified system seen when the vehicles is equipped with factory navigation radio
Steering Wheel Control Notes

2002-2005 vehicles (excludes Touareg)

Can program track up & down and volume up & down.
2006-2010 vehicles with Eight button SWC (excludes Touareg)

Can program volume up & down, phone button and star button without effecting Multi-Function Display (MFD). Arrow up & down can be programmed but will control MFD.
2009-2010 vehicles with 12 button SWC (excludes Touareg)

Can program left hand side of steering wheel volume up & down, track left & right, phone and mute buttons without effecting MFD. Arrow up & down on right side can be programmed but will control MFD.
2004-2010 Touareg

Can only program volume up & down
