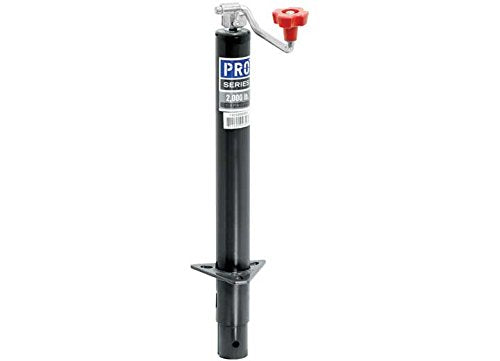

Pro Series 1401000303 A-Frame Jack

Pro Series 1401000303 A-Frame Jack

Deff Audio

  • $42.46
FREE Shipping (2 to 7 day delivery to the 48 us states)
30 day returns

Only 0 left!
Will be in stock after

Round, A-Frame Jack - Topwind - 15" Lift - 2,000 lbs
Weld-on/Bolt-on
Utility jack is perfect for agricultural and commercial applications
Precision-fit parts provide exceptional stability and reliability
Weld-on/bolt-on bracket mounts to any standard A-frame coupler
Outer and inner tubes have black paint finish
Topwind handle has smooth, ergonomic design for easy cranking
Footplate or caster assembly sold separately
Specs:
Bracket height:
5-1/2" Retracted
20-1/2" Extended
Lift: 15"
Clearance: 16" from mounting bracket to top of jack
Handle radius: 6-3/4"
Inner tubing diameter: 2"
Outer tubing diameter: 2-1/4"
Lift capacity: 2,000 lbs
