Deff Audio

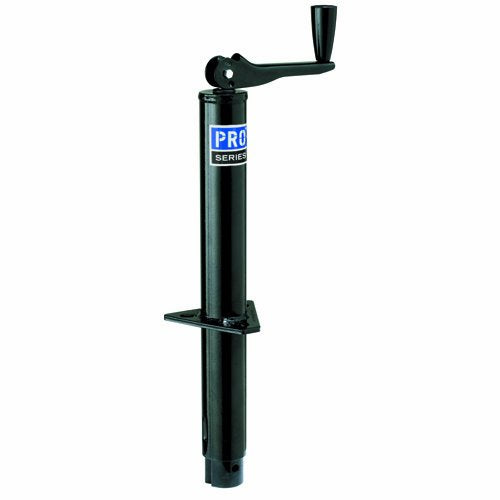

Pro Series EA20000303 A-Frame Jack
Pro Series EA20000303 A-Frame Jack
Regular price
$32.18
Regular price
Sale price
$32.18
Unit price
/
per
FREE Shipping
Out of stock
Couldn't load pickup availability
Round, A-Frame Jack w/ External Gearbox - Sidewind - 14" Lift - 2,000 lbs
Weld-On/Bolt-On
Utility jack is perfect for agricultural and commercial applications
Precision-fit parts provide exceptional stability and reliability
Weld-on/bolt-on bracket mounts to any standard A-frame coupler
Front-facing, sidewind handle has smooth, ergonomic design for easy cranking
External gearbox is easily accessible
Outer and inner tubes have black paint finish
Footplate or caster assembly sold separately
Specs:
Winding box: 3" wide x 2-1/2" tall x 2-1/2" deep
Bracket height:
9" Retracted
23" Extended
Total height (retracted): 21"
Lift: 14"
Clearance: 13" from mounting bracket to top of jack
Inner tube diameter: 2"
Outer tube diameter: 2-1/4"
Tube wall thickness: 2-3 mm
Lift capacity: 2,000 lbs
Weld-On/Bolt-On
Utility jack is perfect for agricultural and commercial applications
Precision-fit parts provide exceptional stability and reliability
Weld-on/bolt-on bracket mounts to any standard A-frame coupler
Front-facing, sidewind handle has smooth, ergonomic design for easy cranking
External gearbox is easily accessible
Outer and inner tubes have black paint finish
Footplate or caster assembly sold separately
Specs:
Winding box: 3" wide x 2-1/2" tall x 2-1/2" deep
Bracket height:
9" Retracted
23" Extended
Total height (retracted): 21"
Lift: 14"
Clearance: 13" from mounting bracket to top of jack
Inner tube diameter: 2"
Outer tube diameter: 2-1/4"
Tube wall thickness: 2-3 mm
Lift capacity: 2,000 lbs
