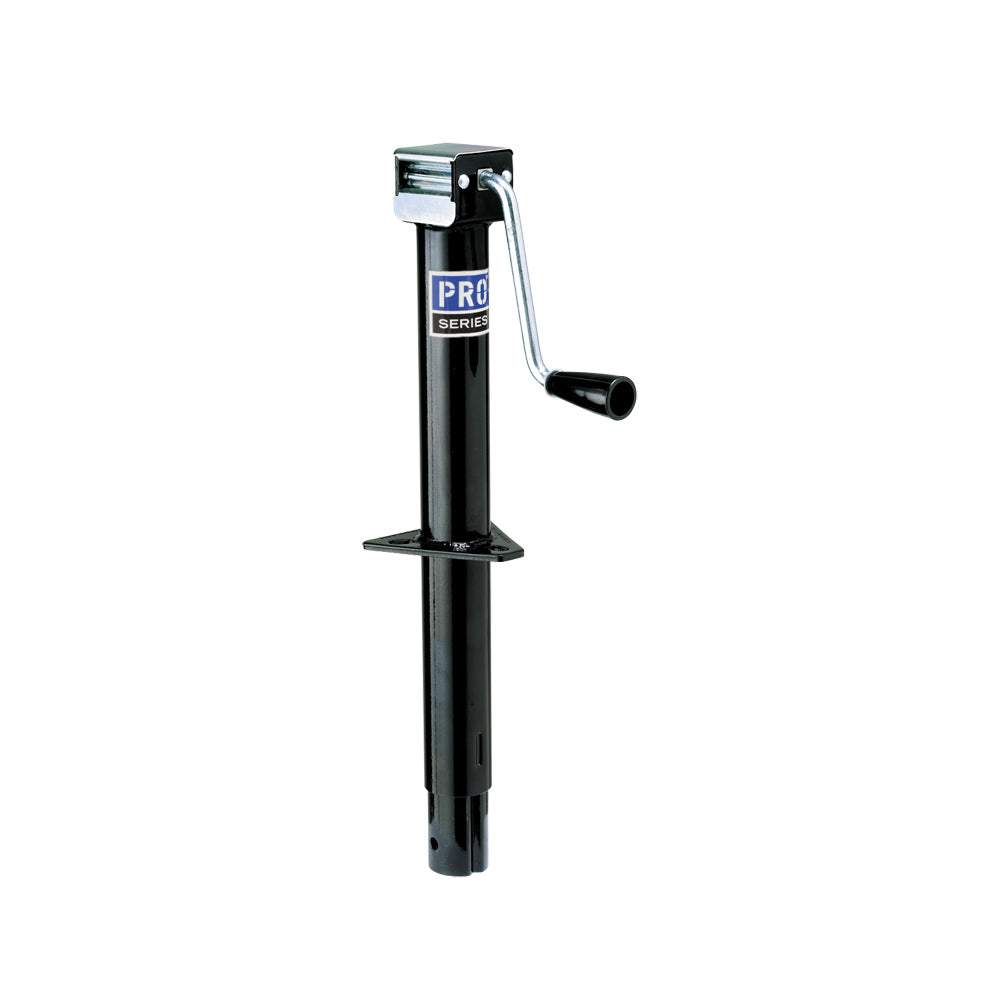

Pro Series RV20000103 Round A-Frame Jack w/ External Gearbox 14" Lift - 2000 lbs

Pro Series RV20000103 Round A-Frame Jack w/ External Gearbox 14" Lift - 2000 lbs

Regular price $45.06
Regular price Sale price $45.06
Sale Sold out
FREE Shipping

Out of stock

Round, A-Frame Jack w/ External Gearbox - Sidewind - 14" Lift - 2,000 lbs

Utility jack is perfect for agricultural and commercial applications
Precision-fit parts provide exceptional stability and reliability
Weld-on/bolt-on bracket mounts to any standard A-frame coupler
Front-facing, sidewind handle has smooth, ergonomic design for easy cranking
External gearbox is easily accessible
Outer and inner tubes have black paint finish
Footplate or caster assembly sold separately


Specs:
Winding box: 3" wide x 2-1/2" tall x 2-1/2" deep
Bracket height:
9" Retracted
23" Extended
Total height (retracted): 21"
Lift: 14"
Clearance: 13" from mounting bracket to top of jack
Inner tube diameter: 2"
Outer tube diameter: 2-1/4"
Tube wall thickness: 2-3 mm
Lift capacity: 2,000 lbs
