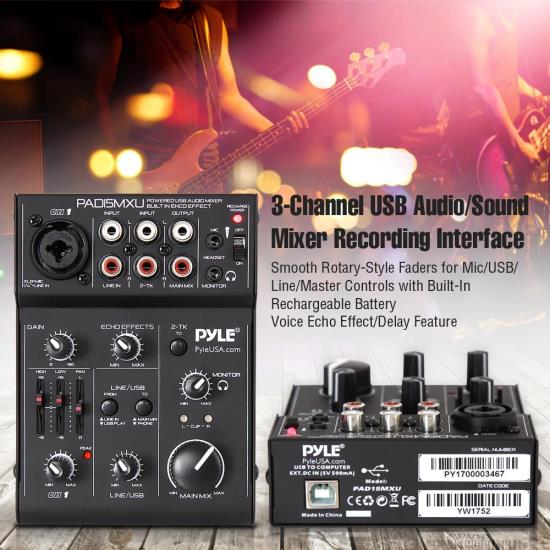

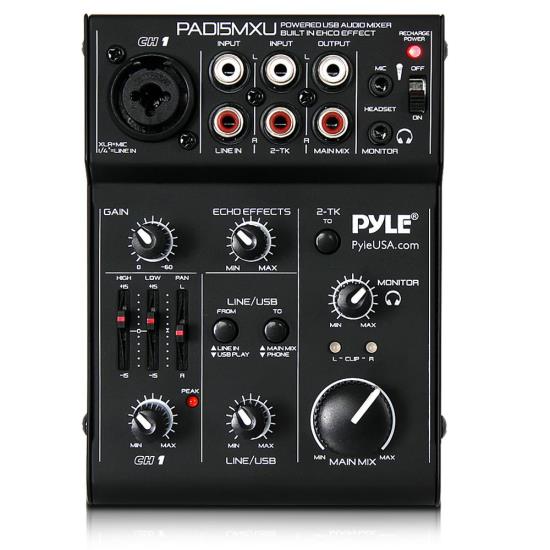

Pyle PAD15MXU 3-Channel USB Audio/Sound Mixer Recording Interface w/Battery

Pyle PAD15MXU 3-Channel USB Audio/Sound Mixer Recording Interface w/Battery

Regular price $88.14
Regular price Sale price $88.14
Sale Sold out
FREE Shipping

Out of stock

Flexible Connectivity for a Variety of External Devices
Ultra-Low Noise Design with High Headroom
Integrated Sound Card for Computer Recording Support
USB Interface: Connect to Mac / PC
Built-In Rechargeable Battery
Smooth Rotary-Style Faders for Mic/USB/Line/Master Controls
Extremely Musical 2-Band EQ & Pan, on Each Channel
Combo Microphone Jack Connector – XLR and 3.5mm
RCA (L/R) Stereo Input and Output Connectors
2-TK RCA (L/R) Input Connectors
Voice Echo Effect/Delay Feature
Audio Signal CLIP LED Indicator Lights
Input Selection / Control Buttons
Independent Channel + MASTER Volume Controls
Independent Channel Balance/High + Low Frequency Adjustment
Used for Beginner & Professional Sound Applications
Universal Digital Audio File Compatibility

What’s in the Box:
Mixer Interface
USB Cable
Wall Adapter

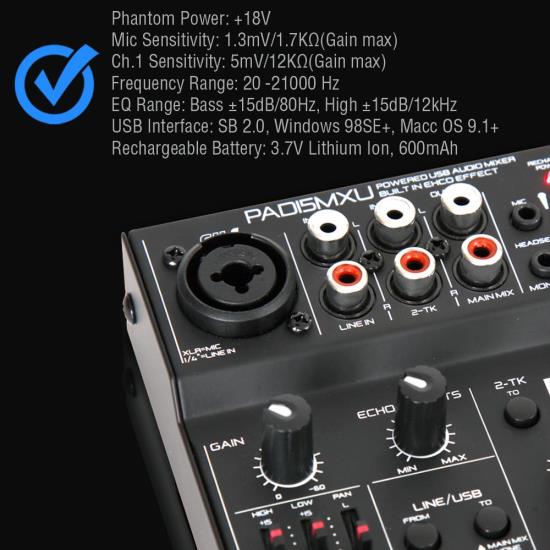

Technical Specs:
Phantom Power: +18V
Mic Sensitivity: 1.3mV/1.7KO(Gain max)
Ch.1 Sensitivity: 5mV/12KO(Gain max)
Ch. 2/3 Sensitivity: 260mV/16KO
2-TK: 300mV/22KO
Output Level: 5.8V max (MAIN; MONITOR)
Frequency Range: 20 -21000 Hz
T.H.D.: =0.05%
S/N Ratio: 81dB
EQ Range: Bass ±15dB/80Hz, High ±15dB/12kHz
Headphone impedance: =16O
USB Interface: SB 2.0, Windows 98SE+, Macc OS 9.1+
Rechargeable Battery: 3.7V Lithium Ion, 600mAh
Power Supply: USB, 5V/500mA (Type-B)

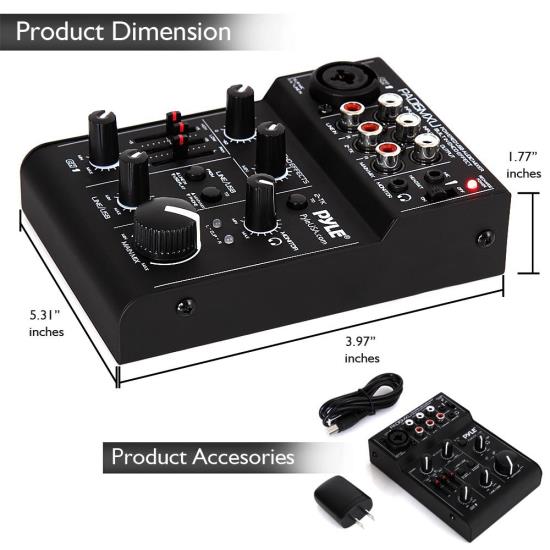

Dimensions (L x W x H): 3.97’’ x 5.31’’ x 1.77’’ - inches
