Pyle Pro PDWM2115 Wireless Microphone System
Pyle Pro PDWM2115 Wireless Microphone System
Low stock: 5 left
VHF Wireless Microphone Receiver System with Independent Volume Control Includes Handheld Microphone and Belt Pack Transmitter with Lavalier Microphone
VHF Narrow Band Receiver
Dual Frequency Design (Channel A/B)
High Signal/Noise Ratio Performance
Broad Frequency Response Range & Low Distortion
Independent Adjustable Volume Control
Volume Control Indicators and Status Signals
Audio Output Jacks
Dual Independent Channel Antennas
RF Signal and AF Signal LED Indicators
Radio Frequency and Audio Frequency

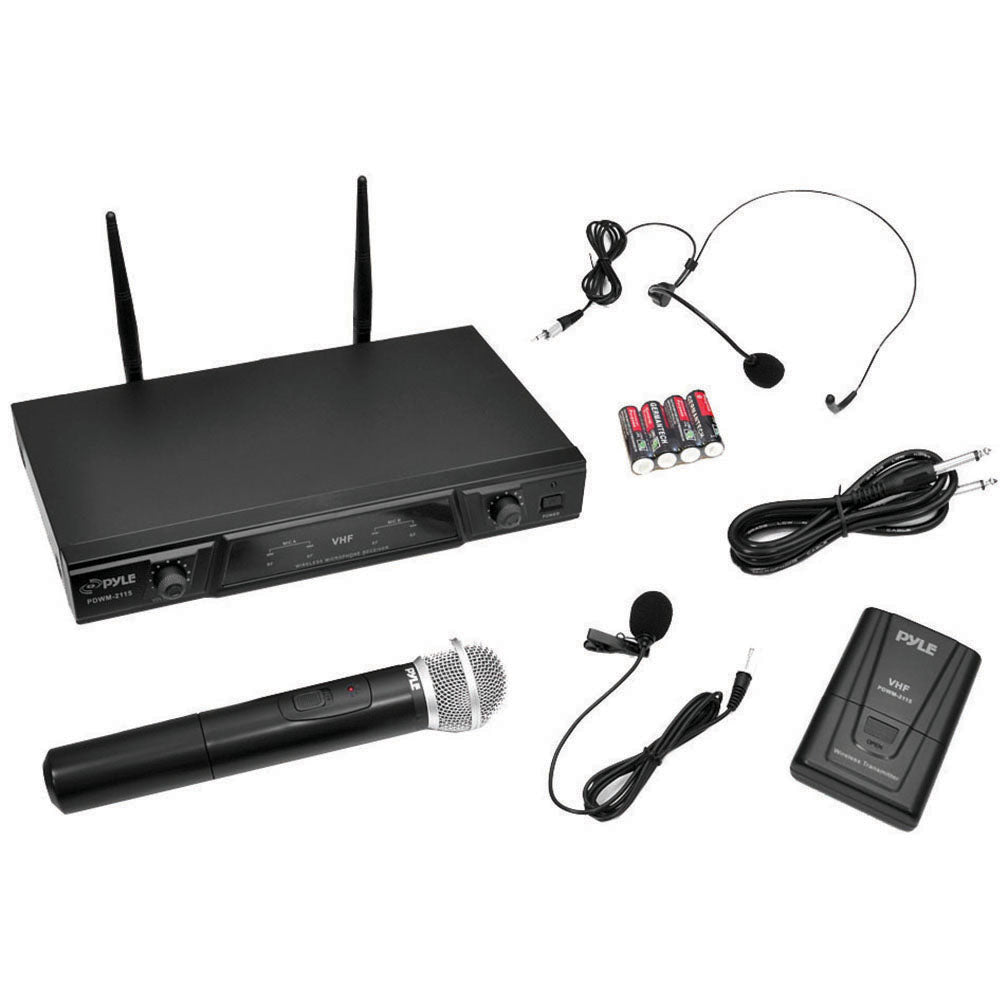

Includes Wireless Belt Pack Transmitter, Handheld & Lavalier Mics
RECEIVER SPECIFICATIONS:
Channel Frequency: 170-260MHz
Frequency Stability: ±0.002%
Sensitivity: -95dBm (S/N:12dB)
S/N Ratio: >70dB
RF Image Rejection:-75dB
Neighboring Channel / Interference: >70dB
Audio Dynamic Range:95dB
Frequency Response: 50Hz-15KHz±3dB
T.H.D: <1%
Operating Range: >50 meters
Power Source: AC 120V / 60Hz
Dimensions: 12.7" x 8.5" x 1.9"
TRANSMITTER SPECIFICATIONS:
Carrier Frequency:170-260MHz
Frequency Stability: ±0.002%
RF Power Output: >13dBm
Harmonic at higher Degree: <60dB
Modulation Degree: >30KHz
Modulation Pattern: FM
Power Current: <110mA
Battery Type: DC 3V
