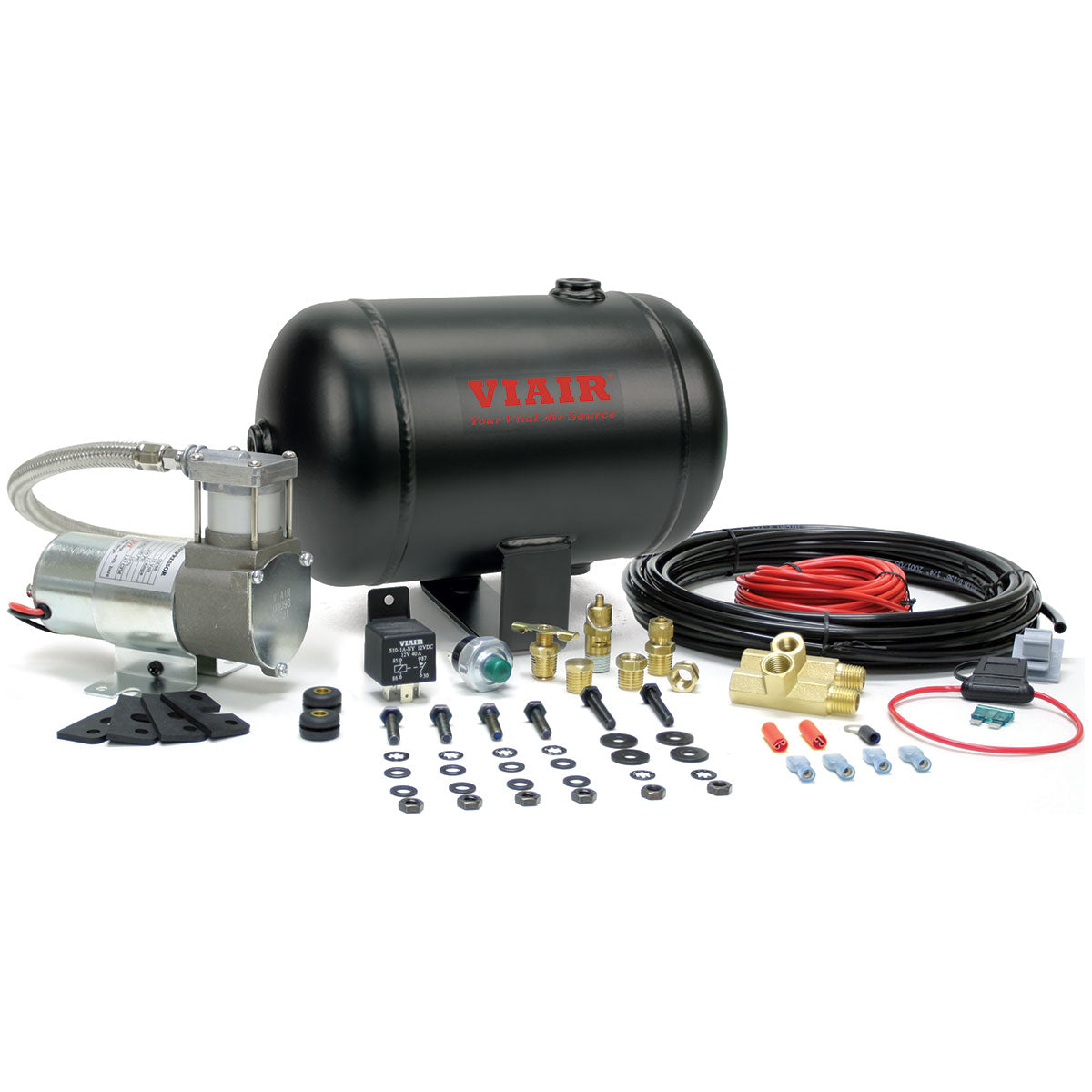

viair Ultra-light Duty Onboard Air System (12v, 105 Psi Compressor, 1.0 Gal. Tank, Ip54) Ce
ultra Light Duty Onboard Air System Can Be Used To Pressurize The Included 1.0 Gallon Air Tank For Air Horn Use, Air Lockers, And A Host Of Other Light Duty Pneumatic Needs. While Not Intended For Tire Inflation, This Onboard Air System Provides A Reliable Air Source In A Smaller Volume, And A Cost Effective Package.
105 Psi / 1.53 Cfm

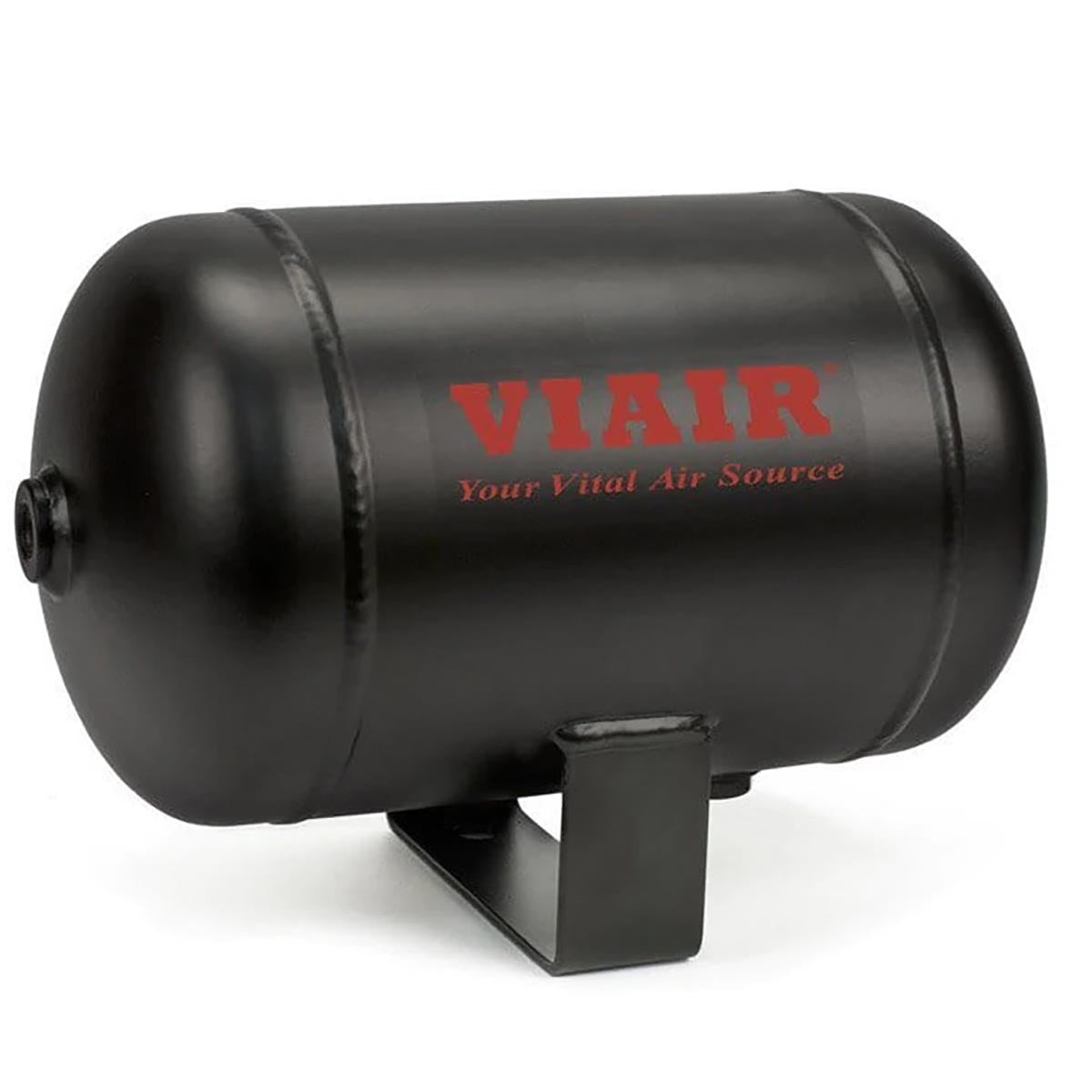

1.0 Gallon Viair Air Tank

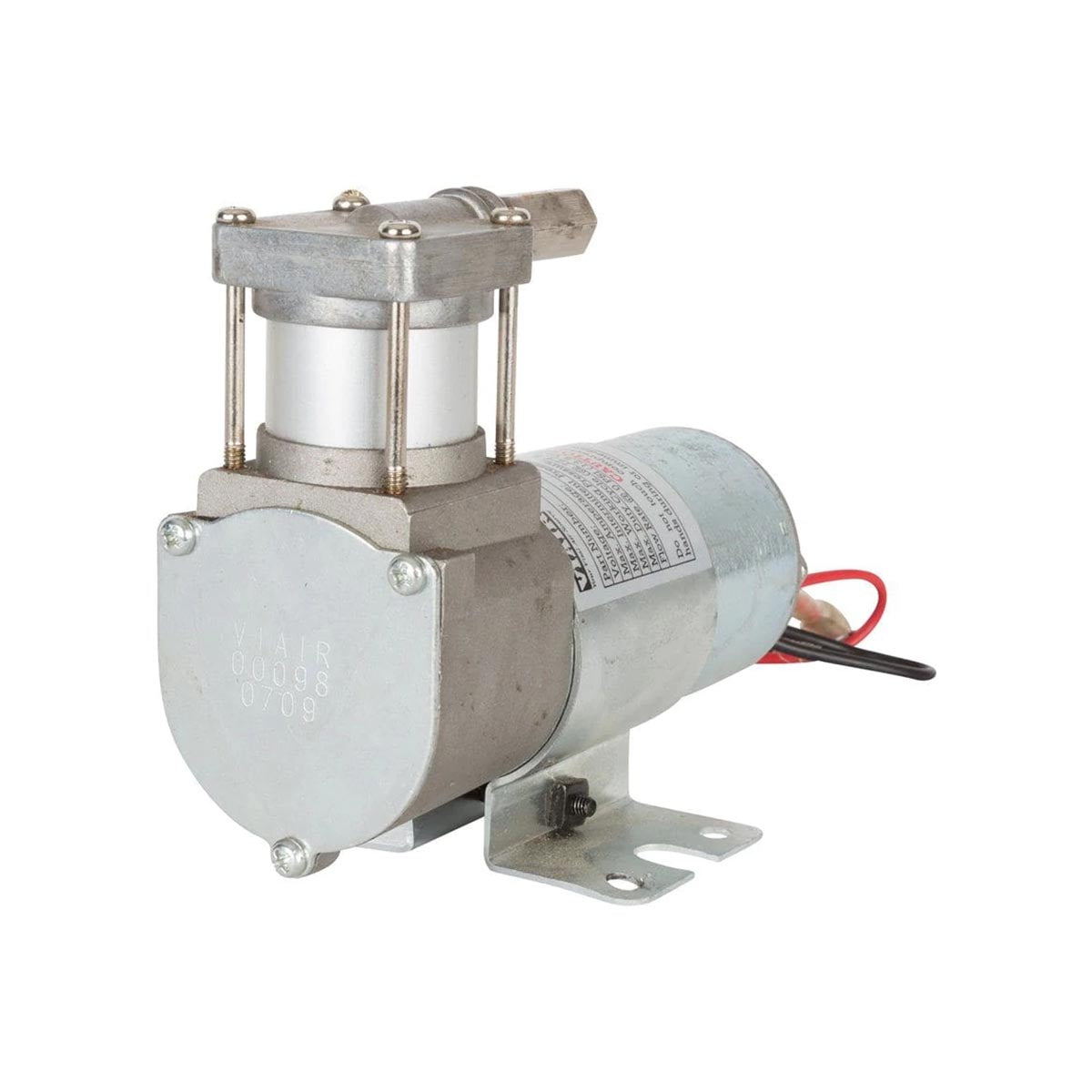

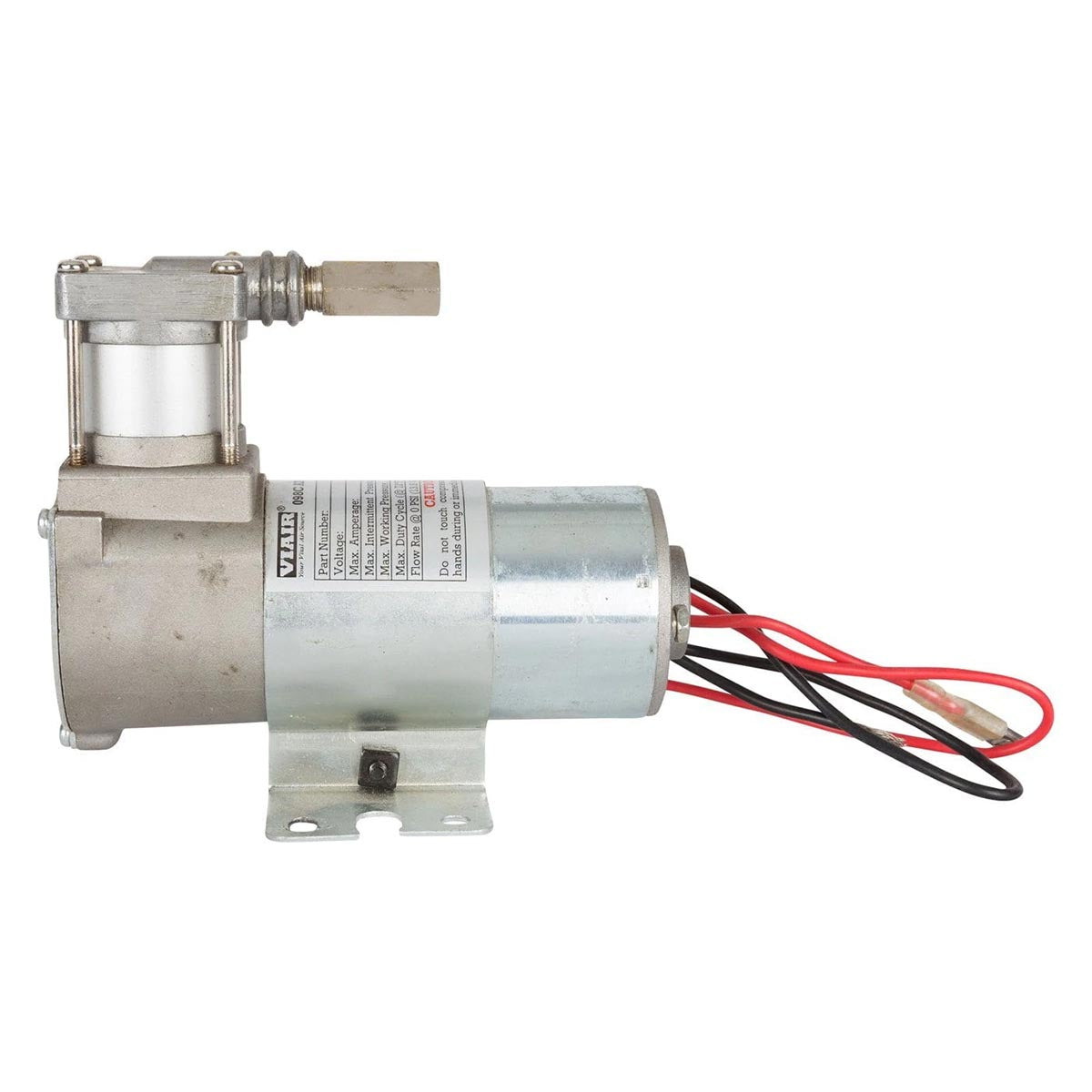

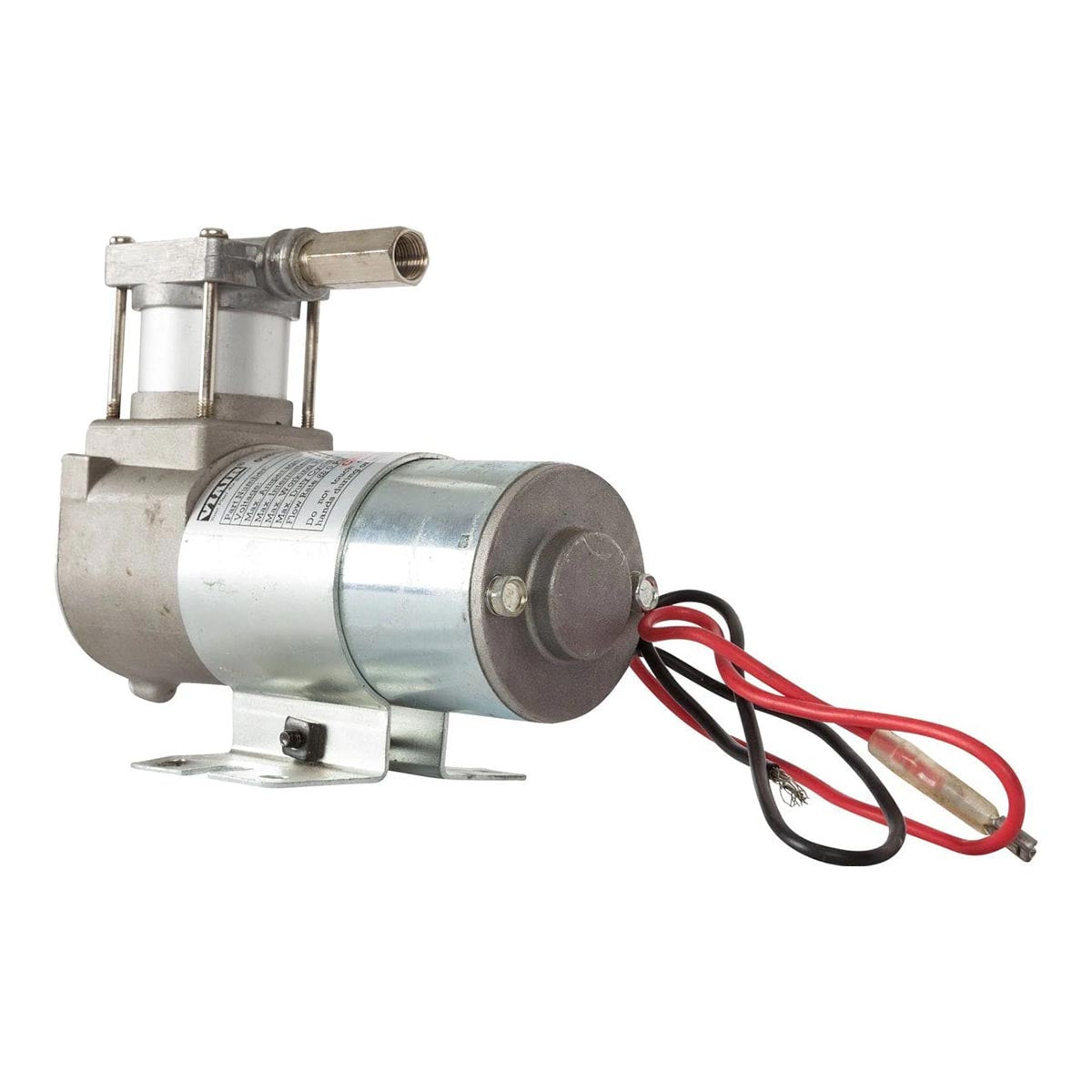

98c Viair Air Compressor
Omega Bracket With Mounting Hardware
Pressure Switch (85 Psi On, 105 Psi Off)
40-amp Relay
145 Psi Safety Valve
T-fitting: 1/4” (m) X 1/4? (f) X 1/8” (f)
T-fitting: 1/4” (m) X 1/4? (f) X 1/4” (f)
1/4” Drain Cock
1/4” Compression Fitting
1/4” Plug (m)
(2) 1/4” (m) Npt To 1/8” (f) Bsp
20ft. 16 Gauge Wire With Inline Fuse Holder
Accessory Airline
Electrical Connections
12-volt
Permanent Magnetic Motor
Duty Cycle: 10% @ 100 Psi
Max. Working Pressure: 105 Psi
Max. Amp Draw: 13-amps
Ingress Protection Rating: Ip54
