viair Constant Duty Onboard Air System (12v, 150 Psi Compressor, 2.5 Gal. Tank) Ce

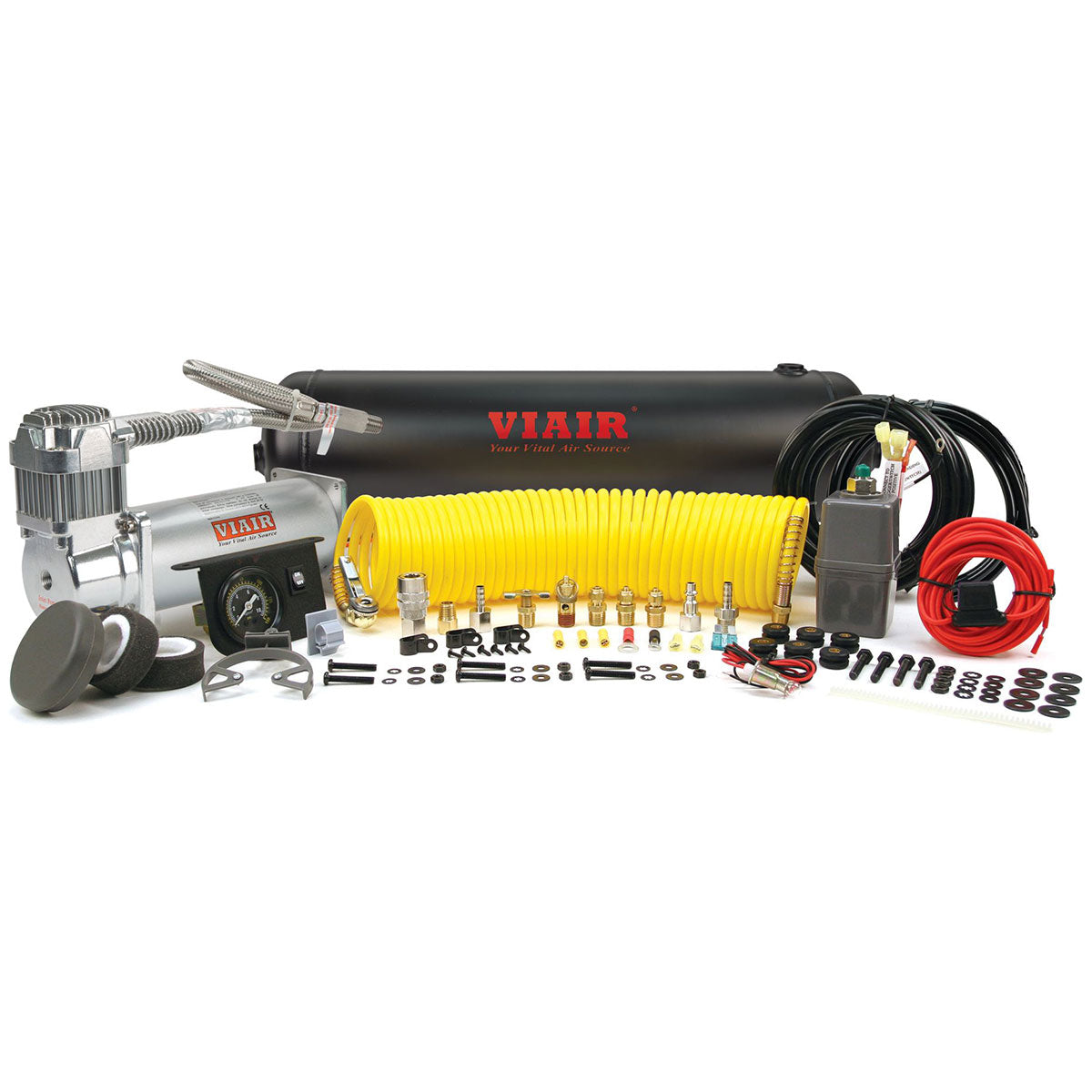

viair’s Constant Duty Onboard Air System Is A Pre-packaged Compressed Air Solution That Provides A 100% Duty Cycle Compressors, A 2.5 Gallon Air Tank, And All Components Needed To Install A Working System Capable Of Inflating Tires.
150 Psi / 1.80 Cfm

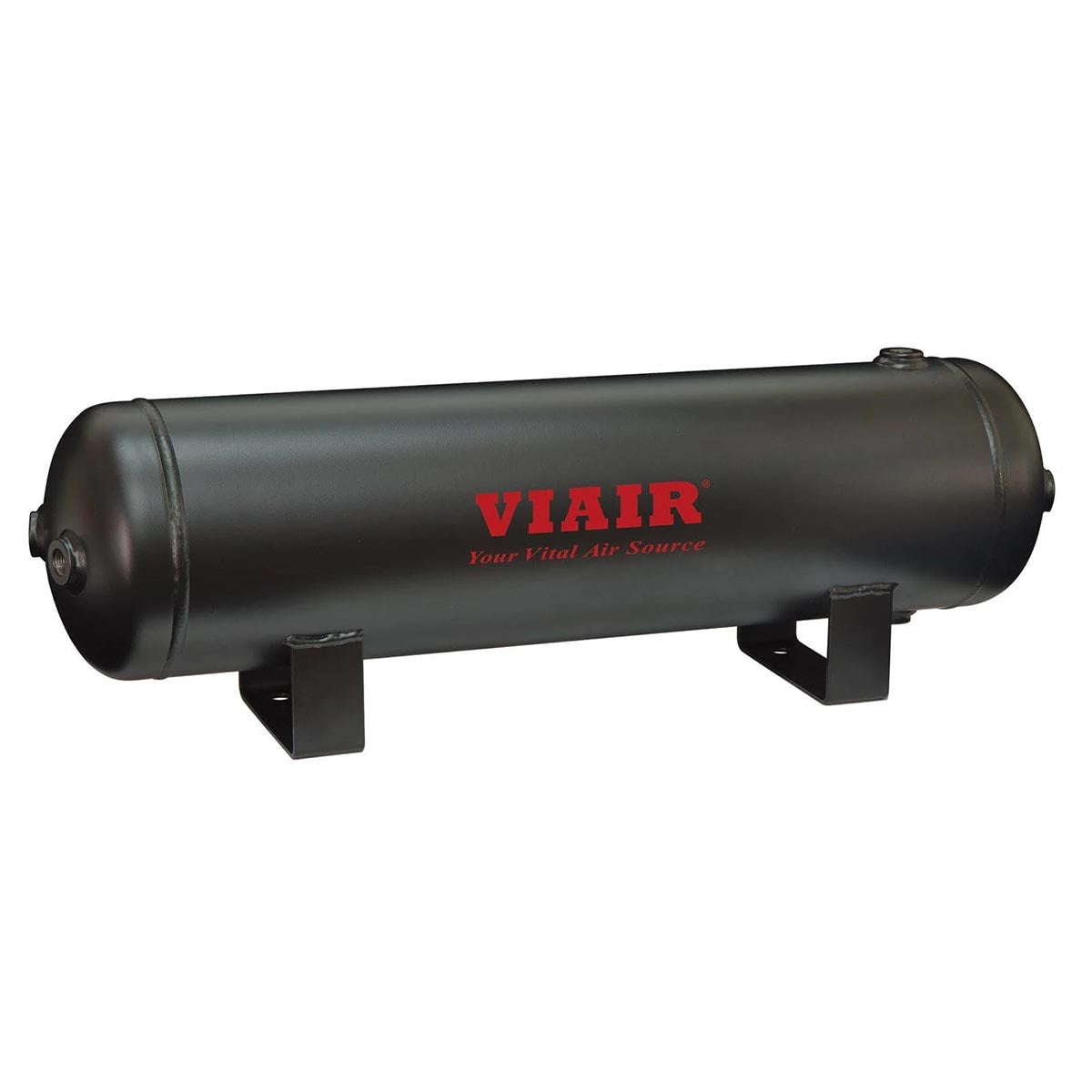

2.5 Gallon Viair Air Tank

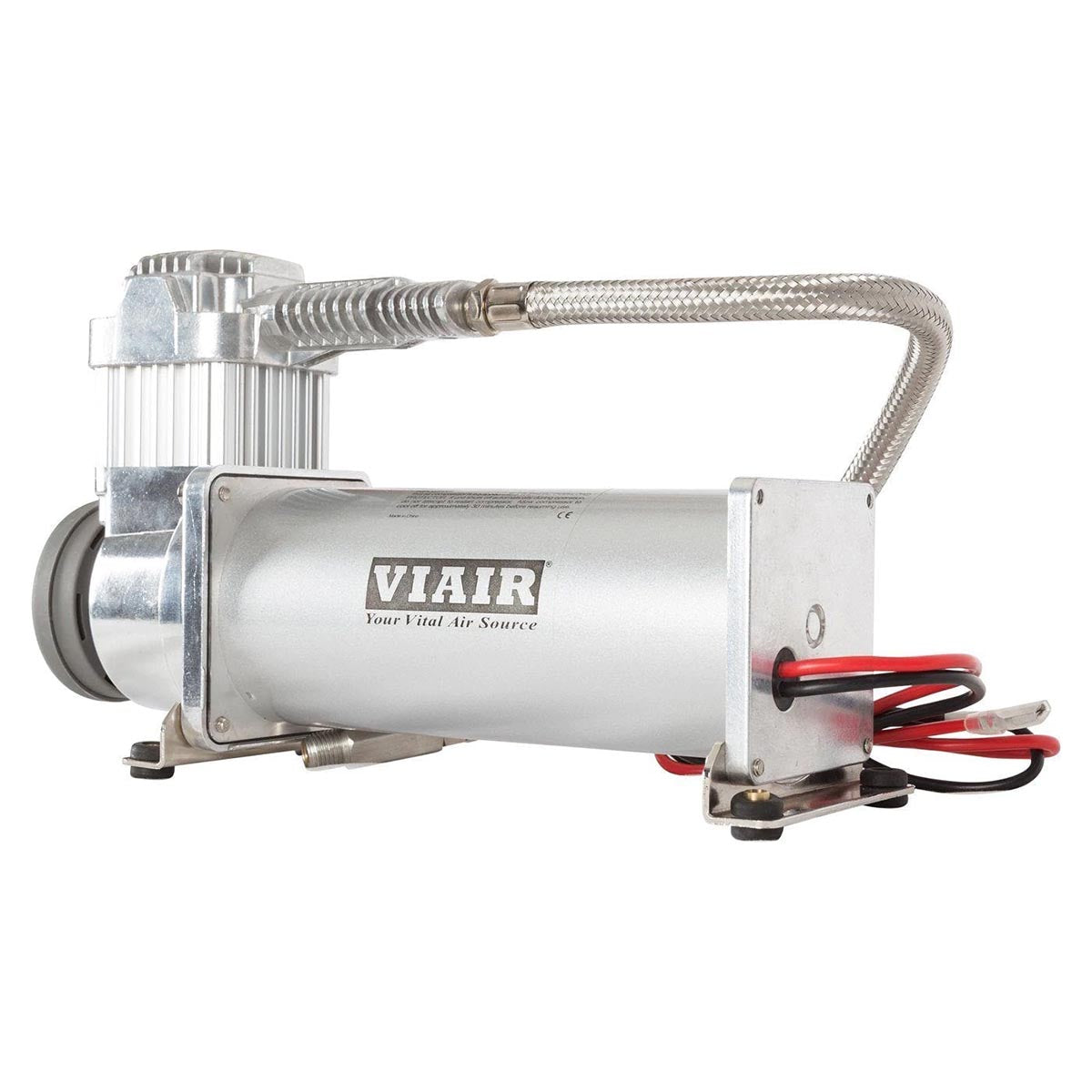

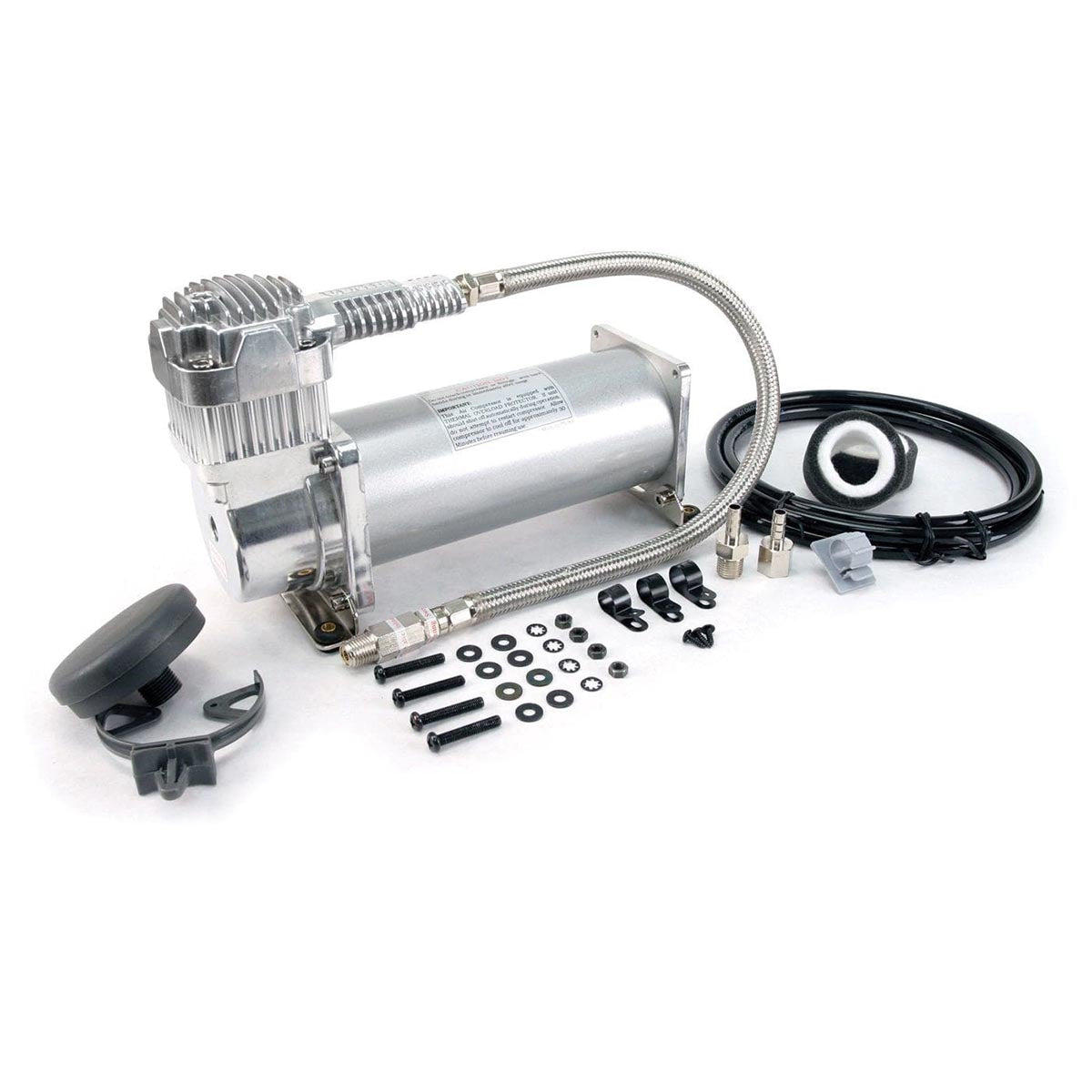

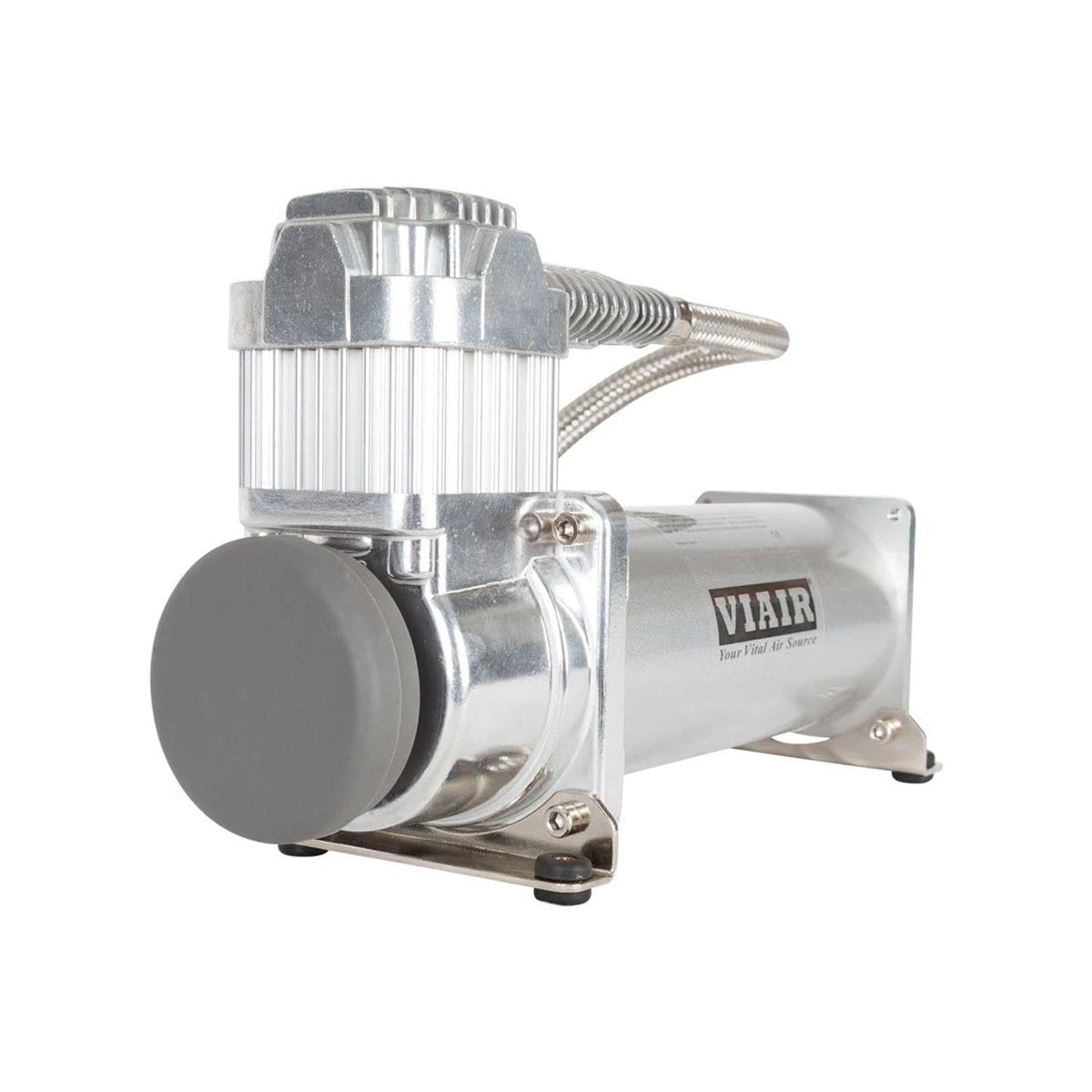

450c Viair Compressor With Thermal Overload Protector
35ft. Coil Hose With Tire Chuck
Dash Panel Gauge With On/off Switch
Pressure Switch With Relay (110 Psi On, 145 Psi Off)
Reducer: 1/8” (f) To 1/4” (m)
1/4” Quick Connect Stud (f)
1/4” Quick Connect Coupler (f)
1/4” 175 Psi Safety Valve
1/4” Drain Cock
(3) 1/4” Compression Fittings
20ft. 12-gauge Wire With Inline Fuse Holder
4” Strip Of Continuous Grommet Material
Accessory Airline
Electrical Connections
12-volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 Psi
Max. Working Pressure: 150 Psi
Max. Amp Draw: 23-amps
Ingress Protection Rating: Ip67
