VIAIR

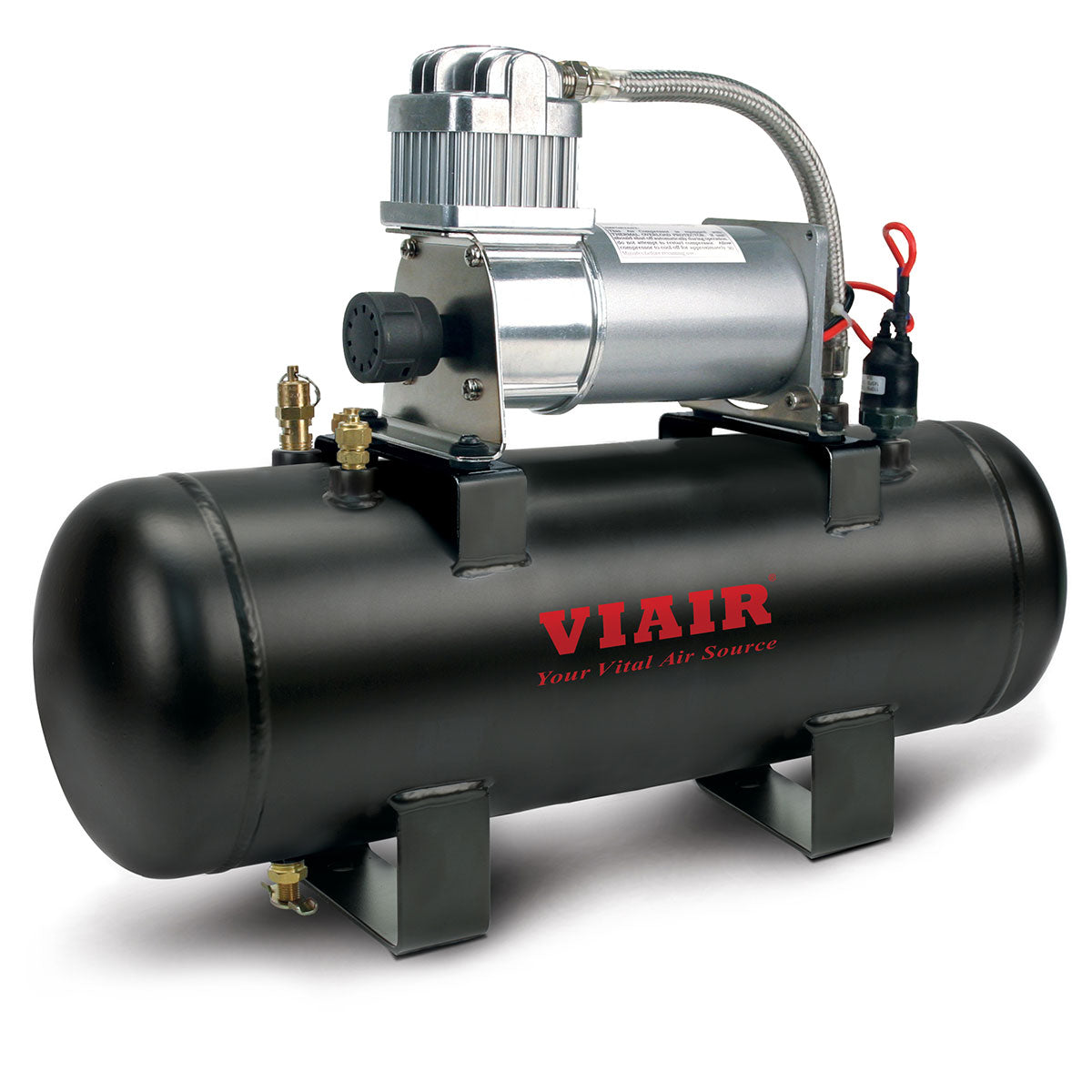

Viair 20005 150 PSI High-Flow Air Source Kit Mounted on 2.5 Gallon Tank
Viair 20005 150 PSI High-Flow Air Source Kit Mounted on 2.5 Gallon Tank
Out of stock
Couldn't load pickup availability
viair 150 Psi High-flow Air Source Kit Mounted On 2.5 Gallon Tank (12v, 150 Psi Compressor)

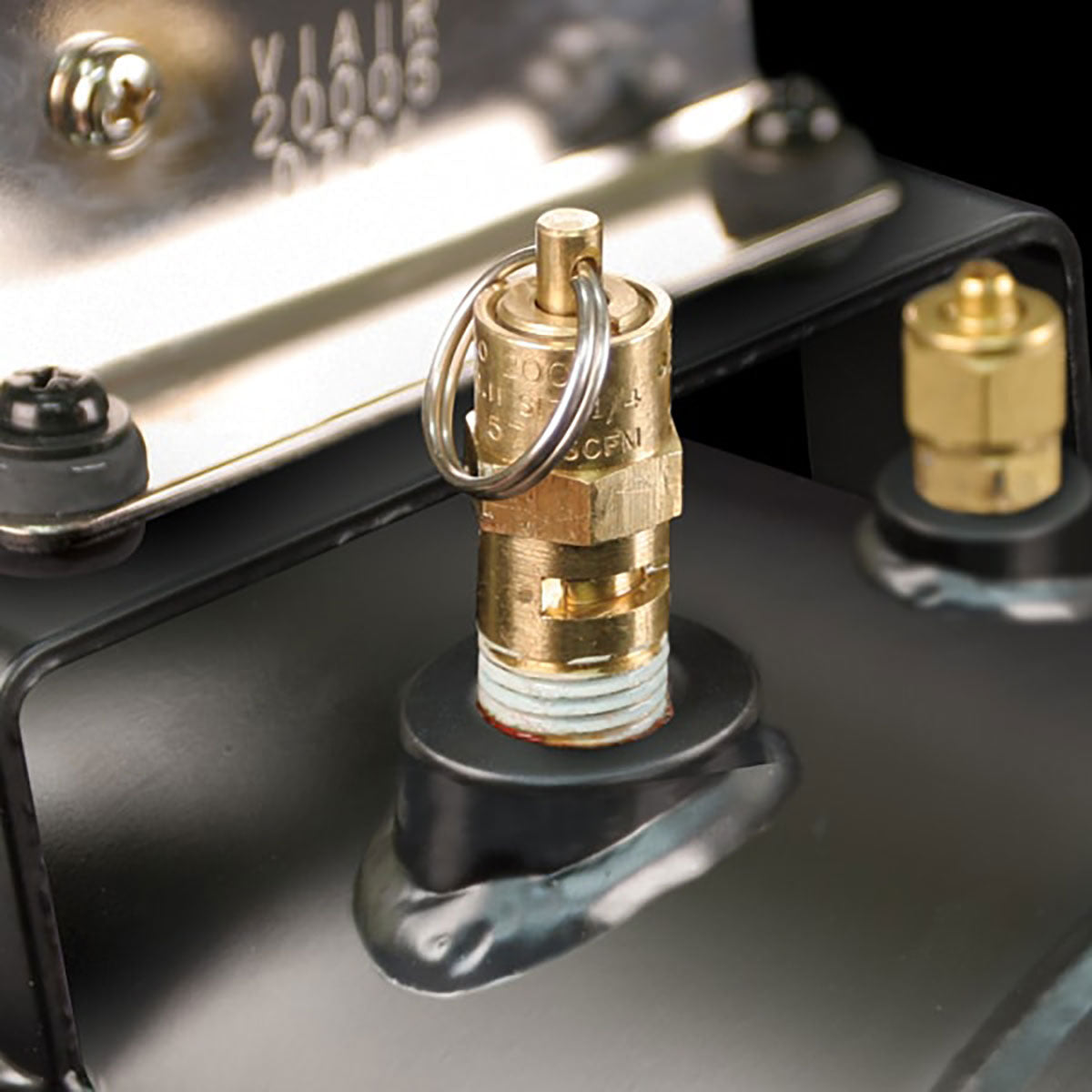

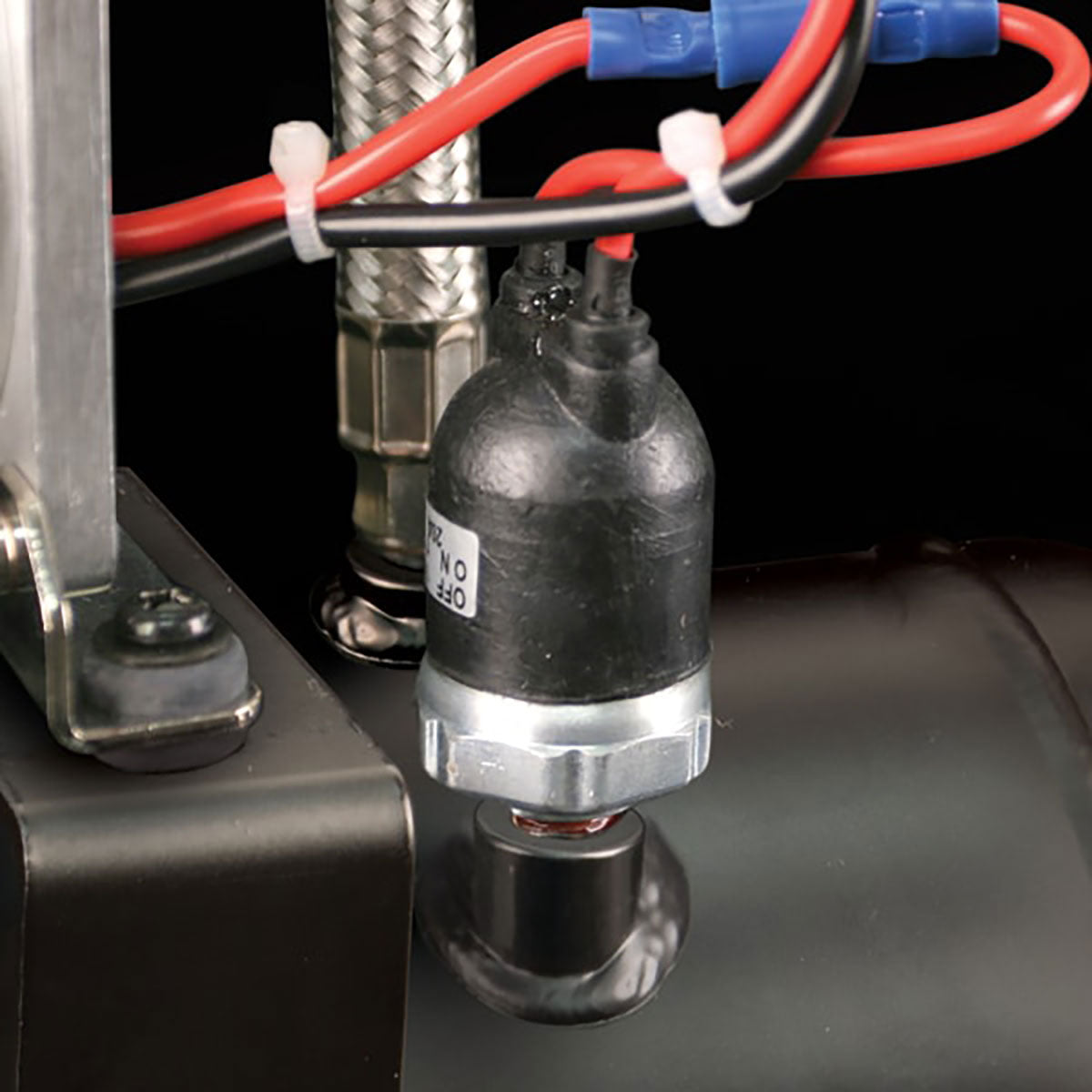

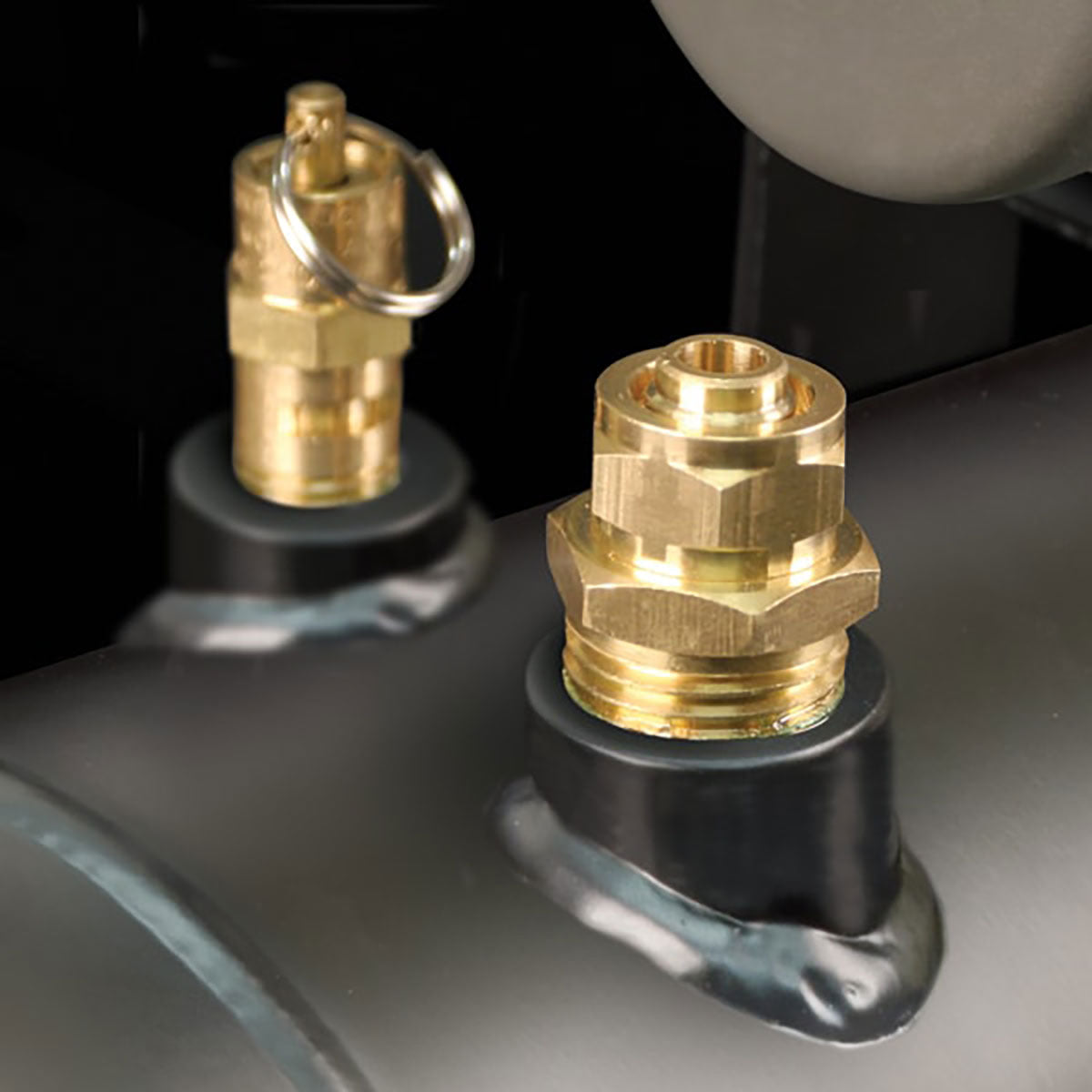

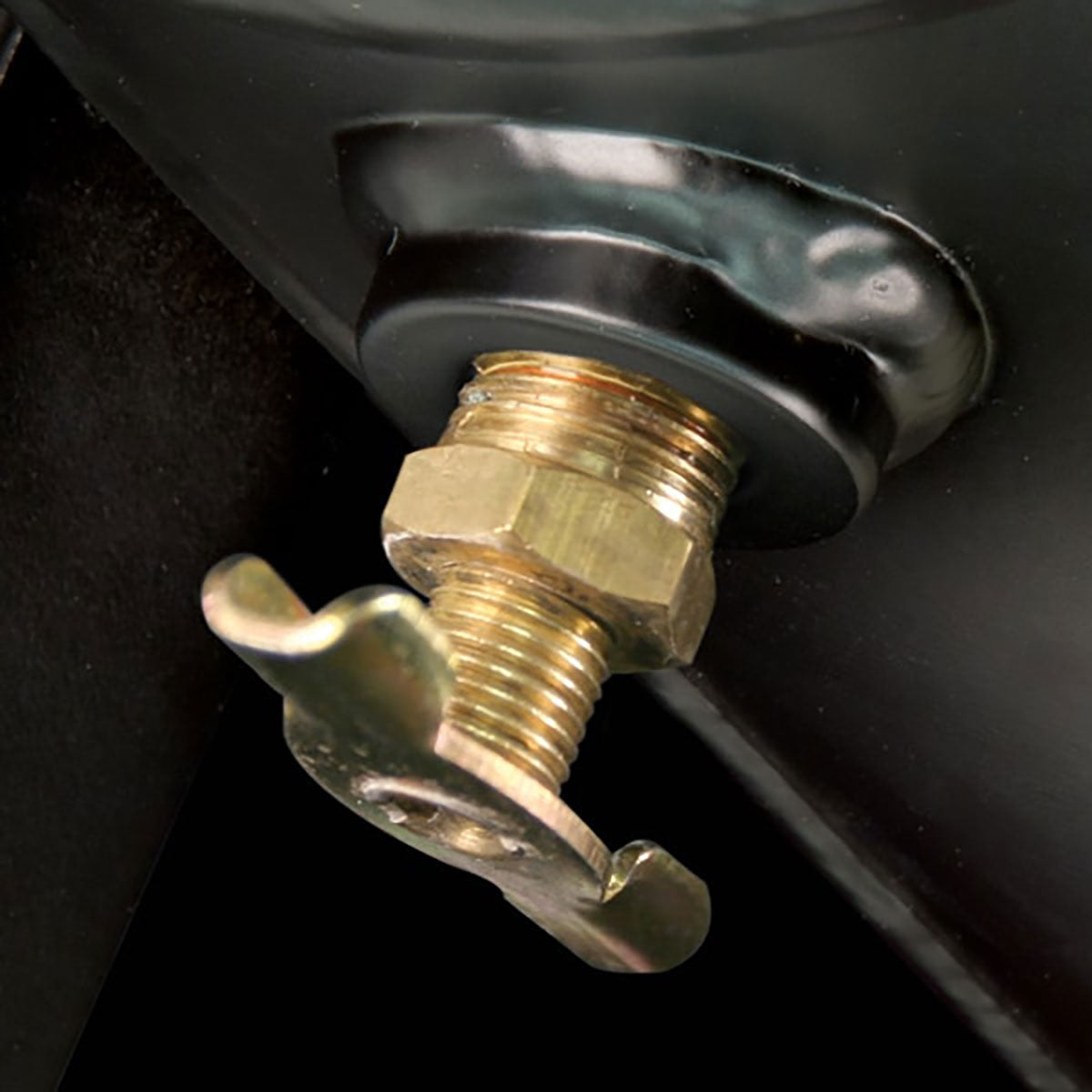

viair’s 150 Psi Air Source Kits Come With A Powerful, 30% Duty Cycle, 280c Viair Compressor Mounted On A 150 Psi-rated 2.0 Gallon Matte Black Air Tank With 5 Ports. All Air Source Kits Come With A Pre-wired Pressure Switch (110-150 Psi). The 150 Psi Air Source Kit Comes Complete With A 1/4? Npt Brass Drain Cock, 1/4? Npt Asme Coded And Certified Safety Valve, 1/2? Npt Port Compression Fitting For 3/8? (i.d.) Air Line Pre-installed. To Use, Simply Connect The Pressure Switch To Fused Power, Make A Solid Ground, And Connect An Air Line To The Compression Fitting. The Use Of A 40-amp Relay And An Appropriately-rated Fuse Is Strongly Recommended To Preserve The Life Of The Pressure Switch.
| 150 Psi / 1.59 Cfm 280c Pewter Air Compressor Thermal Overload Protector 2.0 Gallon Matte Black Air Tank Pressure Switch (110 Psi On / 145 Psi Off) Safety Valve (175 Psi) Drain Cock Leader Hose With Check Valve |
12-volt Permanent Magnetic Motor Duty Cycle: 30% @ 100 Psi Max. Working Pressure: 150 Psi Max. Amp Draw: 20 Amps Ingress Protection Rating: Ip54 |
dimensions: 18.9?l X 5.9?w X 13.7?h
Net Weight: 19.75 Lbs.
