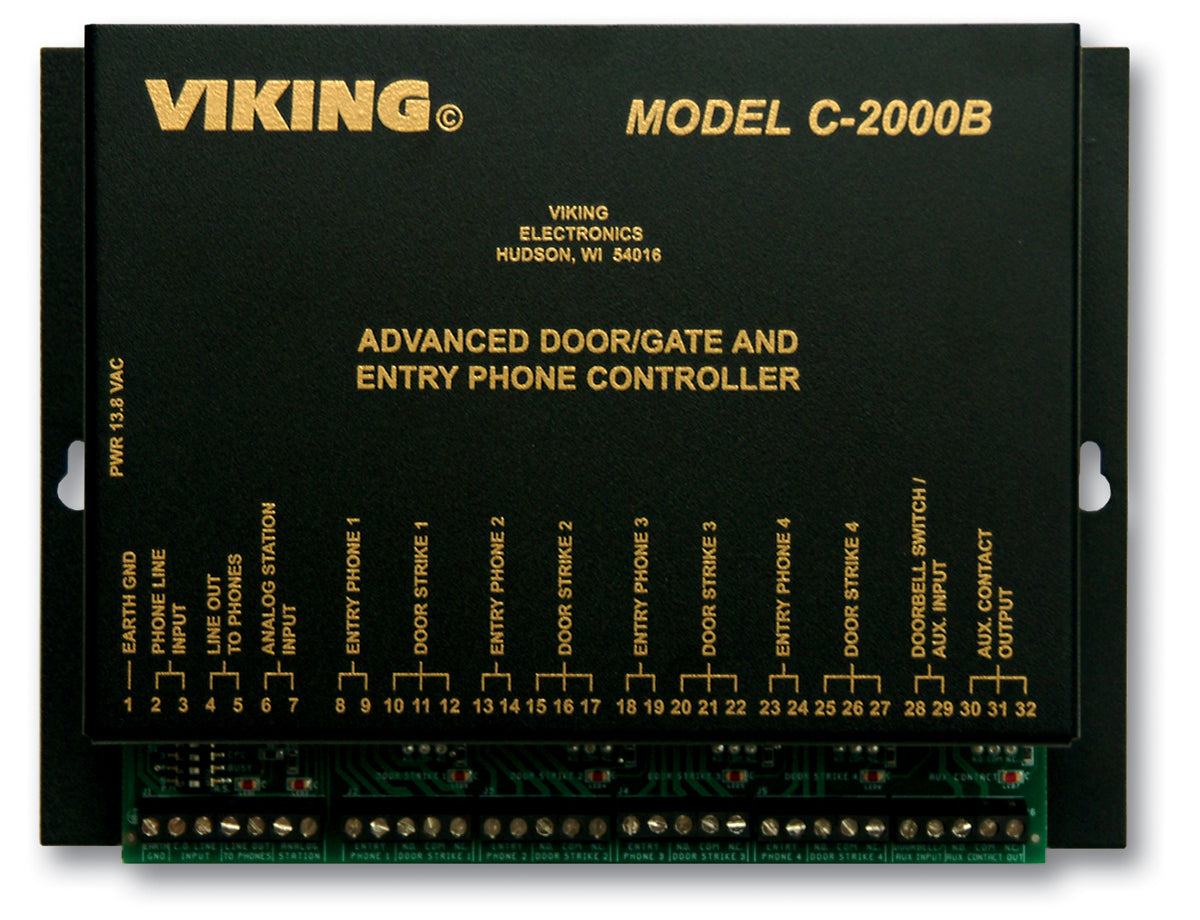

Viking Electronics C-2000B Viking C-2000B Door Entry Controller

Viking advanced door/gate entry phone controller
Allows 1-4 entry phones to share a single telephone line with a residential or business telephone system
Use with any analog touch tone phone
Provide entry phone activated chimes and whole house paging when used with an SLP-1 or SLP-4
Up to 6 different keyless entry codes / “one time use” keyless entry codes per entrance
Up to 6 master keyless entry codes for use at any entrance
Analog station mode allows the C-2000B to connect to an unused PABX station port
Optional “Privacy Number” allows only selected visitors to call from an entry phone
Provides “Caller ID” and “Call Waiting Caller ID”
Produces “Call Waiting” tones
Lighted doorbell switch input to activate entry phone call
One set of normally open and normally closed contacts available for each entry phone
Programmable contact activation time
Auxiliary input to activate timed auxiliary contacts
Power: 120VAC / 13.8VAC 1.25A, UL listed adapter provided
Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity
Relay Contacts: 5A @ 30VDC/250VAC
Ring Output: 8 REN, capable of ringing (16) 0.5 REN phones
Talk Battery: 40V DC
REN: 0.1A
Connections: (30) cage clamp screw terminals
VKC2000B
