Viking Electronics

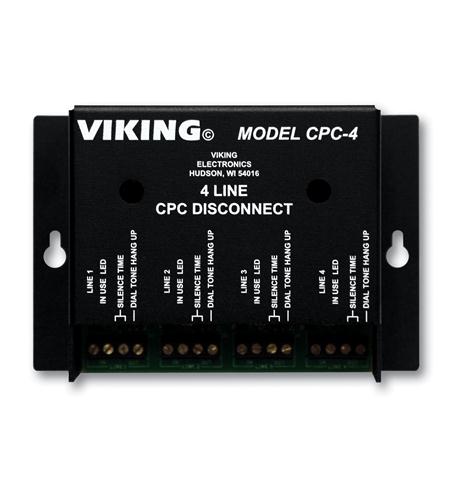

Viking electronics CPC-4 Generate Cpc Disconnect Signals

Viking electronics CPC-4 Generate Cpc Disconnect Signals

$325.48
$325.48
Sale Sold out
FREE Shipping

Out of stock
  • Viking calling party control - generate CPC disconnect signals on four separate phone lines
  • Phone line powered (no AC needed)
  • Handle 4 lines in 1 unit
  • Generates CPC disconnect on: Return to dial tone (programmable), Busy signal, Reorder (fast busy), Steady silence (programmable)
  • LED shows: In use, Audio detected, Generated CPC signal
  • Caller ID compatible
  • Power: Telephone line powered (20VDC, 20mA minimum)
  • Dimensions: 133mm x 89mm x 44mm (5.25" x 3.5" x 1.75")
  • Shipping Weight: 1.13Kg (2.5 lbs)
  • Environmental: 0° C to 32° C (32° F to 90° F) with 5% to 95% non-condensing humidity
  • CPC Disconnect Time: 1 second nominal
  • Connections: 4 position screw terminal block
  • VKCPC4
