Viking Electronics

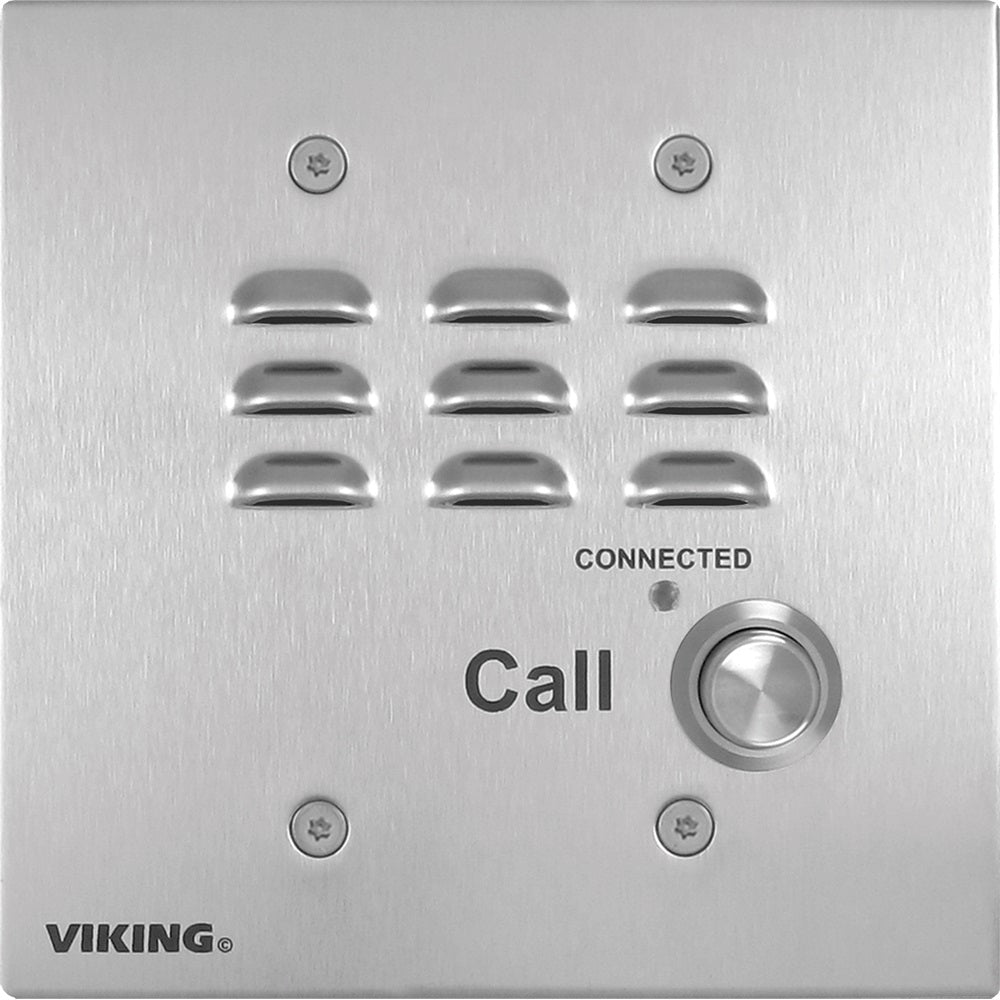

Viking Electronics E-32-IP-EWP (E-32-IP) with EWP
Viking Electronics E-32-IP-EWP (E-32-IP) with EWP
Regular price
$575.40
Regular price
Sale price
$575.40
Unit price
/
per
FREE Shipping
Out of stock
Couldn't load pickup availability
2 Amp relay contacts for door / gate or SL-2 Strobe Light (DOD 242) control
Blue “Call Connected” LED indicator
SIP compliant (see Product Manual for list of compatible IP-PBX phone systems)
PoE powered (class 1, <4 Watts)
Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
VoIP audio detection eliminates the need for “Push to Talk” mode
Handsfree operation
T-10 Torx security screws for added security
Laser etched graphics
Programmable to dial up to 5 numbers
Cycles through backup phone numbers on busy or ring-no-answer
Hangs up on busy signal, time-out or touch tone command
Programming software included
Network downloadable firmware
Remotely programmable
Diagnostics for testing mic, speaker, and relay
Flush mounts with a double gang electrical box
Extended temperature range: -40°F to 140°F (-40°C to 60°C)
Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating, see DOD 859
Power: PoE class 1 (<4 Watts)
Maximum Sound Pressure: 90dB SPL @ 1m
Dimensions: 5.0? x 5.0? x 2.25? (127mm x 127mm x 57mm)
Shipping Weight: 2.1 lbs (1.0 kg)
Operating Temperature: -40°F to 140°F (-40°C to 60°C)
Humidity: Up to 100%
Material: 14 gauge 316 stainless steel with #4 brushed finish
SPDT Relay Contact Rating: 2A @ 30VDC / 1A @ 125VAC, 250VAC maximum
Audio Codecs: G711u, G711a, G722
Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over
Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors
