Viking Electronics

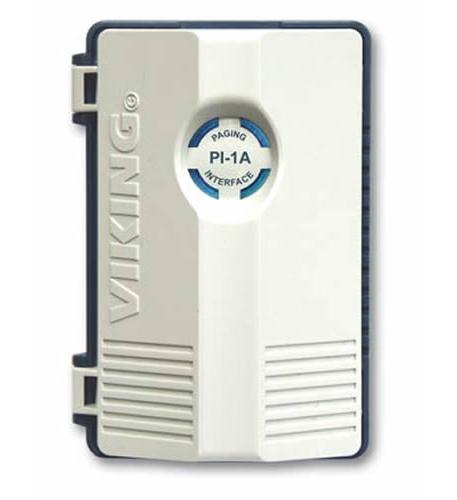

Viking electronics PI-1A Universal Telecom Paging

Viking electronics PI-1A Universal Telecom Paging

$126.89
$126.89
Sale Sold out
FREE Shipping

Out of stock
  • Integrate your public address system with nearly any phone system
  • Cut out background music during paging
  • Electronic night bell from ringing line or contact closure
  • Floating 600 ohm output
  • Selectable 22V DC talk battery for interfacing with unused phone system line input/trunk ports
  • Paging port interface
  • Ringing analog line input for night bell
  • Contact closure input for night bell
  • DPDT normally open and normally closed VOX activated contacts for cutting out background music
  • Adjustable VOX contact time-out
  • Adjustable VOX trigger sensitivity
  • Adjustable ring volume
  • Adjustable ring pitch
  • Power: 120V AC/12V DC 500mA, UL listed adapter provided
  • Dimensions: 111mm x 76mm x 36mm (4.38” x 2.97” x 1.38”)
  • Shipping Weight: .48 kg (1.06 lbs)
  • Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity
  • Relay Contacts: 30V DC@1A, 110V DC@0.3A, 125V AC @0.5
  • Maximum Ring Output: 490mV AC RMS no load, 150mV AC RMS@600 ohms
  • VOX Minimum Audio Signal to Activate Relay: 30mV AC RMS@1K Hz
  • Talk Battery: 22V DC
